AST055 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
TERM BLK 5POS SIDE ENTRY 5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Clamp Material - Plating | Wire Gauge [Min] | Wire Gauge [Max] | Number of Levels | Positions Per Level | Current | Features | Mating Orientation | Color | Pitch | Pitch | Mounting Type | Wire Termination | Voltage | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

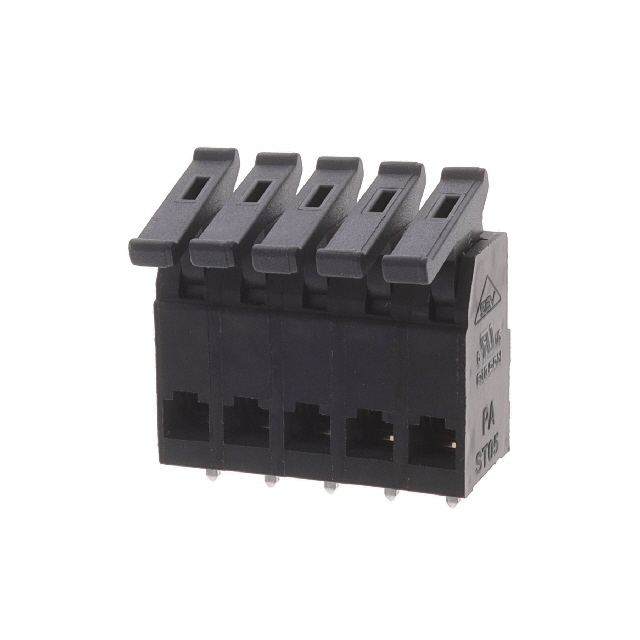

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Alloy - Tin Plated | Steel | 12 AWG | 28 AWG | 1 | 5 | 12 A | Lever Actuated | Horizontal with Board | Black | 0.197 in | 5 mm | Through Hole | Screwless - Spring Cage Tension Clamp | 300 VDC | |

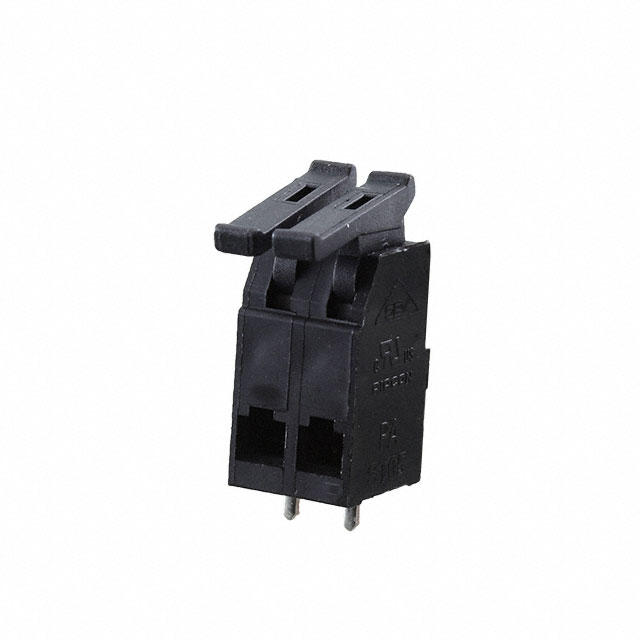

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Alloy - Tin Plated | Steel | 12 AWG | 28 AWG | 1 | 2 | 12 A | Lever Actuated | Horizontal with Board | Black | 0.197 in | 5 mm | Through Hole | Screwless - Spring Cage Tension Clamp | 300 VDC | |
 METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Alloy - Tin Plated | Steel | 12 AWG | 28 AWG | 1 | 9 | 12 A | Lever Actuated | Horizontal with Board | Black | 0.197 in | 5 mm | Through Hole | Screwless - Spring Cage Tension Clamp | 300 VDC | |

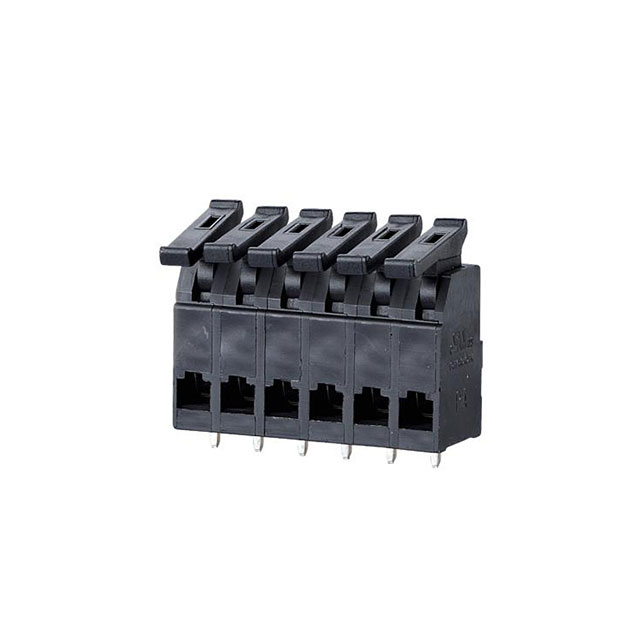

METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Alloy - Tin Plated | Steel | 12 AWG | 28 AWG | 1 | 6 | 12 A | Lever Actuated | Horizontal with Board | Black | 0.197 in | 5 mm | Through Hole | Screwless - Spring Cage Tension Clamp | 300 VDC | |
METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Alloy - Tin Plated | Steel | 12 AWG | 28 AWG | 1 | 16 | 12 A | Lever Actuated | Horizontal with Board | Black | 0.197 in | 5 mm | Through Hole | Screwless - Spring Cage Tension Clamp | 300 VDC | |
METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Alloy - Tin Plated | Steel | 12 AWG | 28 AWG | 1 | 22 | 12 A | Lever Actuated | Horizontal with Board | Black | 0.197 in | 5 mm | Through Hole | Screwless - Spring Cage Tension Clamp | 300 VDC | |
METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Alloy - Tin Plated | Steel | 12 AWG | 28 AWG | 1 | 12 A | Lever Actuated | Horizontal with Board | Black | 0.197 in | 5 mm | Through Hole | Screwless - Spring Cage Tension Clamp | 300 VDC | 24 | |

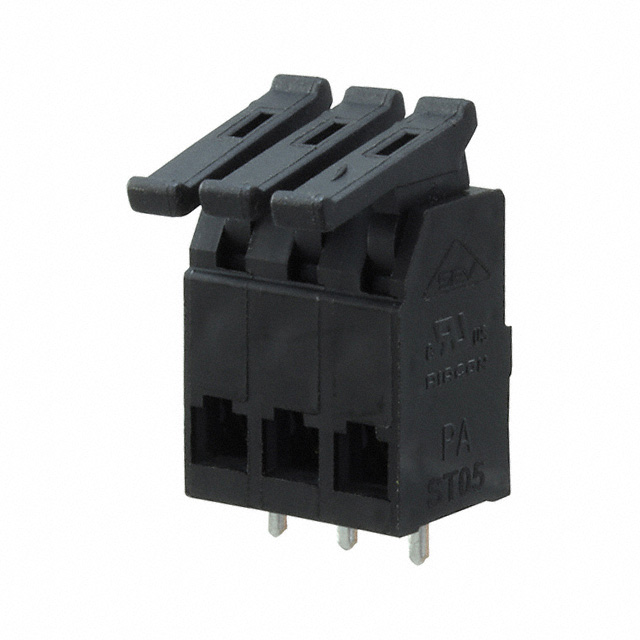

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Alloy - Tin Plated | Steel | 12 AWG | 28 AWG | 1 | 3 | 12 A | Lever Actuated | Horizontal with Board | Black | 0.197 in | 5 mm | Through Hole | Screwless - Spring Cage Tension Clamp | 300 VDC | |

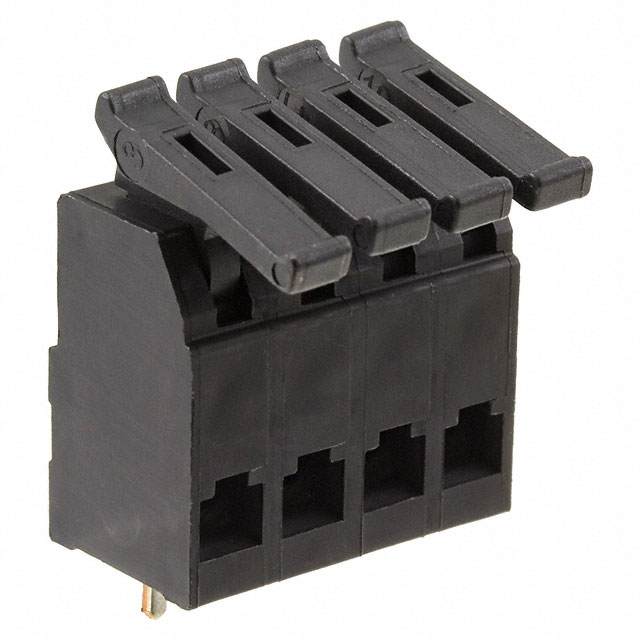

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Alloy - Tin Plated | Steel | 12 AWG | 28 AWG | 1 | 4 | 12 A | Lever Actuated | Horizontal with Board | Black | 0.197 in | 5 mm | Through Hole | Screwless - Spring Cage Tension Clamp | 300 VDC | |
METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Alloy - Tin Plated | Steel | 12 AWG | 28 AWG | 1 | 10 | 12 A | Lever Actuated | Horizontal with Board | Black | 0.197 in | 5 mm | Through Hole | Screwless - Spring Cage Tension Clamp | 300 VDC |
