PRO-IS Series

Catalog

INSIDE FLEXFOIL GSM/NB-IOT MHF4

Part	Termination	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Return Loss	Gain	Number of Bands	Applications	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Mounting Type	Antenna Type	Features	Features	Frequency (Center/Band)	VSWR	Height (Max) [z]	Height (Max) [z]	Termination	Frequency Group	Power - Max [Max]
Abracon LLC PRO-IS-590	I-PEX MHF4 IPEX MHF4	Cellular	2.17 GHz 960 MHz	1.71 GHz 791 MHz	-6 dB	5.5 dBi	2	EDGE GPRS GSM LTE UMTS	0.005 in	0.13 mm	Adhesive	PCB Trace	Cable	100 mm	1.94 GHz 875.5 MHz
Abracon LLC PRO-IS-583	I-PEX MHF4 IPEX MHF4	Cellular	1.99 GHz 960 MHz	1.71 GHz 868 MHz		3 dBi	2	GSM			Adhesive	PCB Trace	Cable	100 mm	1.85 GHz 914 MHz	4	0.031 in	0.8 mm

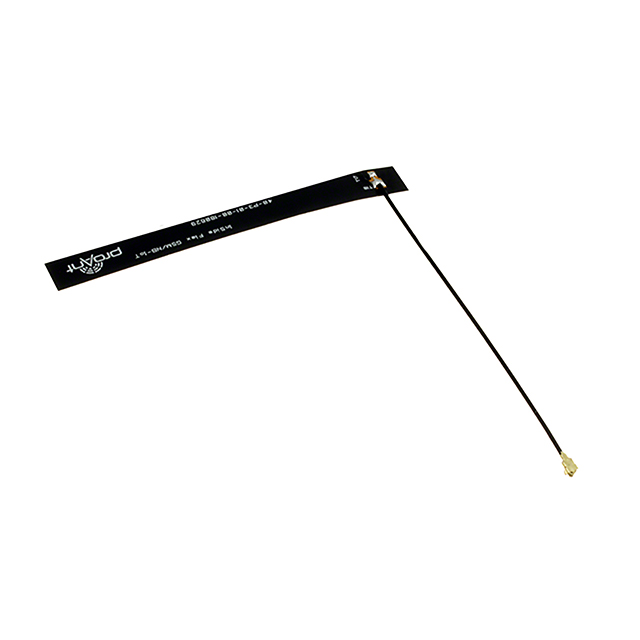

Abracon LLC PRO-IS-577	I-PEX MHF1 U.FL (UMCC)	Cellular	2.17 GHz 960 MHz	1.71 GHz 791 MHz	-6 dB	5.5 dBi	2	GSM	0.005 in	0.13 mm	Adhesive	PCB Trace	Cable	100 mm	1.94 GHz 875.5 MHz				IPEX MHF1	Wide Band

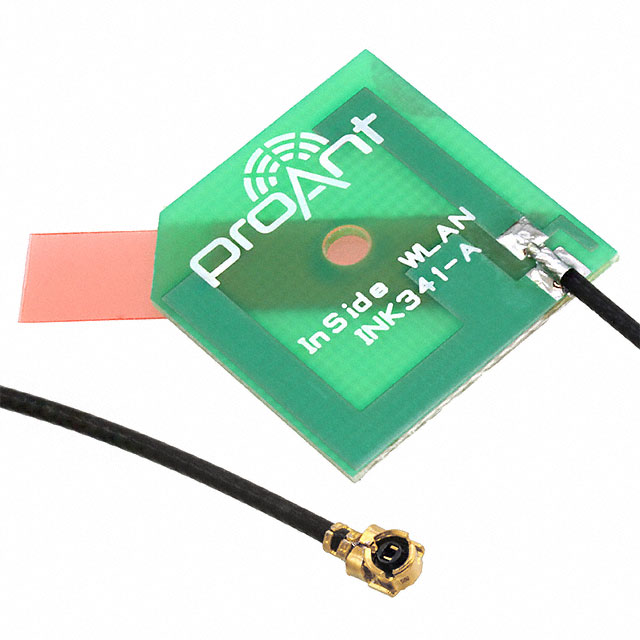

Abracon LLC PRO-IS-432	I-PEX MHF1 U.FL (UMCC)	WiFi	5.875 GHz 2485 MHz	2.4 GHz 5.18 GHz		3 dBi	2	WLAN	0.039 in	1 mm	Adhesive	PCB Trace	Cable	100 mm	2.4 GHz 5.5 GHz				IPEX MHF1	SHF UHF	3 W
Abracon LLC PRO-IS-578	I-PEX MHF4 IPEX MHF4		5.875 GHz 2485 MHz	2.4 GHz 5.15 GHz		3 dBi	2	Bluetooth ISM WLAN Zigbee™	0.039 in	1 mm	Adhesive	PCB Trace	Cable	100 mm	2.4425 GHz 5.5125 GHz	3				SHF UHF

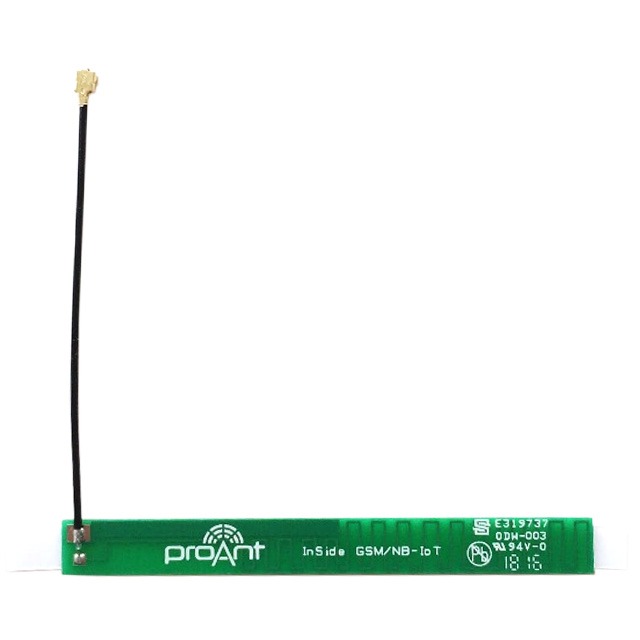

Abracon LLC PRO-IS-573	I-PEX MHF1 U.FL (UMCC)	Cellular	1.88 GHz 960 MHz	1.71 GHz 791 MHz	-4 dB 5 dB	4 dBi	2	GSM			Adhesive	PCB Trace			1.795 GHz 875.5 MHz		0.031 in	0.8 mm	IPEX MHF1

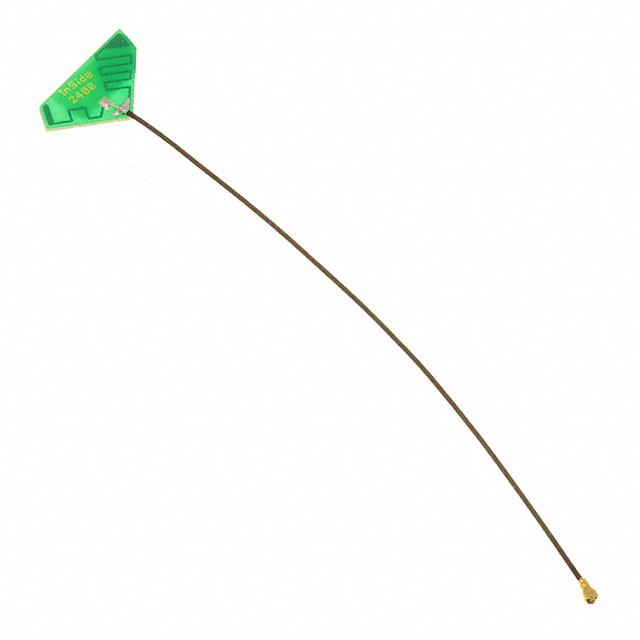

Abracon LLC PRO-IS-587	I-PEX MHF4 IPEX MHF4	General ISM	2485 MHz	2.4 GHz		3 dBi	1	ISM	0.039 in	1 mm	Adhesive	PCB Trace	Cable	100 mm	2.4425 GHz	2
