24PCCFA Series

Catalog

PRESSURE SENSOR, MINIATURE, SILICON, 0 PSI, 15 PSI, 12 V

Part	Maximum Pressure	Maximum Pressure	Applications	Mounting Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Pressure	Operating Pressure	Accuracy	Pressure Type	Output [Min]	Output	Output [Max]	Package / Case	Termination Style	Port Size	Port Size	Port Size	Output	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Supplier Device Package
Honeywell Sensing and Productivity Solutions 24PCCFA2G	45 PSI	310.26 kPa	Board Mount	Through Hole	Wheatstone Bridge	85 °C	-40 C	Barbless	10 VDC	12 V	15 PSI	103.42 kPa	1 %	Compound	0 mV	(10V)	225 mV	4-DIP Module	PC Pin	Male Tube	0.25 in	0.25 "

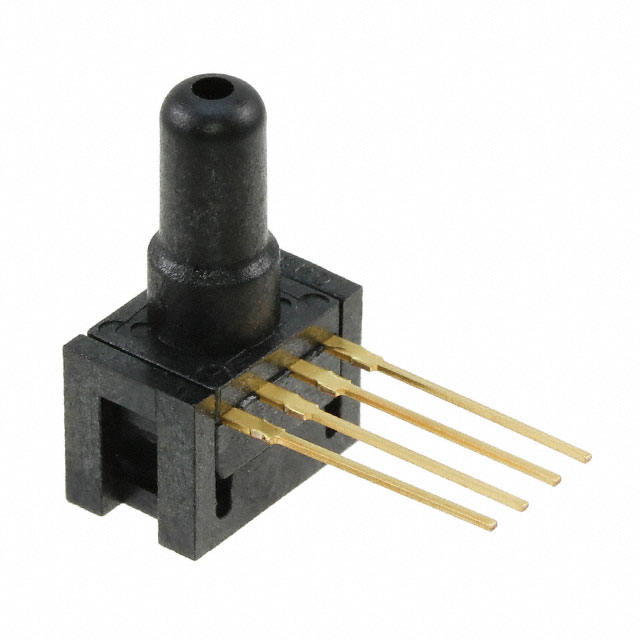

Honeywell Sensing and Productivity Solutions 24PCCFA6A			Board Mount	Through Hole	Wheatstone Bridge	85 °C	-40 C	Barbless	10 VDC	12 V			0.02 % FS		-200 mV		0 mV	4-SIP Module	PC Pin	Male Tube	5 mm	0.2 in	10 V	13.79 kPa	2 PSI	15 PSI	103.42 kPa
Honeywell Sensing and Productivity Solutions 24PCCFA3G	45 PSI	310.26 kPa	Board Mount	Through Hole	Wheatstone Bridge	85 °C	-40 C	Barbless	10 VDC	12 V	15 PSI	103.42 kPa	1 %	Compound	0 mV	(10V)	225 mV	4-SIP Module	PC Pin	Male Tube	5 mm	0.2 in						4-SIP
