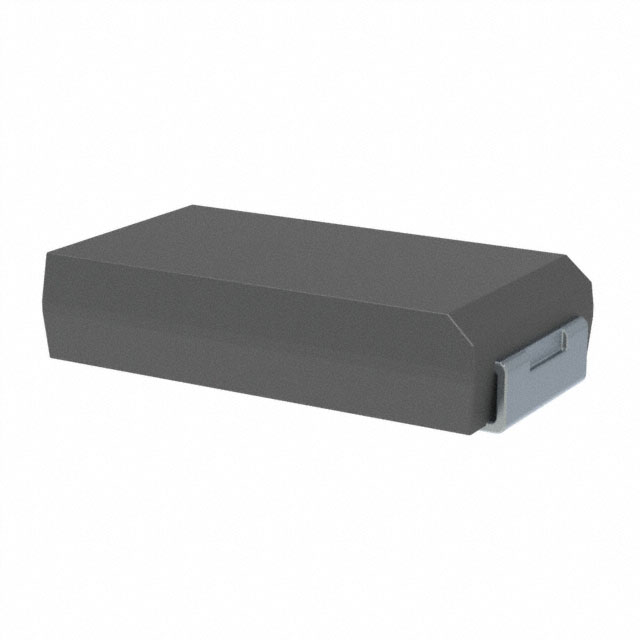

T520U Series

Manufacturer: KEMET

Catalog

CAP TANT POLY 150UF 6.3V 2312

Part	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Voltage - Rated	Tolerance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Features	Manufacturer Size Code	Capacitance
KEMET T520U157M006ATE055	Surface Mount	0.059 "	1.5 mm	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm	55 mOhm	6.3 VDC	20 %	2312 (6032 Metric)	-55 C	105 ░C	Molded	General Purpose	U	150 µF
KEMET T520U686M010ATE055	Surface Mount	0.059 "	1.5 mm	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm	55 mOhm	10 V	20 %	2312 (6032 Metric)	-55 C	105 ░C	Molded	General Purpose	U	68 µF
KEMET T520U476M010ATE055	Surface Mount	0.059 "	1.5 mm	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm	55 mOhm	10 V	20 %	2312 (6032 Metric)	-55 C	105 ░C	Molded	General Purpose	U	47 µF
KEMET T520U686M006ATE070	Surface Mount	0.059 "	1.5 mm	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm	70 mOhm	6.3 VDC	20 %	2312 (6032 Metric)	-55 C	105 ░C	Molded	General Purpose	U	68 µF

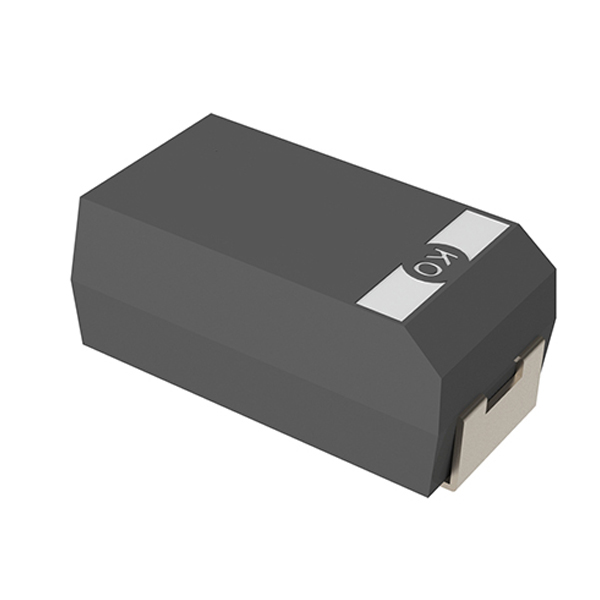

KEMET T520U686M006ATE055	Surface Mount	0.059 "	1.5 mm	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm	55 mOhm	6.3 VDC	20 %	2312 (6032 Metric)	-55 C	105 ░C	Molded	General Purpose	U	68 µF
KEMET T520U157M006ATE045	Surface Mount	0.059 "	1.5 mm	2000 Hrs	3.2 mm	0.126 in	0.236 in	6 mm	45 mOhm	6.3 VDC	20 %	2312 (6032 Metric)	-55 C	105 ░C	Molded	General Purpose	U	150 µF
