NPPC392 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 78POS 0.1 GOLD SMD

Part	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Material	Pitch - Mating	Pitch - Mating	Termination	Fastening Type	Contact Type	Voltage Rating	Contact Finish - Mating	Number of Positions	Number of Positions Loaded	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Connector Type	Insulation Height [z]	Insulation Height	Contact Finish Thickness - Mating	Current Rating (Amps)	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Mounting Type	Features	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height [z]	Contact Length - Post	Contact Length - Post

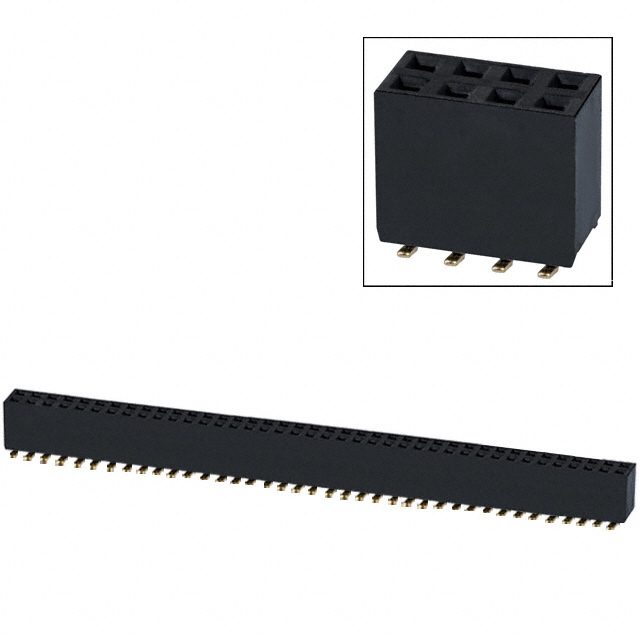

Sullins Connector Solutions NPPC392KFMS-RC	Square	Nylon 6T Polyamide (PA6T)	Flash	Phosphor Bronze	0.1 "	2.54 mm	Solder	Push-Pull	Female Socket	250 V	Gold	78	All	Black	125 °C	-40 C	Gold	Header	0.299 "	7.6 mm	Flash	3 A	UL94 V-0	0.1 in	2.54 mm	2	Surface Mount
Sullins Connector Solutions NPPC392KFMP-RC	Square	Nylon 6T Polyamide (PA6T)	Flash	Phosphor Bronze	0.1 "	2.54 mm	Solder	Push-Pull	Female Socket	250 V	Gold	78	All	Black	125 °C	-40 C	Gold	Header	0.299 "	7.6 mm	Flash	3 A	UL94 V-0	0.1 in	2.54 mm	2	Surface Mount	Board Guide
Sullins Connector Solutions NPPC392LFBN-RC	Square	Nylon 6T Polyamide (PA6T)	Flash	Phosphor Bronze	0.1 "	2.54 mm	Solder	Push-Pull	Female Socket	250 V	Gold	78	All	Black	105 ░C	-40 C	Gold	Header		8.51 mm	Flash	3 A	UL94 V-0	0.1 in	2.54 mm	2	Through Hole		0.126 "	3.2 mm	0.335 "
Sullins Connector Solutions NPPC392LJBN-RC	Square	Nylon 6T Polyamide (PA6T)	Flash	Phosphor Bronze	0.1 "	2.54 mm	Solder	Push-Pull	Female Socket	250 V	Gold	78	All	Black	105 ░C	-40 C	Gold	Header	0.2 in		Flash	3 A	UL94 V-0	0.1 in	2.54 mm	2	Right Angle Through Hole					5.08 mm	0.124 in	3.15 mm
