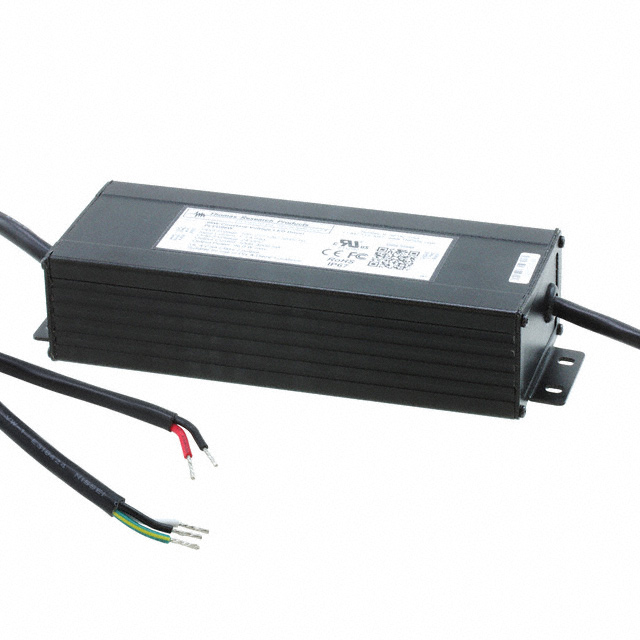

PLED96W Series

Catalog

LED DRIVER CC AC/DC 10-30V 3.15A

Part	Weight	Weight	Mounting Type	Voltage - Input (Min) [Min]	Topology	Ratings	Termination Style	Voltage - Output [Max]	Voltage - Output [Min]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Type	Current - Output (Max) [Max]	Number of Outputs	Power (Watts)	Features	Voltage - Input (Max) [Max]	Voltage - Output	Dimming

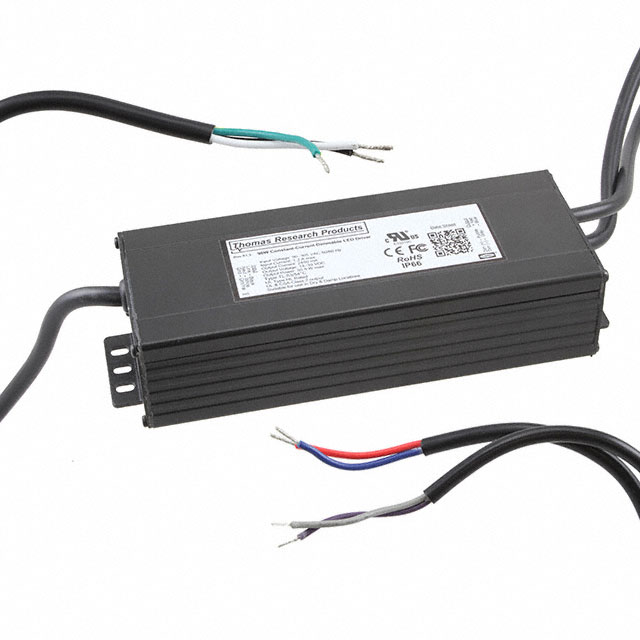

Thomas Research Products PLED96W-030-C3150	1.4 lbs	635 g	Chassis Mount	90 VAC	AC DC Converter	IP66 NEMA 6	Wire Leads	30 VDC	10 V	89 %	-30 ░C	65 °C	2.31 in	152 mm	58.8 mm	1.46 in	5.98 in	37 mm	CE cULus	Constant Current	3.15 A	1	96 W	OCP OVP SCP	305 VAC
Thomas Research Products PLED96W-034	1.4 lbs	635 g	Chassis Mount	90 VAC	AC DC Converter	IP66 NEMA 6	Wire Leads			89 %	-30 ░C	65 °C	2.31 in	152 mm	58.8 mm	1.46 in	5.98 in	37 mm	CE cULus	Constant Voltage	2.8 A	1	96 W	OCP OVP SCP	305 VAC	34 V
Thomas Research Products PLED96W-092-C1050-D	1.4 lbs	635 g	Chassis Mount	90 VAC	AC DC Converter	IP66 NEMA 6	Wire Leads	92 V	31 V	91 %	-30 ░C	65 °C	2.31 in	152 mm	58.8 mm	1.46 in	5.98 in	37 mm	CE cULus	Constant Current	1.05 A	1	96 W	OCP OVP SCP	305 VAC		Analog
