803-87 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 34POS 0.1 GOLD SMD

...

Part	Insulation Material	Contact Shape	Contact Material	Termination	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Type	Number of Rows [custom]	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Positions [custom]	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Length - Post	Contact Length - Post	Features	Insulation Height [z]	Insulation Height [z]
Preci-Dip 803-87-034-30-002101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Solder	Socket	0.1 in	2.54 mm	UL94 V-0	Surface Mount	Flash	Tin	Push-Pull	0.1 "	2.54 mm	Black	Female Socket	2	3 A	Gold	-55 C	125 °C	All	5.6 mm	0.22 in	34

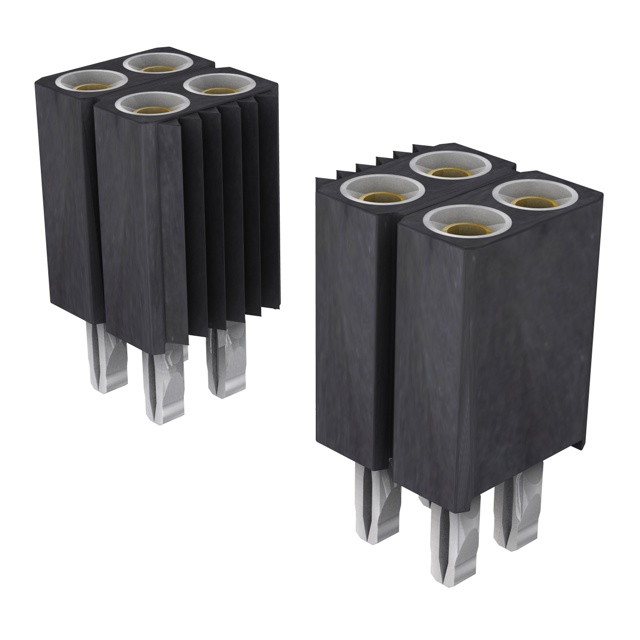

Preci-Dip 803-87-012-66-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Press-Fit Solder	Socket	0.1 in	2.54 mm	UL94 V-0	Through Hole	Flash	Tin	Push-Pull	0.1 "	2.54 mm	Black	Female Socket	2	3 A	Gold	-55 C	125 °C	All	7 mm	0.276 in		3.81 mm	0.15 in	12

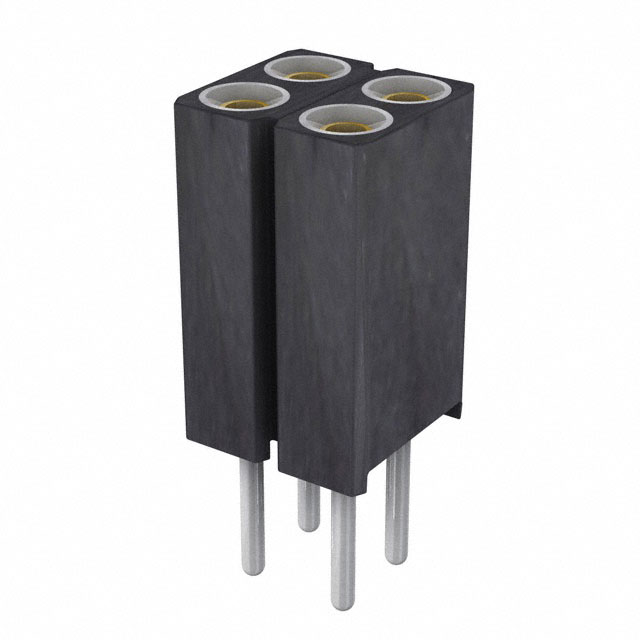

Preci-Dip 803-87-004-10-005101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Solder	Socket	0.1 in	2.54 mm	UL94 V-0	Through Hole	Flash	Tin	Push-Pull	0.1 "	2.54 mm	Black	Female Socket	2	3 A	Gold	-55 C	125 °C	All	8.51 mm	0.335 "				4	0.118 in	3 mm
Preci-Dip 803-87-008-30-002191	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Solder	Socket	0.1 in	2.54 mm	UL94 V-0	Surface Mount	Flash	Tin	Push-Pull	0.1 "	2.54 mm	Black	Female Socket	2	3 A	Gold	-55 C	125 °C	All	5.6 mm	0.22 in				8			Pick and Place
Preci-Dip 803-87-020-10-012101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Solder	Socket	0.1 in	2.54 mm	UL94 V-0	Through Hole	Flash	Tin	Push-Pull	0.1 "	2.54 mm	Black	Female Socket	2	3 A	Gold	-55 C	125 °C	All	4.2 mm	0.165 in				20	0.125 in	3.18 mm
Preci-Dip 803-87-014-10-012101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Solder	Socket	0.1 in	2.54 mm	UL94 V-0	Through Hole	Flash	Tin	Push-Pull	0.1 "	2.54 mm	Black	Female Socket	2	3 A	Gold	-55 C	125 °C	All	4.2 mm	0.165 in				14	0.125 in	3.18 mm

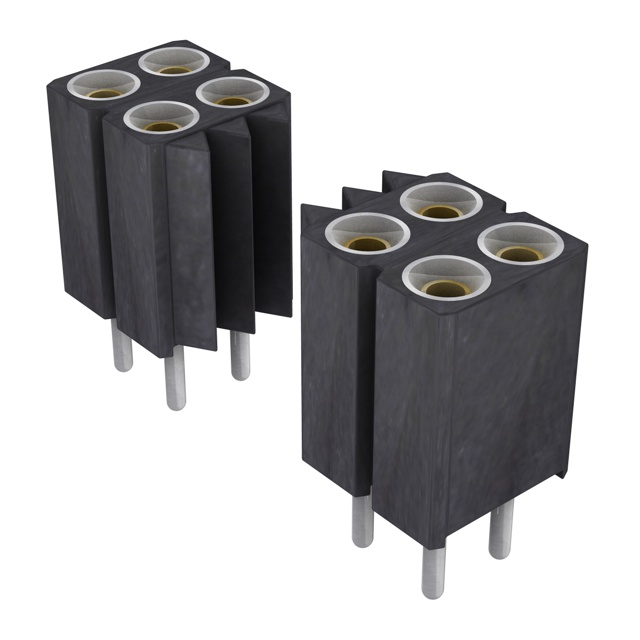

Preci-Dip 803-87-054-10-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Solder	Socket	0.1 in	2.54 mm	UL94 V-0	Through Hole	Flash	Tin	Push-Pull	0.1 "	2.54 mm	Black	Female Socket	2	3 A	Gold	-55 C	125 °C	All	7 mm	0.276 in				54	0.118 in	3 mm

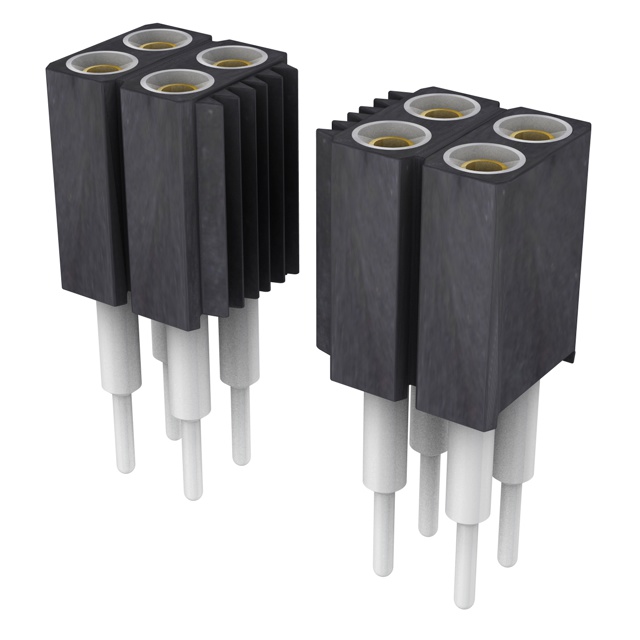

Preci-Dip 803-87-098-10-269101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Solder	Socket	0.1 in	2.54 mm	UL94 V-0	Through Hole	Flash	Tin	Push-Pull	0.1 "	2.54 mm	Black	Female Socket	2	3 A	Gold	-55 C	125 °C	All	11.05 mm	0.435 "				98	0.116 in	2.95 mm
Preci-Dip 803-87-070-20-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Solder	Socket	0.1 in	2.54 mm	UL94 V-0	Right Angle Through Hole	Flash	Tin	Push-Pull	0.1 "	2.54 mm	Black	Female Socket	2	3 A	Gold	-55 C	125 °C	All				3.2 mm	0.126 "	70				0.2 in	5.08 mm

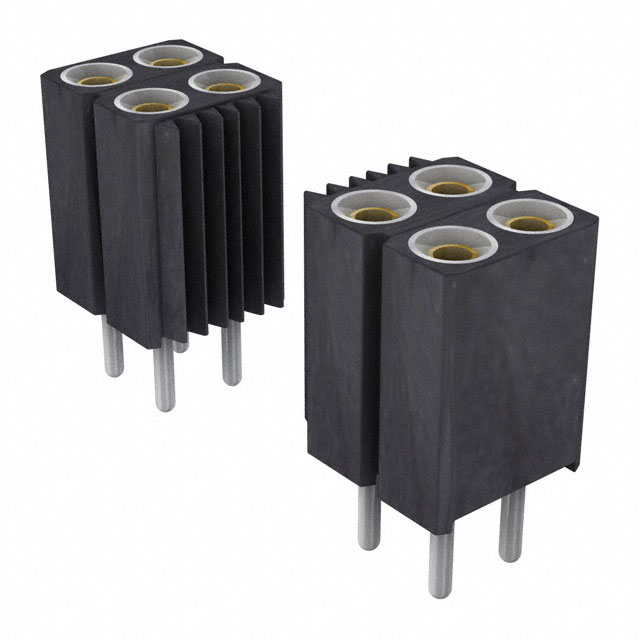

Preci-Dip 803-87-026-10-004101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Solder	Socket	0.1 in	2.54 mm	UL94 V-0	Through Hole	Flash	Tin	Push-Pull	0.1 "	2.54 mm	Black	Female Socket	2	3 A	Gold	-55 C	125 °C	All	7 mm	0.276 in		2.9 mm	0.114 in	26
