MOP-AL162 Series

Catalog

LCD MOD 32 DIG 16 X 2 REFLECTIVE

Part	Number of Characters	Text Color	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Mode	Viewing Area [y]	Viewing Area [x]	Character Format [x]	Character Format [y]	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Character Size [y]	Character Size [z]	Background Color	Operating Temperature [Min]	Operating Temperature [Max]	Interface	Display Format [x]	Display Format [y]	Dot Size [x]	Dot Size [y]	Backlight	Background Color [custom]
Matrix Orbital MOP-AL162A-BYRN-25J-3IN	32	Black	Alphanumeric	5.5 V	4.5 V	Reflective	15.5 mm	64.5 mm	5 Dots	8 Dots	80 mm	36 mm	14 mm	2.95 mm	5.55 mm	Yellow/Green	-20 ░C	70 °C	I2C RS-232 TTL	16	2

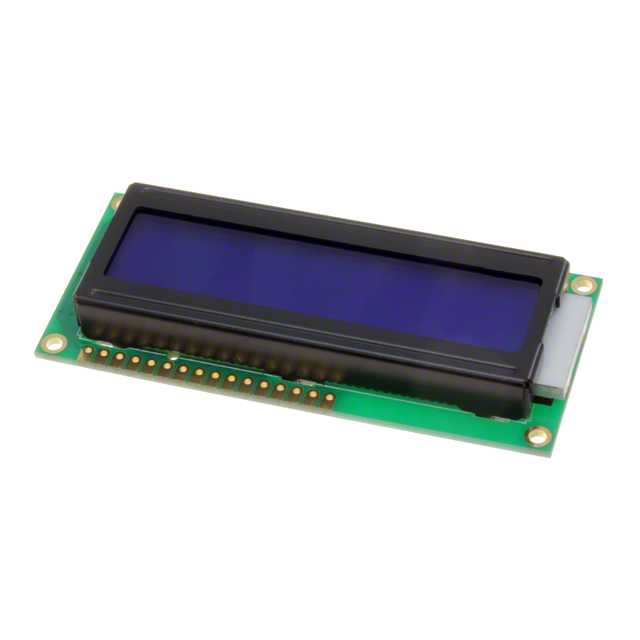

Matrix Orbital MOP-AL162A-BBTW-25J-3IN	32		Alphanumeric	5.5 V	4.5 V	Transmissive	15.5 mm	64.5 mm	5 Dots	8 Dots	80 mm	36 mm	14 mm	2.95 mm	5.55 mm		-20 ░C	70 °C	8-Bit Parallel	16	2	0.55 mm	0.65 mm	LED - White
Matrix Orbital MOP-AL162A-BBTW-25E-3IN	32	White	Alphanumeric	5.5 V	4.5 V	Transmissive	15.5 mm	64.5 mm	5 Dots	8 Dots	80 mm	36 mm	14 mm	2.95 mm	5.55 mm	Blue	-20 ░C	70 °C	I2C RS-232 TTL	16	2
Matrix Orbital MOP-AL162A-BGFW-25E-3IN	32	Blue	Alphanumeric	5.5 V	4.5 V	Transflective	15.5 mm	64.5 mm	5 Dots	8 Dots	80 mm	36 mm	14 mm	2.95 mm	5.55 mm		-20 ░C	70 °C	I2C RS-232 TTL	16	2				Gray White
Matrix Orbital MOP-AL162A-BBTR-25E-3IN	32	Red	Alphanumeric	5.5 V	4.5 V	Transmissive	15.5 mm	64.5 mm	5 Dots	8 Dots	80 mm	36 mm	14 mm	2.95 mm	5.55 mm	Black	-20 ░C	70 °C	I2C RS-232 TTL	16	2

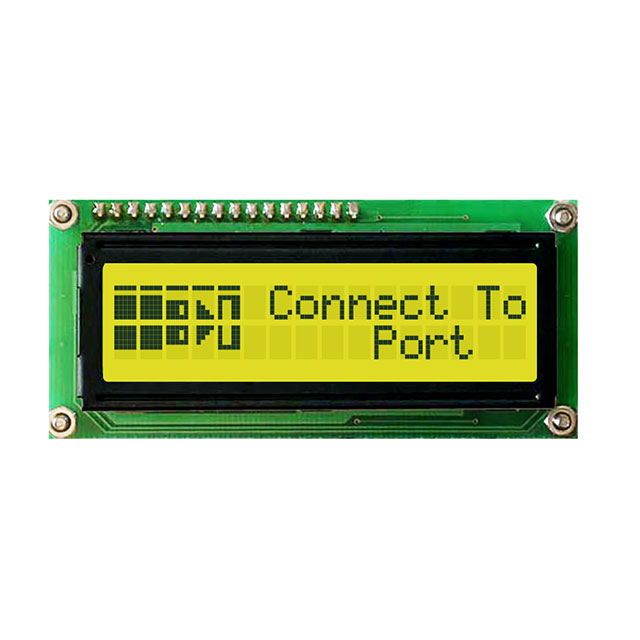

Matrix Orbital MOP-AL162A-BYFY-25J-3IN	32		Alphanumeric	5.5 V	4.5 V	Transflective	15.5 mm	64.5 mm	5 Dots	8 Dots	80 mm	36 mm	14 mm	2.95 mm	5.55 mm		-20 ░C	70 °C	8-Bit Parallel	16	2	0.55 mm	0.65 mm
Matrix Orbital MOP-AL162A-BTTY-25E-3IN	32	Yellow/Green	Alphanumeric	5.5 V	4.5 V	Transmissive	15.5 mm	64.5 mm	5 Dots	8 Dots	80 mm	36 mm	14 mm	2.95 mm	5.55 mm	Black	-20 ░C	70 °C	I2C RS-232 TTL	16	2
Matrix Orbital MOP-AL162A-BYFY-25E-3IN	32	Black	Alphanumeric	5.5 V	4.5 V	Transflective	15.5 mm	64.5 mm	5 Dots	8 Dots	80 mm	36 mm	14 mm	2.95 mm	5.55 mm	Yellow/Green	-20 ░C	70 °C	I2C RS-232 TTL	16	2
