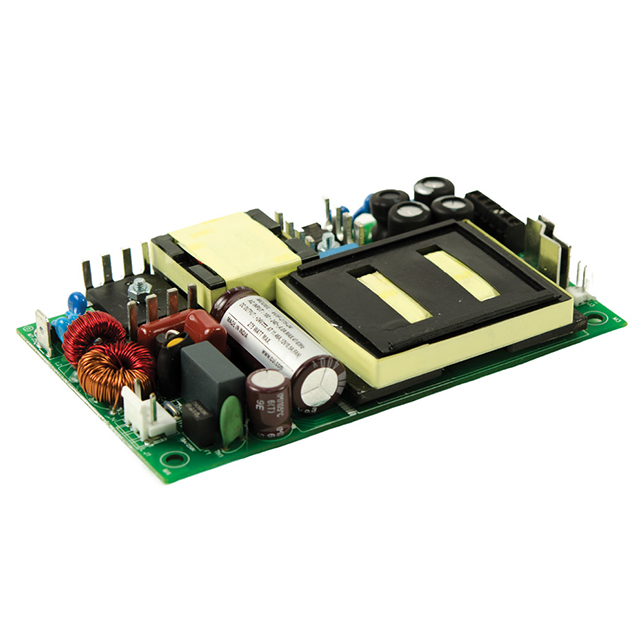

VMS-275 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 30V 9.17A 160(CONVECTION)W/275(FORCED AIR)W 11-PIN
| Part | Number of Outputs | Voltage - Isolation | Current - Output 1 | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Approval Agency | Type | Mounting Type | Standard Number | Applications | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 1 | 4.2 kV | 5.33 A | 30 V | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 160 W 275 W | 80 VAC | 264 VAC | 90 % | CB Scheme EN FCC IEC TUV UL | Open Frame | Chassis Mount | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | Medical | Adjustable Output PFC Standby Output Universal Input |
CUI Inc. | 1 | 4.2 kV | 6.67 A | 24 V | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 160 W 275 W | 80 VAC | 264 VAC | 90 % | CB Scheme EN FCC IEC TUV UL | Open Frame | Chassis Mount | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | Medical | Adjustable Output Standby Output Universal Input |
CUI Inc. | 1 | 4.2 kV | 13.33 A | 12 V | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 160 W 275 W | 80 VAC | 264 VAC | 88 % | CB Scheme EN FCC IEC TUV UL | Open Frame | Chassis Mount | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | Medical | Adjustable Output Standby Output Universal Input |
CUI Inc. | 1 | 4.2 kV | 13.33 A | 12 V | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 160 W 275 W | 80 VAC | 264 VAC | 88 % | CB Scheme EN FCC IEC TUV UL | Open Frame | Chassis Mount | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | Medical | Adjustable Output PFC Standby Output Universal Input |
CUI Inc. | 1 | 4.2 kV | 3.33 A | 48 V | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 160 W 275 W | 80 VAC | 264 VAC | 92 % | CB Scheme EN FCC IEC TUV UL | Open Frame | Chassis Mount | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | Medical | Adjustable Output Standby Output Universal Input |
CUI Inc. | 1 | 4.2 kV | 3.33 A | 48 V | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 160 W 275 W | 80 VAC | 264 VAC | 92 % | CB Scheme EN FCC IEC TUV UL | Open Frame | Chassis Mount | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | Medical | Adjustable Output PFC Standby Output Universal Input |
CUI Inc. | 1 | 4.2 kV | 10.67 A | 15 V | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 160 W 275 W | 80 VAC | 264 VAC | 88 % | CB Scheme EN FCC IEC TUV UL | Open Frame | Chassis Mount | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | Medical | Adjustable Output PFC Standby Output Universal Input |
CUI Inc. | 1 | 4.2 kV | 6.67 A | 24 V | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 160 W 275 W | 80 VAC | 264 VAC | 90 % | CB Scheme EN FCC IEC TUV UL | Open Frame | Chassis Mount | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | Medical | Adjustable Output PFC Standby Output Universal Input |
