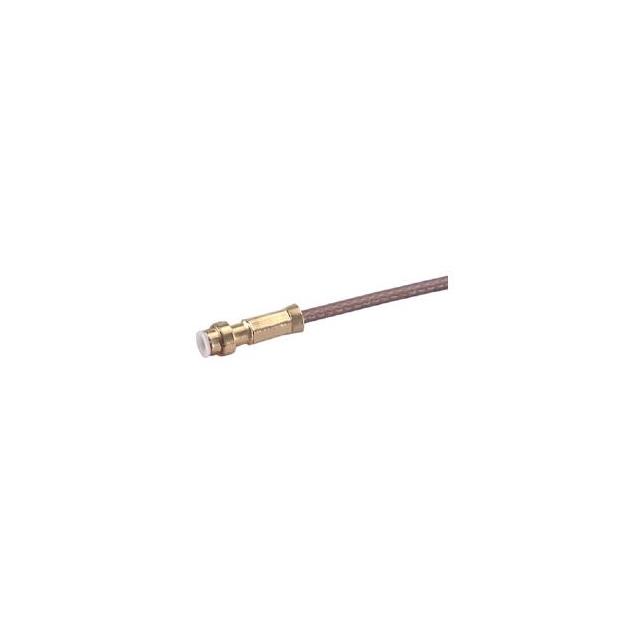

11_MMBX-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
11_MMBX-50-2-2/111_NE
| Part | Center Contact Plating | Dielectric Material | Body Finish | Voltage Rating | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Termination | Impedance | Fastening Type | Mounting Type | Shield Termination | Housing Color | Center Contact Material | Connector Type | Frequency - Max [Max] | Connector Style | Number of Ports | Cable Group | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 330 VDC | Beryllium Copper | 155 C | -55 C | Crimp | 50 Ohms | Snap-On | Free Hanging (In-Line) | Crimp | Gold | Beryllium Copper Brass | Plug Male Pin | 12.4 GHz | MMBX | 1 | RD-316 | |
 Huber+Suhner, Inc. | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 330 VDC | Beryllium Copper | 155 C | -55 C | Crimp | 50 Ohms | Snap-On | Free Hanging (In-Line) | Crimp | Gold | Beryllium Copper Brass | Plug Male Pin | 12.4 GHz | MMBX | 1 | RG-178 | 196 |
Huber+Suhner, Inc. | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 330 VDC | Beryllium Copper | 155 C | -55 C | Crimp | 50 Ohms | Snap-On | Free Hanging (In-Line) | Crimp | Gold | Beryllium Copper Brass | Plug Male Pin | 12.4 GHz | MMBX | 1 | 188 316 RG-174 |
