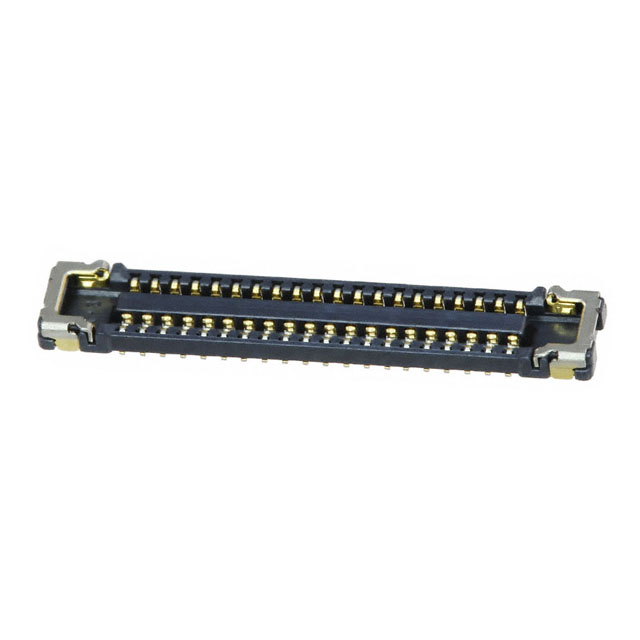

WP27D-S0 Series

Catalog

CONN RCPT 34POS SMD GOLD

Part	Mounting Type	Mated Stacking Heights	Connector Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Rows [custom]	Pitch	Pitch	Contact Finish	Features	Number of Positions
JAE Electronics WP27D-S034VA3-R15000	Surface Mount	0.7 mm	Receptacle Center Strip Contacts	0.028 in	0.71 mm	0.1 Ám	4 Áin	34	2	0.014 in	0.35 mm	Gold	Solder Retention

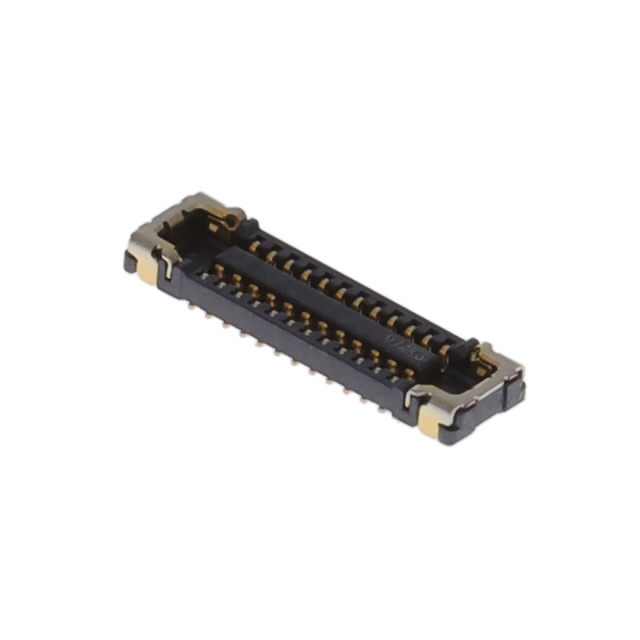

JAE Electronics WP27D-S024VA3-R15000	Surface Mount	0.7 mm	Receptacle Center Strip Contacts	0.028 in	0.71 mm	0.1 Ám	4 Áin		2	0.014 in	0.35 mm	Gold	Solder Retention	24
JAE Electronics WP27D-S030VA3-R15000	Surface Mount	0.7 mm	Receptacle Center Strip Contacts	0.028 in	0.71 mm	0.1 Ám	4 Áin		2	0.014 in	0.35 mm	Gold	Solder Retention	30
JAE Electronics WP27D-S038VA1-R15000	Surface Mount	0.7 mm	Receptacle Center Strip Contacts	0.028 in	0.71 mm	0.1 Ám	4 Áin		2	0.014 in	0.35 mm	Gold	Solder Retention	38

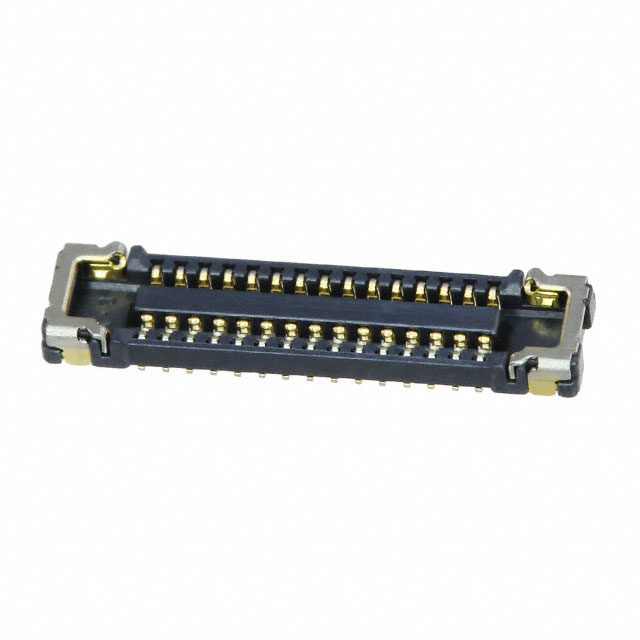

JAE Electronics WP27D-S030VA1-R15000	Surface Mount	0.7 mm	Receptacle Center Strip Contacts	0.028 in	0.71 mm	0.1 Ám	4 Áin		2	0.014 in	0.35 mm	Gold	Solder Retention	30
JAE Electronics WP27D-S050VA1-R15000	Surface Mount	0.7 mm	Receptacle Center Strip Contacts	0.028 in	0.71 mm	0.1 Ám	4 Áin		2	0.014 in	0.35 mm	Gold	Solder Retention	50
JAE Electronics WP27D-S040VA3-R15000	Surface Mount	0.7 mm	Receptacle Center Strip Contacts	0.028 in	0.71 mm	0.1 Ám	4 Áin		2	0.014 in	0.35 mm	Gold	Solder Retention	40

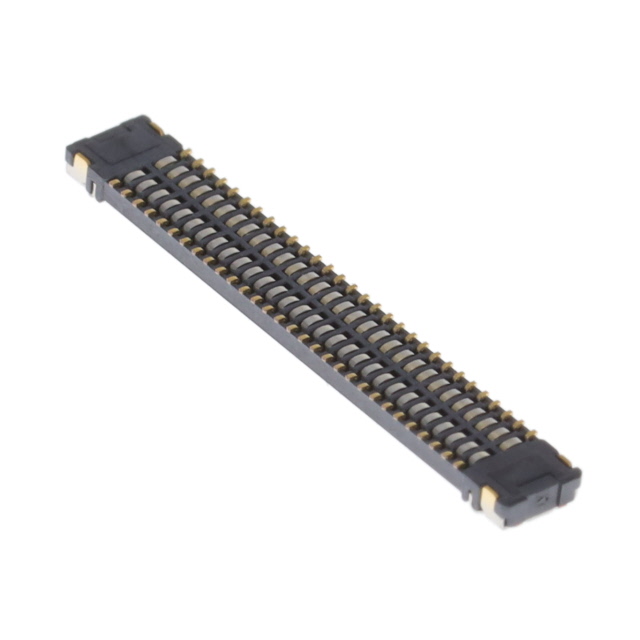

JAE Electronics WP27D-S060VA3-R15000	Surface Mount	0.7 mm	Receptacle Center Strip Contacts	0.028 in	0.71 mm	0.1 Ám	4 Áin		2	0.014 in	0.35 mm	Gold	Solder Retention	60
