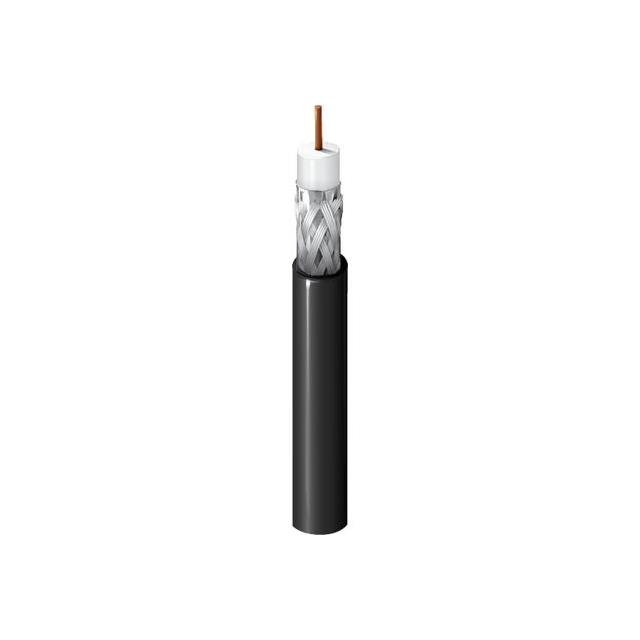

1505A Series
Manufacturer: Belden Inc.
Beta
⌘K
#20 PE/GIFHDPE SH FR PVC
| Part | Shield Coverage | Shield Material | Conductor Material | Dielectric Material | VoP, Velocity of Propagation | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Jacket (Insulation) Material | Impedance | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Cable Group | Shield Type | Jacket Color | Conductor Strand | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | Copper Bare | Foam High Density Polyethylene (FHDPE) | 82 | 75 ░C | -30 ░C | 0.145 in | 3.68 mm | Poly-Vinyl Chloride (PVC) | 75 Ohms | 5.92 mm | 0.233 in | 20 AWG | RG-59 | Braid Foil | Gray | Solid | Coaxial | ||
Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | Copper Bare | Foam High Density Polyethylene (FHDPE) | 82 | 75 ░C | -30 ░C | 0.145 in | 3.68 mm | Poly-Vinyl Chloride (PVC) | 75 Ohms | 5.92 mm | 0.233 in | 20 AWG | RG-59 | Braid Foil | Orange | Solid | Coaxial | 304.8 m | 1000 ft |
Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | Copper Bare | Foam High Density Polyethylene (FHDPE) | 82 | 75 ░C | -30 ░C | 0.145 in | 3.68 mm | Poly-Vinyl Chloride (PVC) | 75 Ohms | 5.92 mm | 0.233 in | 20 AWG | RG-59 | Braid Foil | Black | Solid | Coaxial | 304.8 m | 1000 ft |
 Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | Copper Bare | Foam High Density Polyethylene (FHDPE) | 82 | 75 ░C | -30 ░C | 0.145 in | 3.68 mm | Poly-Vinyl Chloride (PVC) | 75 Ohms | 5.92 mm | 0.233 in | 20 AWG | RG-59 | Braid Foil | Brown | Solid | Coaxial | ||
Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | Copper Bare | Foam High Density Polyethylene (FHDPE) | 82 | 75 ░C | -30 ░C | 0.145 in | 3.68 mm | Poly-Vinyl Chloride (PVC) | 75 Ohms | 5.92 mm | 0.233 in | 20 AWG | RG-59 | Braid Foil | Gray | Solid | Coaxial | 304.8 m | 1000 ft |
Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | Copper Bare | Foam High Density Polyethylene (FHDPE) | 82 | 75 ░C | -30 ░C | 0.145 in | 3.68 mm | Poly-Vinyl Chloride (PVC) | 75 Ohms | 5.92 mm | 0.233 in | 20 AWG | RG-59 | Braid Foil | Red | Solid | Coaxial | 304.8 m | 1000 ft |
Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | Copper Bare | Foam High Density Polyethylene (FHDPE) | 82 | 75 ░C | -30 ░C | 0.145 in | 3.68 mm | Poly-Vinyl Chloride (PVC) | 75 Ohms | 5.92 mm | 0.233 in | 20 AWG | RG-59 | Braid Foil | Yellow | Solid | Coaxial | ||
 Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | Copper Bare | Foam High Density Polyethylene (FHDPE) | 82 | 75 ░C | -30 ░C | 0.145 in | 3.68 mm | Poly-Vinyl Chloride (PVC) | 75 Ohms | 5.92 mm | 0.233 in | 20 AWG | RG-59 | Braid Foil | Green | Solid | Coaxial | 304.8 m | 1000 ft |
Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | Copper Bare | Foam High Density Polyethylene (FHDPE) | 82 | 75 ░C | -30 ░C | 0.145 in | 3.68 mm | Poly-Vinyl Chloride (PVC) | 75 Ohms | 5.92 mm | 0.233 in | 20 AWG | RG-59 | Braid Foil | White | Solid | Coaxial | 304.8 m | 1000 ft |
Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | Copper Bare | Foam High Density Polyethylene (FHDPE) | 82 | 75 ░C | -30 ░C | 0.145 in | 3.68 mm | Poly-Vinyl Chloride (PVC) | 75 Ohms | 5.92 mm | 0.233 in | 20 AWG | RG-59 | Braid Foil | Brown | Solid | Coaxial | 304.8 m | 1000 ft |
