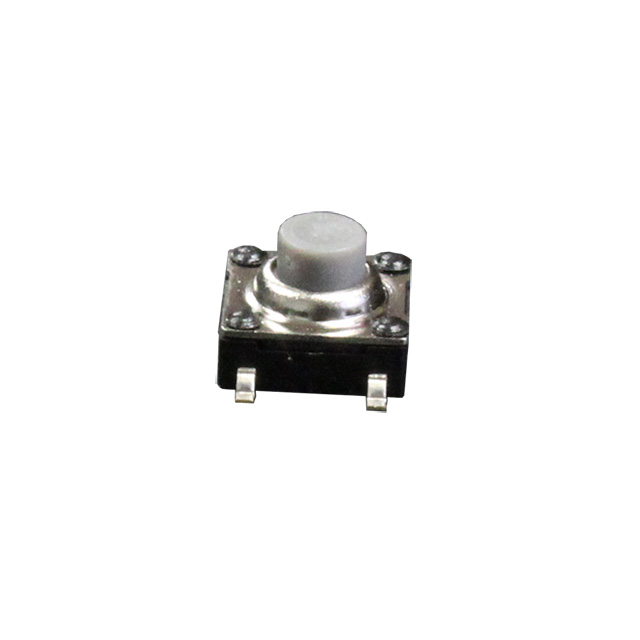

STS4.3 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 48V
| Part | Switch Travel | Actuator Material | Actuator Height off PCB, Vertical [z] | Operating Force | Ingress Protection | Switch Function | Actuator Orientation | Contact Rating @ Voltage | Outline [x] | Outline [y] | Mounting Type | Termination Style | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.45 mm | Polyamide (PA6T) Nylon 6T | 4.3 mm | 260 gf | IP67 - Dust Tight Waterproof | Off-Mom | Top Actuated | 0.05 A 48 VDC | 10 mm | 7.2 mm | Surface Mount | Gull Wing | SPST-NO | 85 °C | -40 C | Non-Illuminated | Standard |
