Buccaneer 7000 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
CIRCULAR CONNECTOR, BUCCANEER 7000 SERIES, CABLE MOUNT RECEPTACLE, 10 CONTACTS
| Part | Mounting Type | Contact Type | Material Flammability Rating | Note | Type | Orientation | Number of Positions | Ingress Protection | Connector Type | Housing Color | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Features | Primary Material | Shell Material | Fastening Type | Contact Shape | Contact Finish - Mating | Current Rating (Amps) | Voltage Rating | Backshell Material, Plating | Termination | Color | Contact Material | Accessory Type | For Use With/Related Products [Min] | For Use With/Related Products [Max] | For Use With/Related Products | Mounting Feature | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Free Hanging (In-Line) | Crimp and Solder Cup | UL94 V-0 | Contacts Not Included | For Male Pins | Keyed | 10 | IP66 IP68 IP69K | Receptacle Housing | Gray | Unshielded | 120 °C | -40 C | Backshell | Plastic | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Bayonet Lock | Circular | |||||||||||||

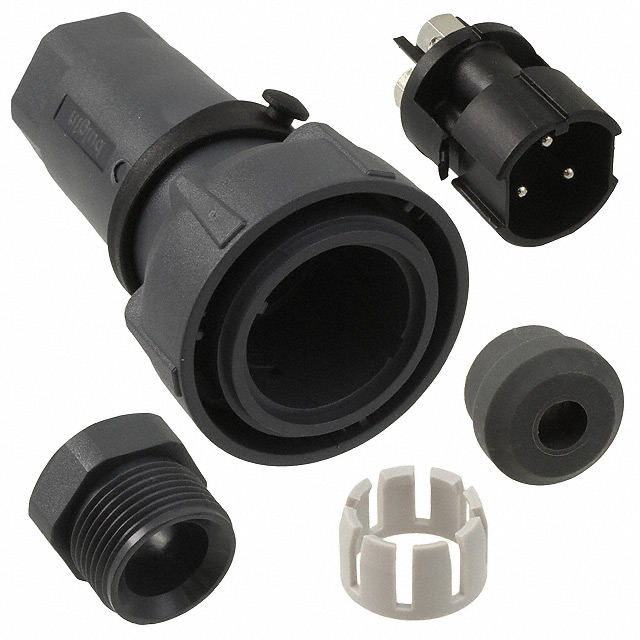

 BULGIN LIMITED | Free Hanging (In-Line) | UL94 V-0 | Keyed | 3 | IP66 IP68 IP69K | Receptacle Male Pins | Unshielded | 120 °C | -40 C | Backshell | Plastic | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Bayonet Lock | Nickel | 25 A | 600 V | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Screw | Gray | Brass | |||||||||||

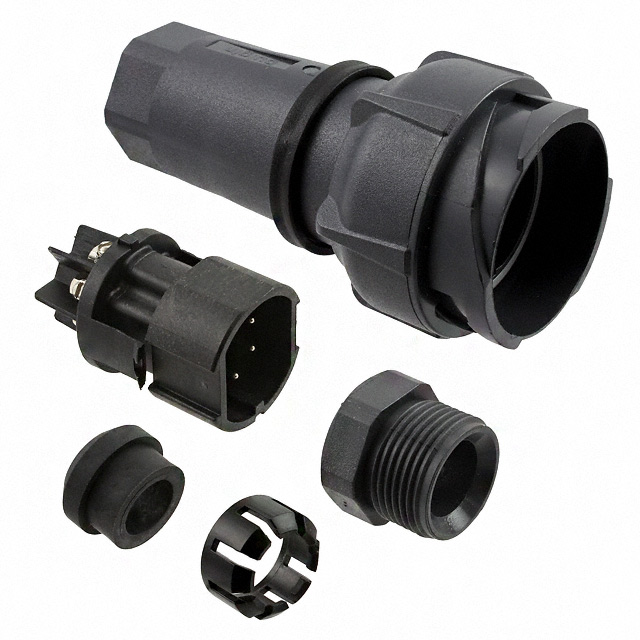

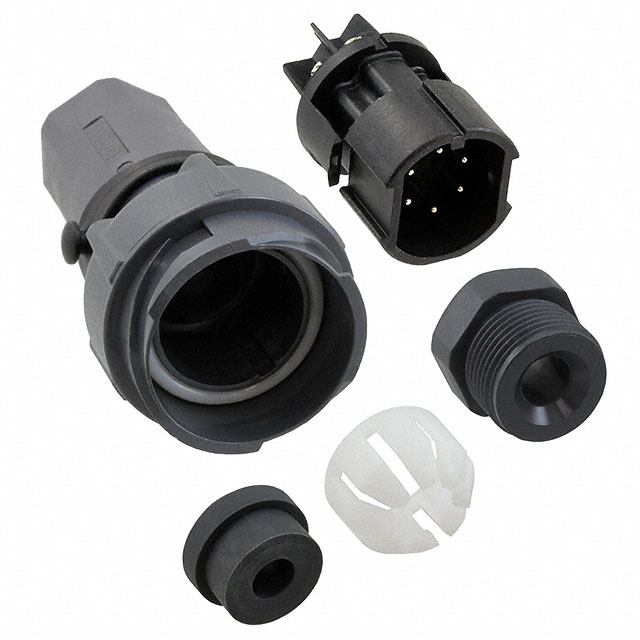

 BULGIN LIMITED | Free Hanging (In-Line) | UL94 V-0 | Keyed | 6 | IP66 IP68 IP69K | Receptacle Male Pins | Unshielded | 120 °C | -40 C | Backshell | Plastic | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Bayonet Lock | Nickel | 10 A | 600 V | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Screw | Gray | Brass | |||||||||||
 BULGIN LIMITED | Gray | Cable Gland Set | 5 mm | 7 mm | Cable | ||||||||||||||||||||||||||

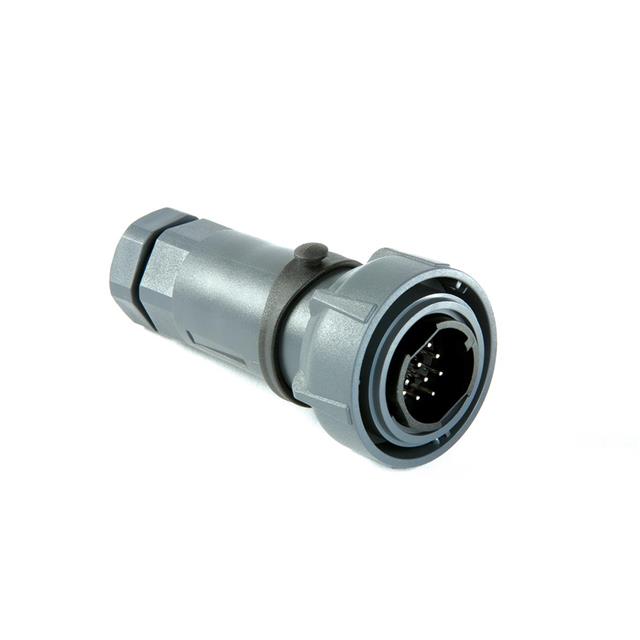

 BULGIN LIMITED | Free Hanging (In-Line) | Crimp and Solder Cup | UL94 V-0 | Contacts Not Included | For Female Sockets | Keyed | 32 | IP66 IP68 IP69K | Receptacle Housing | Gray | Unshielded | 120 °C | -40 C | Backshell | Plastic | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Bayonet Lock | Circular | |||||||||||||
 BULGIN LIMITED | Free Hanging (In-Line) | Crimp and Solder Cup | UL94 V-0 | Contacts Not Included | For Female Sockets | Keyed | 32 | IP66 IP68 IP69K | Plug Housing | Gray | Unshielded | 120 °C | -40 C | Backshell Coupling Nut | Plastic | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Bayonet Lock | Circular | |||||||||||||

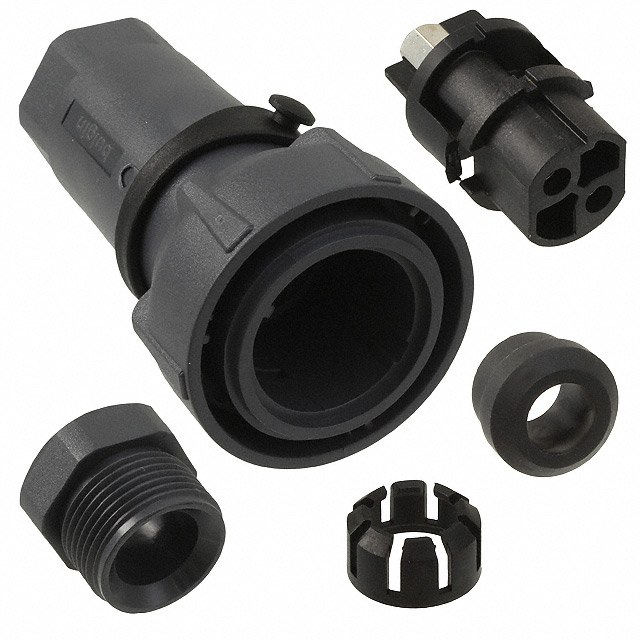

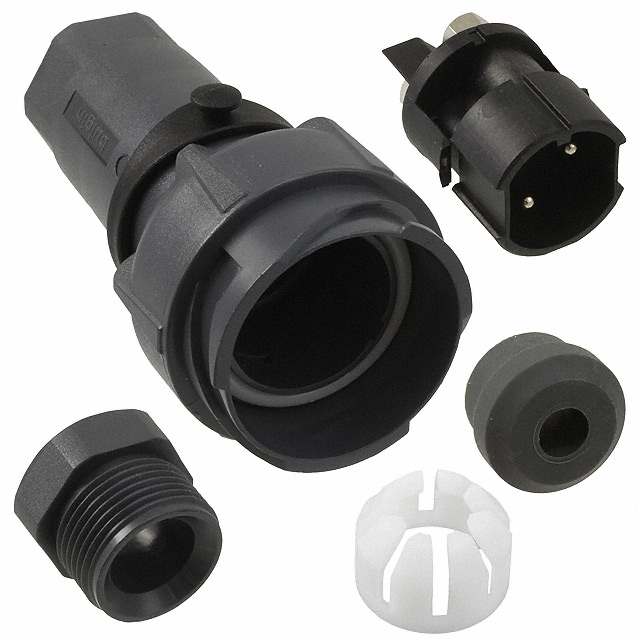

 BULGIN LIMITED | Free Hanging (In-Line) | UL94 V-0 | Keyed | 2 | IP66 IP68 IP69K | Receptacle Male Pins | Unshielded | 120 °C | -40 C | Backshell | Plastic | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Bayonet Lock | Nickel | 25 A | 600 V | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Screw | Gray | Brass | |||||||||||

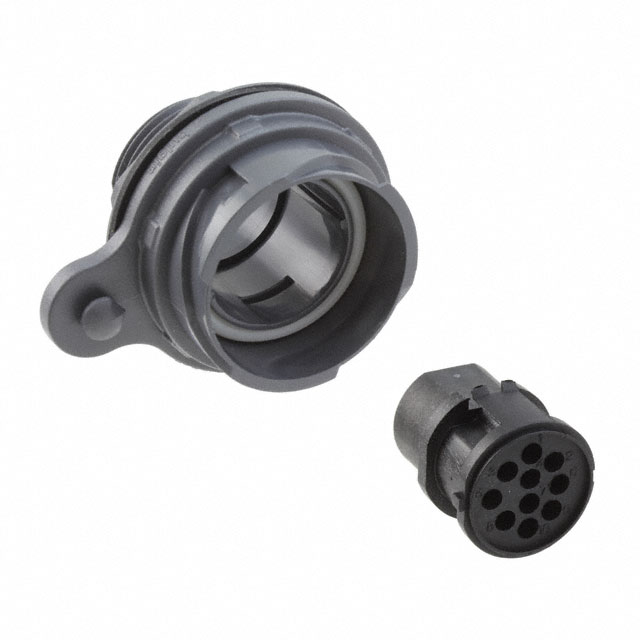

 BULGIN LIMITED | Panel Mount | Crimp and Solder Cup | UL94 V-0 | Contacts Not Included | For Female Sockets | Keyed | 10 | IP66 IP68 IP69K | Receptacle Housing | Gray | Unshielded | 120 °C | -40 C | Plastic | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Bayonet Lock | Circular | Bulkhead - Rear Side Nut | 1 Nut 1 Washer 3 pcs - 1 Connector |
