R16125 Series

Catalog

N / STRAIGHT SQUARE FLANGE JACK

Part	Dielectric Material	Voltage Rating	Center Contact Plating	Body Material	Body Finish	Mating Cycles	Insertion Loss	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Center Contact Material	Mounting Feature	Number of Ports	Impedance	Housing Color	Fastening Type	Cable Group	Connector Type	Frequency - Max [Max]	Mounting Type	Shield Termination	Contact Termination	Ingress Protection

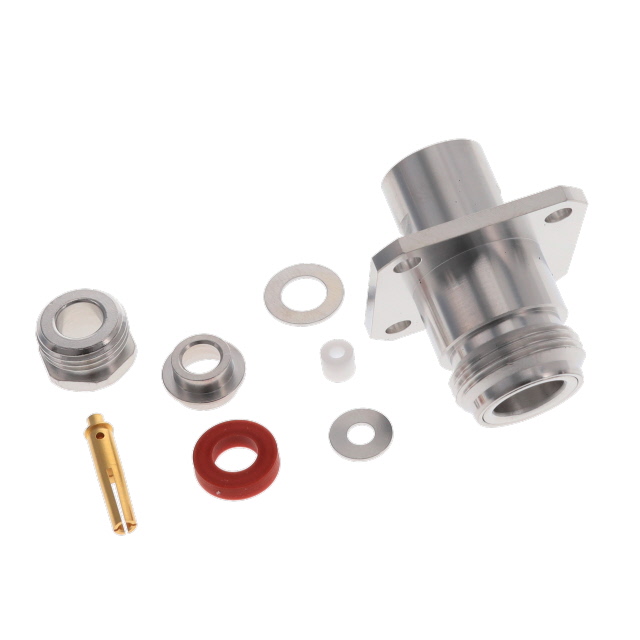

Radiall USA, Inc. R161256000	Polytetrafluoroethylene (PTFE)	850 V	Gold	Brass	White Bronze	500	0.15 dB	155 C	-55 C	N Type	Beryllium Copper	Flange	1	50 Ohms	Silver	Threaded	141 142 223 400 RG-58	Female Socket Jack	11 GHz	Panel Mount	Clamp	Solder	IP67 - Dust Tight Waterproof
Radiall USA, Inc. R161254025W	Polytetrafluoroethylene (PTFE)	850 V	Gold	Brass	Nickel	500	0.15 dB	165 °C	-65 ░C	N Type	Beryllium Copper	Flange	1	50 Ohms	Silver	Threaded		Female Socket Jack	11 GHz	Panel Mount	Crimp	Crimp	IP67 - Dust Tight Waterproof
Radiall USA, Inc. R161256000W	Polytetrafluoroethylene (PTFE)	850 V	Gold	Brass	White Bronze	500	0.15 dB	155 C	-55 C	N Type	Beryllium Copper	Flange	1	50 Ohms	Silver	Threaded	141 142 223 400 RG-58	Female Socket Jack	11 GHz	Panel Mount	Clamp	Solder	IP67 - Dust Tight Waterproof
Radiall USA, Inc. R161252000W	Polytetrafluoroethylene (PTFE)	250 V	Gold	Brass	White Bronze	500	0.15 dB	155 C	-55 C	N Type	Beryllium Copper	Flange	1	50 Ohms	Silver	Threaded	316 RD-316 RG-174	Female Socket Jack	11 GHz	Panel Mount	Clamp	Solder	IP67 - Dust Tight Waterproof

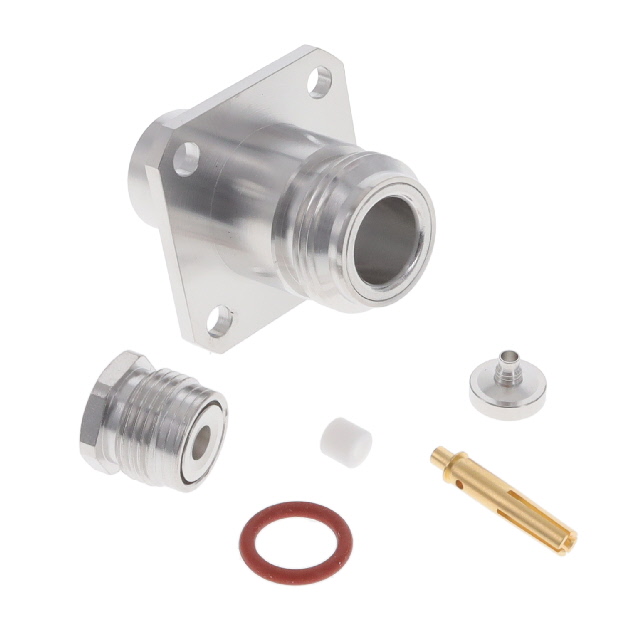

Radiall USA, Inc. R161252000	Polytetrafluoroethylene (PTFE)	250 V	Gold	Brass	White Bronze	500	0.15 dB	155 C	-55 C	N Type	Beryllium Copper	Flange	1	50 Ohms	Silver	Threaded	316 RD-316 RG-174	Female Socket Jack	11 GHz	Panel Mount	Clamp	Solder	IP67 - Dust Tight Waterproof
