45010 Series

Catalog

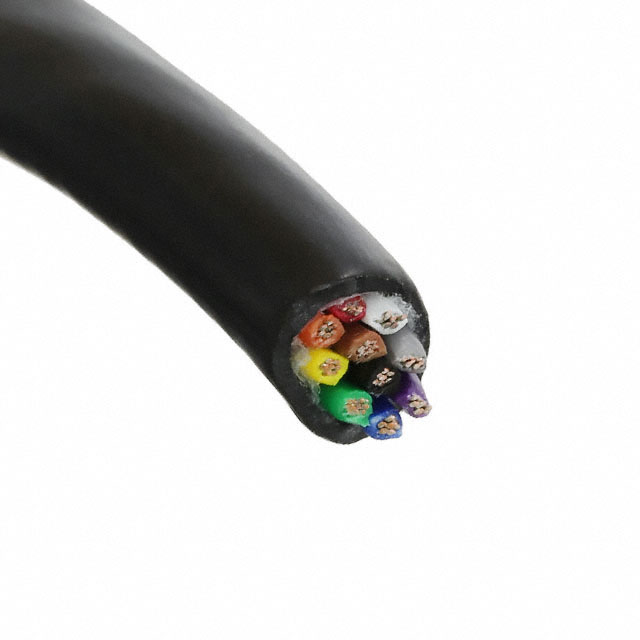

CABLE 10 COND 22AWG BLACK 1000'

Part	Jacket (Insulation) Material	Conductor Material	Voltage	Features	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter	Length	Length	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Wire Gauge	Cable Type	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
ALPHA WIRE 45010 BK001	Thermoplastic Elastomer (TPE)	Copper Tinned	300 V	Biological Compatibility Rip Cord	ISO 10993	7	30 AWG	0.342 in	8.69 mm	1000 ft	304.8 m	Thermoplastic Elastomer (TPE)	1.143 mm	0.045 in	Black	22 AWG	Multi-Conductor	10	-50 °C	125 °C
ALPHA WIRE 45010 SL199	Thermoplastic Elastomer (TPE)	Copper Tinned	300 V	Biological Compatibility Rip Cord	ISO 10993	7	30 AWG	0.342 in	8.69 mm	1000 ft	304.8 m	Thermoplastic Elastomer (TPE)	1.143 mm	0.045 in	Slate	22 AWG	Multi-Conductor	10	-50 °C	125 °C
ALPHA WIRE 45010 BK005	Thermoplastic Elastomer (TPE)	Copper Tinned	300 V	Biological Compatibility Rip Cord	ISO 10993	7	30 AWG	0.342 in	8.69 mm			Thermoplastic Elastomer (TPE)	1.143 mm	0.045 in	Black	22 AWG	Multi-Conductor	10	-50 °C	125 °C	30.5 m	100 ft
