046557 Series

Manufacturer: Molex

Catalog

CONN HD ARRAY RCPT 160P SMD GOLD

Part	Connector Type	Height Above Board	Height Above Board	Features	Mated Stacking Heights	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Height Above Board [z]	Height Above Board [z]
Molex 0465574345	High Density Array Female	0.258 "	6.55 mm	Board Guide	8.5 mm 9 mm 9.5 mm 10 mm 11 mm 11.5 mm 13.5 mm	160	0.05 in	1.27 mm	Surface Mount	0.76 Ám	30 Áin	Gold
Molex 0465573545	High Density Array Female	0.317 in	8.05 mm	Board Guide	10 mm 10.5 mm 11 mm 11.5 mm 12.5 mm 13 mm 15 mm	120	0.05 in	1.27 mm	Surface Mount	0.76 Ám	30 Áin	Gold
Molex 0465575245
Molex 0465573247	High Density Array Female	0.238 in	6.05 mm	Board Guide	8 mm 8.5 mm 9 mm 9.5 mm 10.5 mm 11 mm 13 mm	120	0.05 in	1.27 mm	Surface Mount	0.76 Ám	30 Áin	Gold

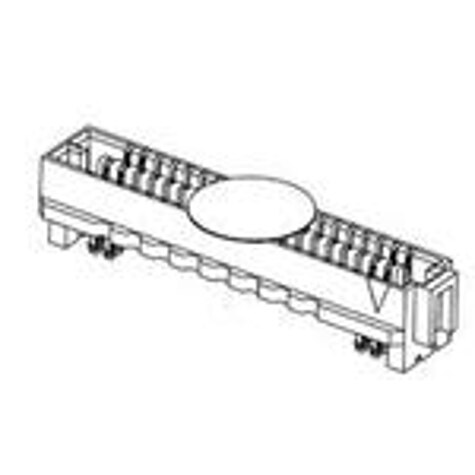

Molex 0465574245	High Density Array Female	0.238 in	6.05 mm	Board Guide	8 mm 8.5 mm 9 mm 9.5 mm 10.5 mm 11 mm 13 mm	160	0.05 in	1.27 mm	Surface Mount	0.76 Ám	30 Áin	Gold
Molex 0465572445	High Density Array Female			Board Guide	9.5 mm 10 mm 10.5 mm 11 mm 12 mm 12.5 mm 14.5 mm	80	0.05 in	1.27 mm	Surface Mount	0.76 Ám	30 Áin	Gold	7.5 mm	0.295 in
Molex 0465573547	High Density Array Female			Board Guide	10 mm 10.5 mm 11 mm 11.5 mm 12.5 mm 13 mm 15 mm	120	0.05 in	1.27 mm	Surface Mount	0.76 Ám	30 Áin	Gold	8 mm	0.315 in

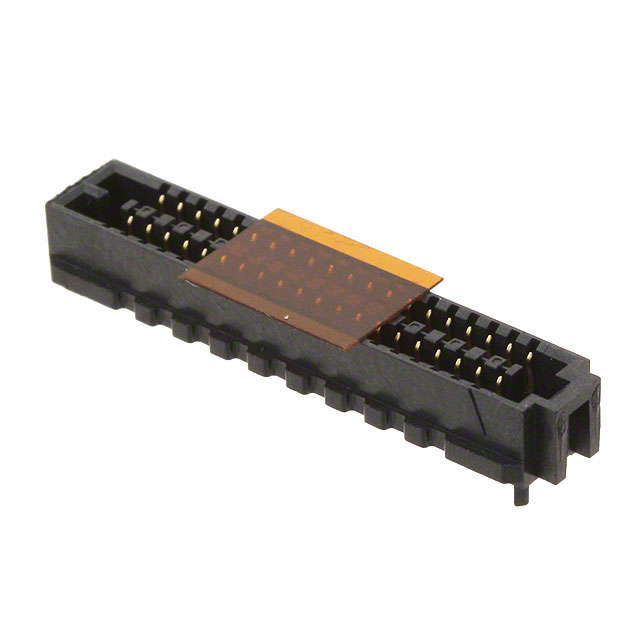

Molex 0465572145	High Density Array Female	0.199 in	5.05 mm	Board Guide	7 mm 7.5 mm 8 mm 8.5 mm 9.5 mm 10 mm 12 mm	80	0.05 in	1.27 mm	Surface Mount	0.76 Ám	30 Áin	Gold

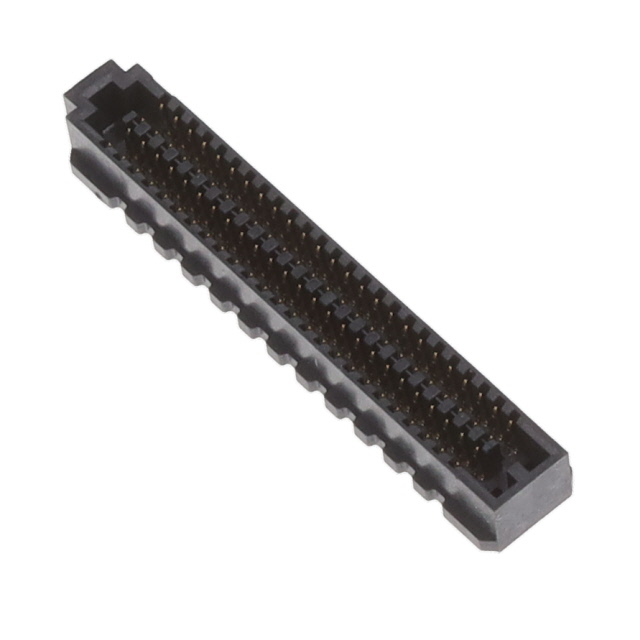

Molex 0465577145	High Density Array Female	0.199 in	5.05 mm	Board Guide	7 mm 7.5 mm 8 mm 8.5 mm 9.5 mm 10 mm 12 mm	100	0.05 in	1.27 mm	Surface Mount	0.76 Ám	30 Áin	Gold

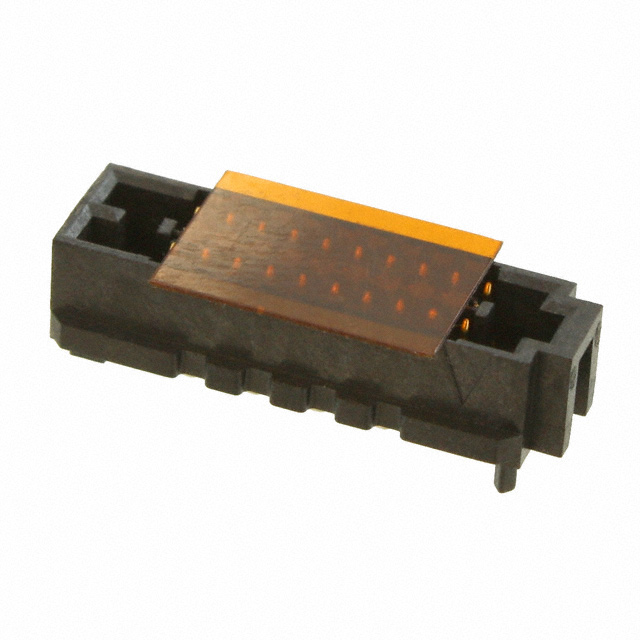

Molex 0465571145	High Density Array Female	0.199 in	5.05 mm	Board Guide	7 mm 7.5 mm 8 mm 8.5 mm 9.5 mm 10 mm 12 mm	40	0.05 in	1.27 mm	Surface Mount	0.76 Ám	30 Áin	Gold
