TLE1105 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Actuator Material	Switch Travel	Outline [x]	Outline [y]	Operating Force	Features	Actuator Orientation	Circuit	Illumination	Mounting Type	Termination Style	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Actuator Height off PCB, Vertical
E-Switch TLE1105F100Q	100000 Cycles	Polyamide (PA) Nylon	0.25 mm	6 mm	6 mm	100 gf	Grounding Pin	Top Actuated	SPST-NO	Non-Illuminated	Through Hole	PC Pin	Standard	-20 ░C	70 °C	Off-Mom	0.05 A 12 VDC	4.3 mm
E-Switch TLE1105PF100Q	100000 Cycles	Polyamide (PA) Nylon	0.25 mm	6 mm	6 mm	100 gf	Grounding Pin	Top Actuated	SPST-NO	Non-Illuminated	Through Hole	PC Pin	Standard	-20 ░C	70 °C	Off-Mom	0.05 A 12 VDC		8.5 mm

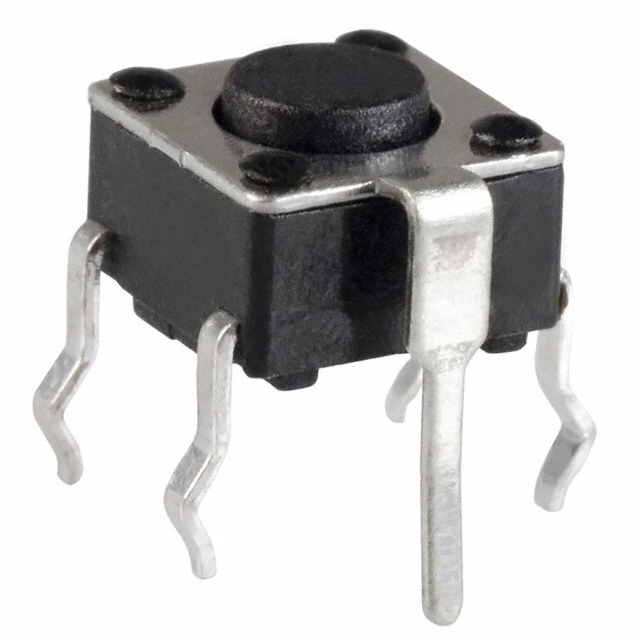

E-Switch TLE1105F160Q	100000 Cycles	Polyamide (PA) Nylon	0.25 mm	6 mm	6 mm	160 gf	Grounding Pin	Top Actuated	SPST-NO	Non-Illuminated	Through Hole	PC Pin	Standard	-20 ░C	70 °C	Off-Mom	0.05 A 12 VDC	4.3 mm
E-Switch TLE1105SPF160Q	100000 Cycles	Polyamide (PA) Nylon	0.25 mm	6 mm	6 mm	160 gf	Grounding Pin	Top Actuated	SPST-NO	Non-Illuminated	Through Hole	PC Pin	Plunger for Cap	-20 ░C	70 °C	Off-Mom	0.05 A 12 VDC		7.5 mm
E-Switch TLE1105SPF160R1DRED	100000 Cycles	Polyamide (PA) Nylon	0.25 mm	6 mm	6 mm	160 gf	Red Cap	Top Actuated	SPST-NO	Non-Illuminated	Through Hole	PC Pin	Square Button	-20 ░C	70 °C	Off-Mom	0.05 A 50 VDC	13.4 mm

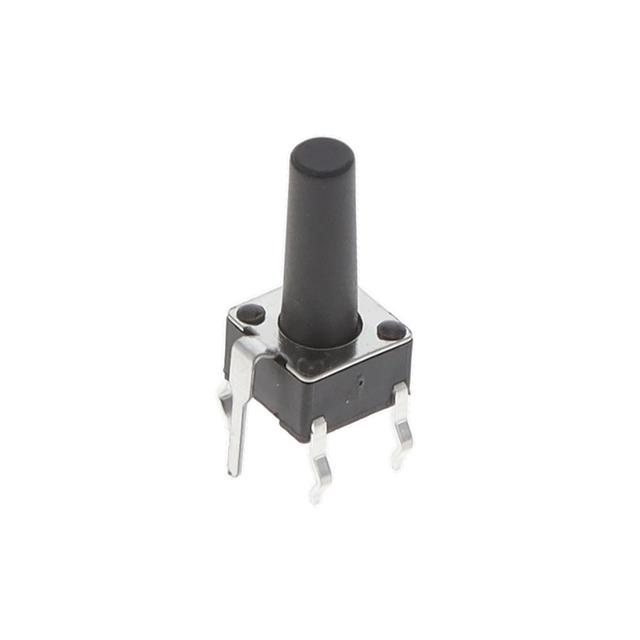

E-Switch TLE1105DF160Q	100000 Cycles	Polyamide (PA) Nylon	0.25 mm	6 mm	6 mm	160 gf	Grounding Pin	Top Actuated	SPST-NO	Non-Illuminated	Through Hole	PC Pin	Standard	-20 ░C	70 °C	Off-Mom	0.05 A 12 VDC		13 mm
E-Switch TLE1105LF160Q	100000 Cycles	Polyamide (PA) Nylon	0.25 mm	6 mm	6 mm	160 gf	Grounding Pin	Top Actuated	SPST-NO	Non-Illuminated	Through Hole	PC Pin	Standard	-20 ░C	70 °C	Off-Mom	0.05 A 12 VDC	17 mm
E-Switch TLE1105FF160Q	100000 Cycles	Polyamide (PA) Nylon	0.25 mm	6 mm	6 mm	160 gf	Grounding Pin	Top Actuated	SPST-NO	Non-Illuminated	Through Hole	PC Pin	Standard	-20 ░C	70 °C	Off-Mom	0.05 A 12 VDC	7 mm
E-Switch TLE1105SPF160R1DBLK	100000 Cycles	Polyamide (PA) Nylon	0.25 mm	6 mm	6 mm	160 gf	Black Cap	Top Actuated	SPST-NO	Non-Illuminated	Through Hole	PC Pin	Square Button	-20 ░C	70 °C	Off-Mom	0.05 A 50 VDC	13.4 mm
E-Switch TLE1105GF250Q	100000 Cycles	Polyamide (PA) Nylon	0.25 mm	6 mm	6 mm	0.25 kgf	Grounding Pin	Top Actuated	SPST-NO	Non-Illuminated	Through Hole	PC Pin	Standard	-20 ░C	70 °C	Off-Mom	0.05 A 12 VDC		9.7 mm
