282901 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLK 2P SIDE ENT 5.08MM PCB
| Part | Pitch [x] | Pitch [x] | Torque - Screw | Torque - Screw | Clamp Material - Plating | Mounting Type | Contact Material - Plating [custom] | Number of Levels | Current | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Features | Positions Per Level | Wire Gauge [Max] | Wire Gauge [Min] | Wire Termination | Screw Thread | Color | Screw Material - Plating | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.2 in | 5.08 mm | 0.79 Nm | 7 Lb-In | Brass - Nickel Plated | Through Hole | Brass - Tin Plated | 1 | 17.5 A | -40 °C | 105 ░C | 300 V | Interlocking (Side) Mid Wire Entry Level | 2 | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | Green | Brass - Nickel Plated | Horizontal with Board |

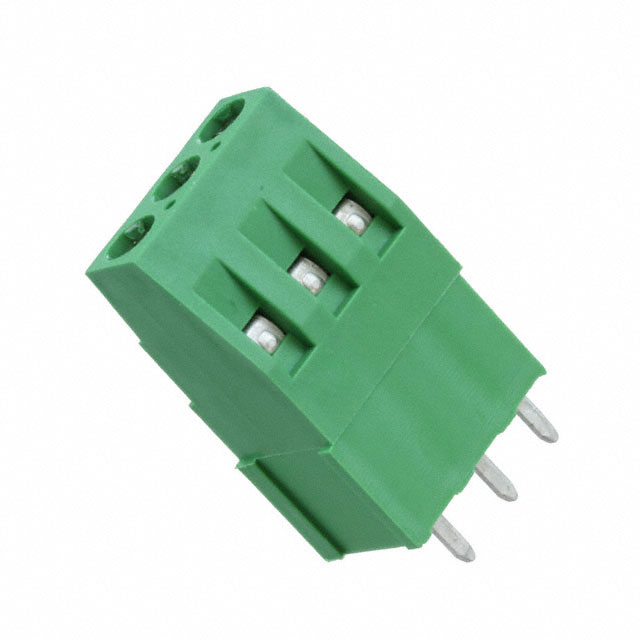

 TE Connectivity Raychem Cable Protection | 0.2 in | 5.08 mm | 0.79 Nm | 7 Lb-In | Brass - Nickel Plated | Through Hole | Brass - Tin Plated | 1 | 17.5 A | -40 °C | 105 ░C | 300 V | Interlocking (Side) Mid Wire Entry Level | 3 | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | Green | Brass - Nickel Plated | Horizontal with Board |
