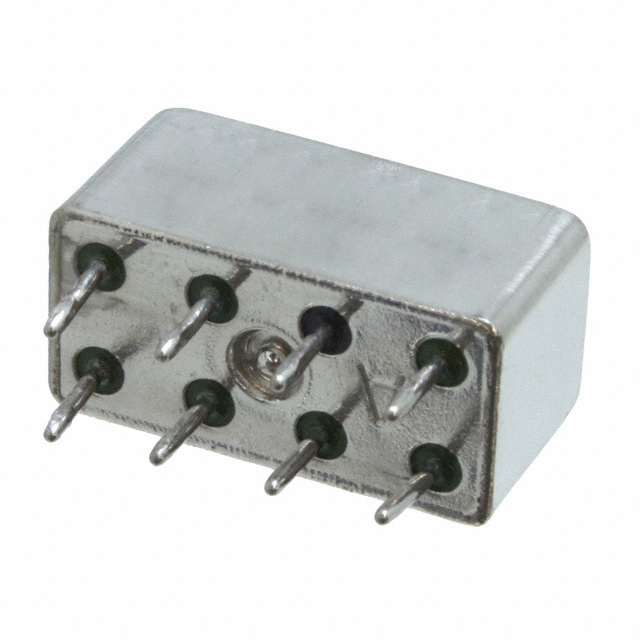

HMS12 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
RELAY GEN PURPOSE DPDT 2A 26.5V
| Part | Coil Type | Contact Form | Coil Voltage | Seal Rating | Relay Type | Contact Material | Release Time | Coil Current | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Load - Max Switching | Mounting Type | Termination Style | Contact Rating (Current) | Switching Voltage | Coil Resistance | Must Release Voltage | Must Operate Voltage | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | Non Latching | DPDT (2 Form C) | 26.5 VDC | Sealed - Hermetically | General Purpose | Gold (Au) Silver (Ag) | 5 ms | 25.7 mA | 6 ms | 125 °C | -65 ░C | 56 W 300 VA | Through Hole | PC Pin | 2 A | 28 VDC 115 VAC | 1030 Ohms | 1.1 VDC | 11.4 VDC | ||
TE Connectivity Aerospace, Defense and Marine | Non Latching | DPDT (2 Form C) | Sealed - Hermetically | General Purpose | Gold (Au) Silver (Ag) | 5 ms | 6 ms | 125 °C | -65 ░C | 56 W 300 VA | Through Hole | PC Pin | 2 A | 28 VDC 115 VAC | 47 Ohms | 0.21 VDC | |||||
TE Connectivity Aerospace, Defense and Marine | Non Latching | DPDT (2 Form C) | 12 VDC | Sealed - Hermetically | General Purpose | Gold (Au) Silver (Ag) | 5 ms | 38.7 mA | 6 ms | 125 °C | -65 ░C | 56 W 300 VA | Through Hole | PC Pin | 2 A | 28 VDC 115 VAC | 310 Ohms | 0.55 VDC | 5.6 VDC | ||
TE Connectivity Aerospace, Defense and Marine | Non Latching | DPDT (2 Form C) | 5 VDC | Sealed - Hermetically | General Purpose | Gold (Au) Silver (Ag) | 5 ms | 106.4 mA | 6 ms | 125 °C | -65 ░C | 56 W 300 VA | Chassis Mount | PC Pin | 2 A | 28 VDC 115 VAC | 47 Ohms | 0.21 VDC | |||
TE Connectivity Aerospace, Defense and Marine | DPDT (2 Form C) | Sealed - Hermetically | General Purpose | 5 ms | 6 ms | 125 °C | -65 ░C | Through Hole | PC Pin | 2 A | MIL-R-39016/44 | Military | |||||||||
TE Connectivity Aerospace, Defense and Marine | Non Latching | DPDT (2 Form C) | 5 VDC | Sealed - Hermetically | General Purpose | Gold (Au) Silver (Ag) | 5 ms | 106.4 mA | 6 ms | 125 °C | -65 ░C | 56 W 300 VA | Through Hole | PC Pin | 2 A | 28 VDC 115 VAC | 47 Ohms | 0.21 VDC | |||
TE Connectivity Aerospace, Defense and Marine | Non Latching | DPDT (2 Form C) | 12 VDC | Sealed - Hermetically | General Purpose | Gold (Au) Silver (Ag) | 3 ms | 23.2 mA | 5 ms | 125 °C | -65 ░C | 56 W 300 VA | Through Hole | PC Pin | 2 A | 28 VDC 115 VAC | 518 Ohms | 0.7 VDC | 7.2 VDC | ||
TE Connectivity Aerospace, Defense and Marine | Non Latching | DPDT (2 Form C) | 30 VDC | Sealed - Hermetically | General Purpose | Gold (Au) Silver (Ag) | 5 ms | 18.5 mA | 6 ms | 125 °C | -65 ░C | 56 W 300 VA | Through Hole | PC Pin | 2 A | 28 VDC 115 VAC | 1.62 kOhms | 1.4 VDC | 14.3 VDC | ||
TE Connectivity Aerospace, Defense and Marine | Non Latching | DPDT (2 Form C) | 26.5 VDC | Sealed - Hermetically | General Purpose | Gold (Au) Silver (Ag) | 5 ms | 25.7 mA | 6 ms | 125 °C | -65 ░C | 56 W 300 VA | Chassis Mount | PC Pin | 2 A | 28 VDC 115 VAC | 1030 Ohms | 1.1 VDC | 11.4 VDC | ||
 TE Connectivity Aerospace, Defense and Marine | Non Latching | DPDT (2 Form C) | 26.5 VDC | Sealed - Hermetically | General Purpose | Gold (Au) Silver (Ag) | 5 ms | 25.7 mA | 6 ms | 125 °C | -65 ░C | Through Hole | PC Pin | 2 A | 28 VDC | 1030 Ohms | 1.1 VDC | 11.4 VDC | MIL-R-39016/44 | Military |
