TS2C3F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

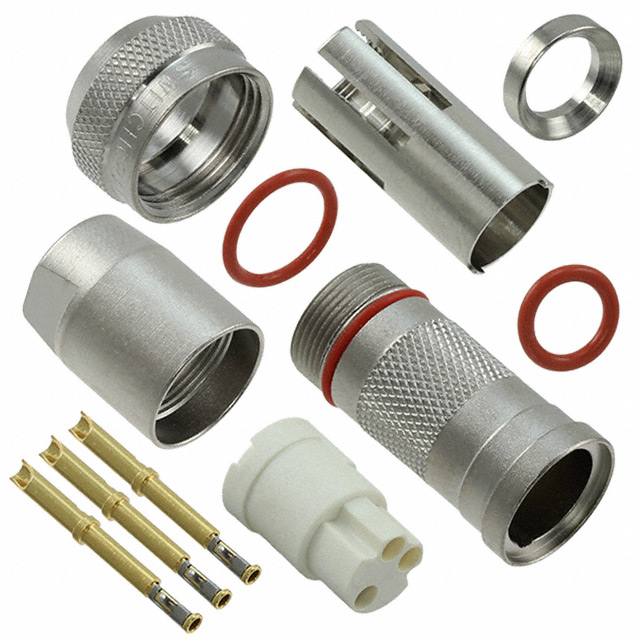

CONN PLUG FMALE 3POS GOLD CRIMP
| Part | Primary Material | Shell Finish | Shielding | Contact Finish - Mating | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Material | Insert Material | Backshell Material, Plating | Termination | Mounting Type | Orientation | Features | Applications | Ingress Protection | Voltage Rating | Shell Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Metal | Electroless Nickel | Shielded | Gold | 5.49 mm | 4.57 mm | 0.18 in | 0.216 in | 135 °C | -40 °C | Female Sockets Plug | Copper Alloy | Liquid Crystal Polymer (LCP) | Copper Alloy Nickel | Crimp Solder Cup | Free Hanging (In-Line) | Keyed | Backshell Coupling Nut | Agriculture Audio General Medical Testing Equipment & Measurement | IP66 IP67 IP68 | 125 VAC | Copper Alloy | Silver |
