79228 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

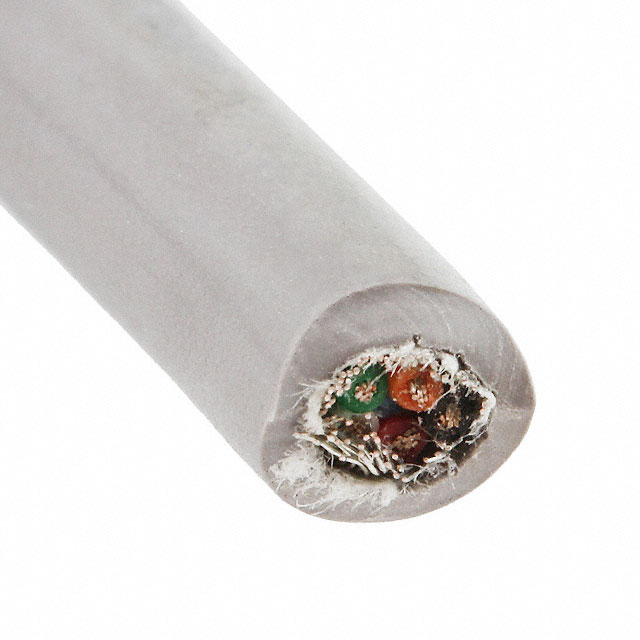

MULTICONDUCTOR CABLE, ECOGEN™ ECOFLEX®, SHIELDED, 5 CONDUCTOR, 14 AWG, 2.08 MM², 1000 FT, 305 M
| Part | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Shield Type | Jacket (Insulation) Material | Features | Cable Type | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Number of Conductors | Shield Coverage | Voltage | Wire Gauge | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | 41 | 30 AWG | 1000 ft | 304.8 m | Braid Foil | Polyphenylene Ether Modified (mPPE) | Biological Compatibility | Multi-Conductor | Copper Tinned | 0.889 mm | 0.035 in | -40 °C | 105 ░C | ISO 10993 | 5 | 70 % 100 % | 600 V | 13.5 AWG | Copper Tinned Suprashield® | 9.37 mm | 0.369 in | Polyphenylene Ether Modified (mPPE) |
