1563 Series

Catalog

HOOK-UP SOLID 20AWG BLU 1000'

Part	Length	Length	Voltage	Conductor Strand	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Qualification	Cable Type	Conductor Material	Length [x]	Length [x]

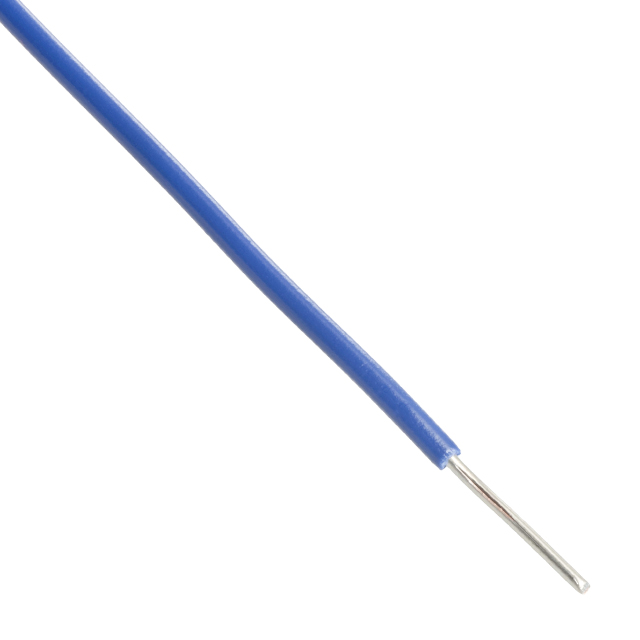

ALPHA WIRE 1563 BL001	304.8 m	1000 ft	1 kV	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	1.63 mm	0.064 in	20 AWG	0.41 mm	0.016 in	Blue	MIL-W-76B Type MW	Hook-Up	Copper Tinned
ALPHA WIRE 1563 RD001	304.8 m	1000 ft	1 kV	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	1.63 mm	0.064 in	20 AWG	0.41 mm	0.016 in	Red	MIL-W-76B Type MW	Hook-Up	Copper Tinned
ALPHA WIRE 1563 GR005			1 kV	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	1.63 mm	0.064 in	20 AWG	0.41 mm	0.016 in	Green	MIL-W-76B Type MW	Hook-Up	Copper Tinned	100 ft	30.5 m

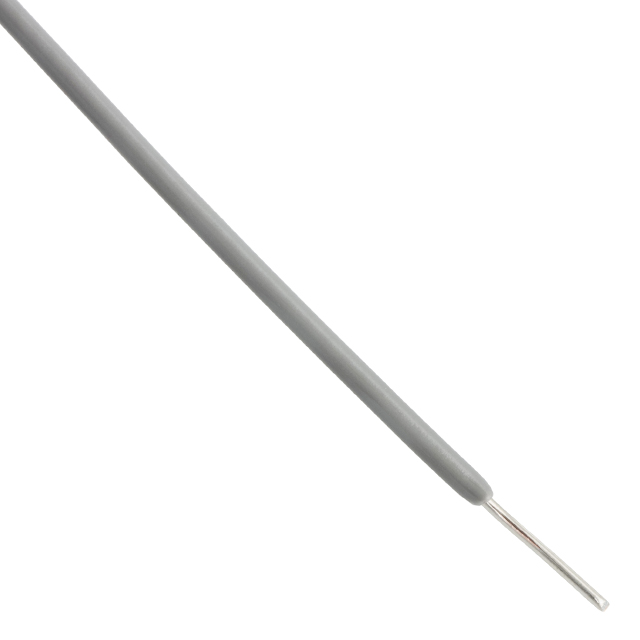

ALPHA WIRE 1563 SL001	304.8 m	1000 ft	1 kV	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	1.63 mm	0.064 in	20 AWG	0.41 mm	0.016 in	Slate	MIL-W-76B Type MW	Hook-Up	Copper Tinned
ALPHA WIRE 1563 BR001	304.8 m	1000 ft	1 kV	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	1.63 mm	0.064 in	20 AWG	0.41 mm	0.016 in	Brown	MIL-W-76B Type MW	Hook-Up	Copper Tinned
ALPHA WIRE 1563 WH001	304.8 m	1000 ft	1 kV	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	1.63 mm	0.064 in	20 AWG	0.41 mm	0.016 in	White	MIL-W-76B Type MW	Hook-Up	Copper Tinned
ALPHA WIRE 1563 RD005			1 kV	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	1.63 mm	0.064 in	20 AWG	0.41 mm	0.016 in	Red	MIL-W-76B Type MW	Hook-Up	Copper Tinned	100 ft	30.5 m
ALPHA WIRE 1563 BK005			1 kV	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	1.63 mm	0.064 in	20 AWG	0.41 mm	0.016 in	Black	MIL-W-76B Type MW	Hook-Up	Copper Tinned	100 ft	30.5 m
ALPHA WIRE 1563 OR005			1 kV	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	1.63 mm	0.064 in	20 AWG	0.41 mm	0.016 in	Orange	MIL-W-76B Type MW	Hook-Up	Copper Tinned	100 ft	30.5 m
ALPHA WIRE 1563 YL005			1 kV	Solid	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	1.63 mm	0.064 in	20 AWG	0.41 mm	0.016 in	Yellow	MIL-W-76B Type MW	Hook-Up	Copper Tinned	100 ft	30.5 m
