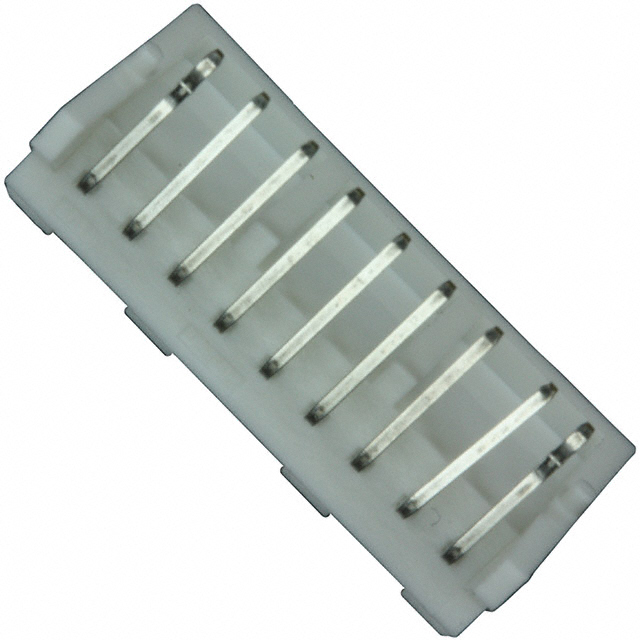

S09B-PAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 9POS 2MM
| Part | Contact Length - Post [x] | Contact Length - Post | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Termination | Insulation Material | Contact Shape | Features | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Contact Material | Fastening Type | Connector Type | Insulation Height | Insulation Height | Contact Finish - Post | Mounting Type | Style | Voltage Rating | Contact Type | Number of Positions | Shrouding | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.134 " | 3.4 mm | 3 A | 0.126 in | 3.2 mm | All | Kinked Pin Solder | Polybutylene Terephthalate (PBT) Glass Filled | Square | Board Guide | 85 °C | -25 °C | Natural | Copper Alloy | Locking Ramp | Header | 0.256 in | 6.5 mm | Tin | Right Angle Through Hole | Board to Cable/Wire | 250 V | Male Pin | 9 | Shrouded - 4 Wall | 0.079 " | 2 mm | UL94 V-0 | 1 |
