86730 Series

Catalog

2MM MTK LOW PRO JUMPER

Part	Housing Material	Pitch [x]	Pitch [x]	Height [z]	Height [z]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Gender	Type	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Color
Amphenol ICC (FCI) 86730-002LF	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	3.5 mm	0.138 in	8 çin	0.203 çm	Gold	Female Sockets	Open Top	UL94 V-0	1 x 2	2	Blue

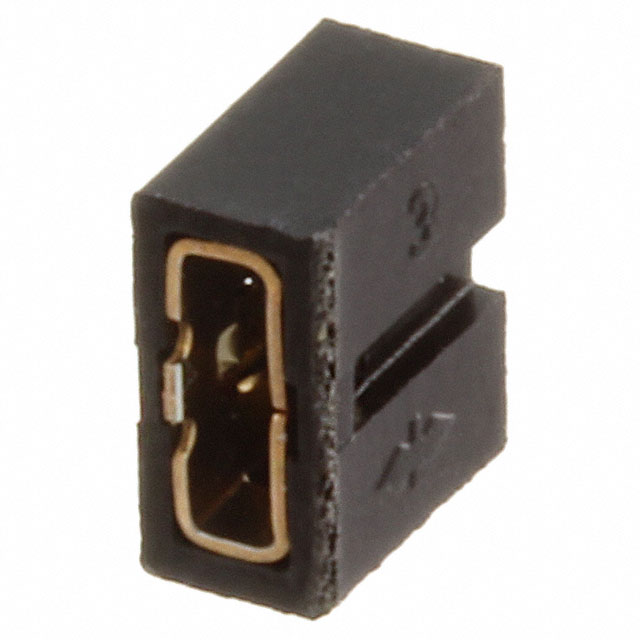

Amphenol ICC (FCI) 86730-301LF	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	3.5 mm	0.138 in	15 µin	0.38 µm	Gold	Female Sockets	Open Top	UL94 V-0	1 x 2	2	Black

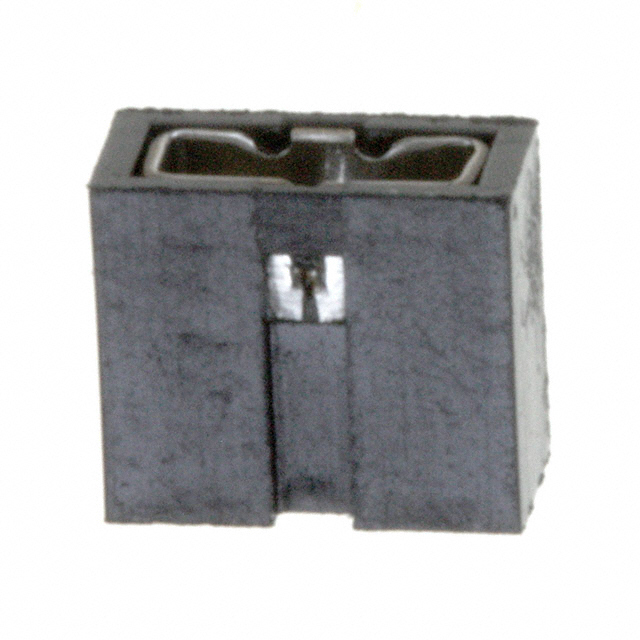

Amphenol ICC (FCI) 86730-001LF	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	3.5 mm	0.138 in	8 çin	0.203 çm	Gold	Female Sockets	Open Top	UL94 V-0	1 x 2	2	Black
