085042 Series

Manufacturer: Molex

Catalog

CONN DIN RCPT 96POS PCB GOLD

Part	Number of Positions Loaded	Contact Finish	Material Flammability Rating	Material - Insulation	Pitch [x]	Pitch [x]	Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions	Mounting Type	Features	Termination	Contact Finish Thickness	Contact Finish Thickness	Level, Class	Number of Positions Loaded	Style
Molex 0850422529	64	Gold	UL94 V-0	Polyester Thermoplastic	2.54 mm	0.1 in	C	Receptacle Female Sockets	-55 °C	125 °C	3	96	Through Hole	Mounting Clips	Solder	24 µin	0.61 µm
Molex 0850426244	64	Gold	UL94 V-0	Polyester Thermoplastic	2.54 mm	0.1 in	C	Receptacle Female Sockets	-55 °C	125 °C	3	96	Through Hole		Solder	10 Áin	0.25 Ám	3
Molex 0850424763	32	Gold	UL94 V-0	Polyester Thermoplastic	2.54 mm	0.1 in	C	Receptacle Female Sockets	-55 °C	125 °C	3	96	Through Hole		Solder	24 µin	0.61 µm
Molex 0850420385	96	Gold	UL94 V-0	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in	C	Receptacle Female Sockets	-55 °C	125 °C	3	96	Through Hole		Solder	24 µin	0.61 µm
Molex 0850420268	64	Gold	UL94 V-0	Polyester Thermoplastic	2.54 mm	0.1 in	C	Receptacle Female Sockets	-55 °C	125 °C	3	96	Through Hole		Solder	24 µin	0.61 µm
Molex 0850421079	96	Gold	UL94 V-0	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in	C	Receptacle Female Sockets	-55 °C	125 °C	3	96	Through Hole	Mounting Clips	Solder	24 µin	0.61 µm
Molex 0850424268		Gold	UL94 V-0	Polyester Thermoplastic	2.54 mm	0.1 in	C/2	Receptacle Female Sockets	-55 °C	125 °C	3	48	Through Hole		Solder	24 µin	0.61 µm		All	1/2 C

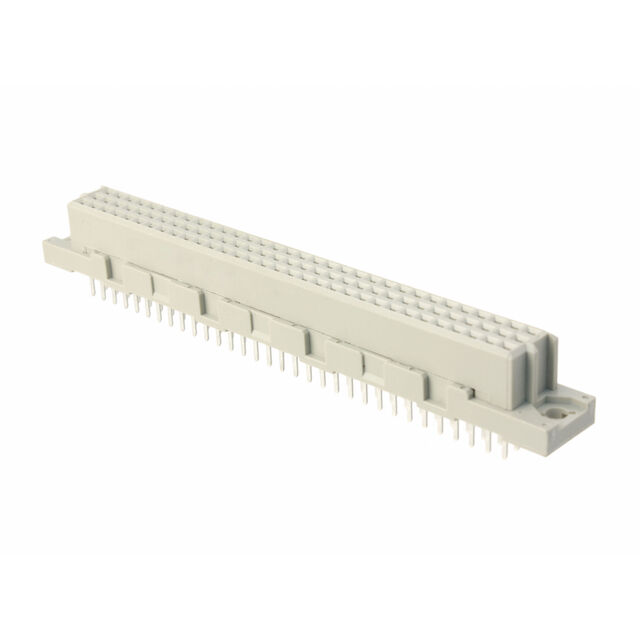

Molex 0850420270	96	Gold	UL94 V-0	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in	C	Receptacle Female Sockets	-55 °C	125 °C	3	96	Through Hole		Solder	24 µin	0.61 µm
Molex 0850421304		Gold	UL94 V-0	Polyester Thermoplastic	2.54 mm	0.1 in	C	Receptacle Female Sockets	-55 °C	125 °C	3	96	Through Hole		Solder	39.4 Áin	1 Ám	1	All
Molex 0850424696	64	Gold	UL94 V-0	Polyester Thermoplastic Glass Filled	2.54 mm	0.1 in	C	Receptacle Female Sockets	-55 °C	125 °C	3	96	Through Hole	Mounting Clips	Solder	24 µin	0.61 µm
