2564060 Series

Catalog

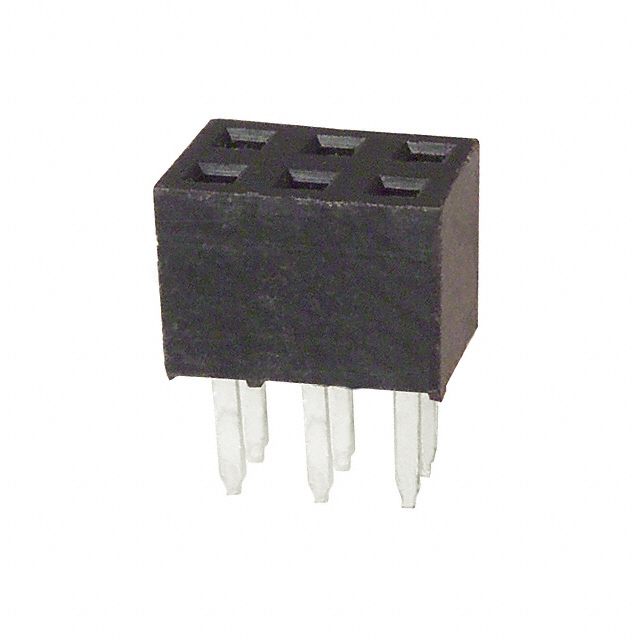

25640601RP2 ROHS COMPLIANT: YES

Part	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows [custom]	Mounting Type	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Termination	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Mating	Number of Positions	Contact Type	Contact Finish - Post	Number of Positions Loaded
NorComp Inc. 25640601RP2	Phosphor Bronze	2.54 µm	100 µin	Square	UL94 V-0	-40 C	105 ░C	Receptacle	2	Through Hole	Black	0.079 "	2 mm	0.177 in	4.5 mm	2 mm	0.079 in	0.118 in	3 mm	Solder	Gold	Push-Pull	Flash	6	Female Socket	Tin	All
