HDSP Series

Catalog

LED DISPLAYS & ACCESSORIES GREEN 571NM 0.56IN 7 SEGMENT

Part	Wavelength - Peak	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Common Pin	Power Dissipation (Max) [Max]	Current - Test	Color	Voltage - Forward (Vf) (Typ)	Number of Characters	Package / Case [x]	Package / Case [x]	Package / Case	Display Type	Digit/Alpha Size	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Lens Size [x]	Lens Size [y]	Voltage Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Style	Configuration	Current	Mounting Type	Interface	Configuration [x]	Configuration [y]	Size / Dimension [z]	Millicandela Rating [Max]	Millicandela Rating [Min]
Broadcom Limited HDSP-523G	568 nm	3.5 mcd	0.315 in	0.984 "	0.732 "	8 mm	18.6 mm	25 mm	Common Cathode	105 mW	10 mA	Green	2 V	2	15.24 mm	0.6 in	18-DIP	7-Segment	0.56 in	14.22 mm
Broadcom Limited HDSP-U103	645 nm	3.6 mcd	0.197 in	0.28 in	0.433 "	5 mm	11 mm	7.1 mm	Common Cathode	37 mW	5 mA	Red	1.7 V				10-DIP	7-Segment		0.31 in	8 mm	1	5.3 mm	0.209 in
Broadcom Limited HDSP-5603-IJ000	566 nm	2.5 mcd				0.673 "	0.315 "	0.495 "	Common Cathode	105 mW	10 mA	Green	2.1 V				10-DIP	7-Segment	0.56 in	14.22 mm		1		0.6 in 15.24 mm	12.57 mm	17.1 mm	8 mm
Broadcom Limited HDSP-4832	566 nm 583 nm 635 nm											Green (x 3) Red (x 3) Yellow (x 4)																5.08 mm	1.52 mm	2.1 V 2.2 V 2.2 V	3.5 mcd	1.9 mcd	1.9 mcd	Rectangle with Flat Top	Bar - 10 Wide DIP	20mA Yellow 30mA Green 30mA Red	Through Hole
Broadcom Limited HDSP-5601	566 nm	2.5 mcd	0.315 in	0.495 "	0.67 in	8 mm	17.02 mm	12.57 mm	Common Anode	105 mW	10 mA	Green	2.1 V				10-DIP	7-Segment	0.56 in	14.22 mm		1		0.6 in 15.24 mm
Broadcom Limited HDSP-2501			2.79 "	0.76 in	0.26 in	70.87 mm						Yellow													19.41 mm													8-Bit Parallel	5	7	6.6 mm	20.28 mcd	2.5 mcd

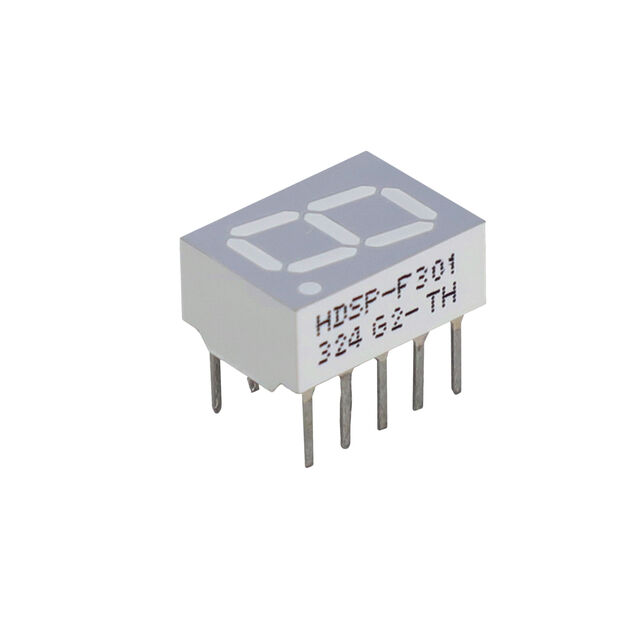

Broadcom Limited HDSP-F301-GH000	583 nm	0.8 mcd	0.508 in	0.385 "	0.25 "	12.9 mm	6.36 mm	9.79 mm	Common Anode	80 mW	20 mA	Yellow	2.2 V				10-DIP (0.300" 7.62mm)	7-Segment	0.4 in	10.16 mm		1
Broadcom Limited HDSP-5721-HI000	583 nm	2.75 mcd	0.67 "	0.99 "	0.315 in	17.02 mm	8 mm	25.15 mm	Common Anode	80 mW	20 mA	Yellow	2.1 V	2	15.24 mm	0.6 in	18-DIP	7-Segment	0.56 in	14.22 mm
Broadcom Limited HDSP-A151	645 nm	14 mcd	0.24 "	0.3 "	0.5 in	6.09 mm	12.7 mm	7.62 mm	Common Anode	96 mW	20 mA	Red	1.8 V				10-DIP	7-Segment	0.3 in	7.62 mm		1	5.08 mm	0.2 in
Broadcom Limited HDSP-2132			1.68 "	0.39 in	0.25 "	42.72 mm	6.35 mm	9.91 mm				Red																										8-Bit Parallel	5	7		20.28 mcd	2.5 mcd
