BU400Z Series

Catalog

CONN IC DIP SOCKET 40POS GOLD

Part	Current Rating (Amps)	Termination Post Length	Termination Post Length	Material Flammability Rating	Contact Resistance	Type [custom]	Type [custom]	Type	Contact Finish - Mating	Contact Finish - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Post	Pitch - Post	Contact Material - Mating	Termination	Number of Positions or Pins (Grid)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Features	Housing Material	Contact Material - Post [custom]

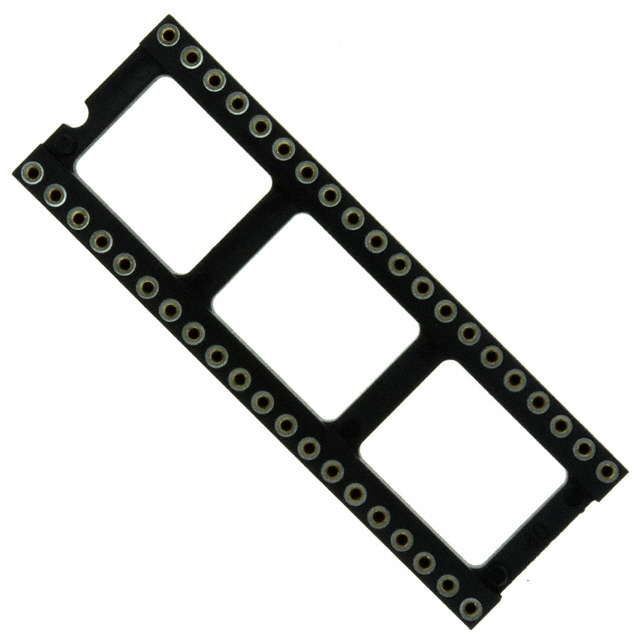

On Shore Technology Inc. BU400Z-178-HT	1 A	0.059 "	1.5 mm	UL94 V-0	7 mOhm	15.24 mm	0.6 in	DIP	Gold	Copper	Surface Mount	0.1 "	2.54 mm	78.7 µin	2 µm	0.1 in	2.54 mm	Beryllium Copper	Solder	40	-55 C	125 °C	Flash	Open Frame	Polybutylene Terephthalate (PBT) Glass Filled	Brass
