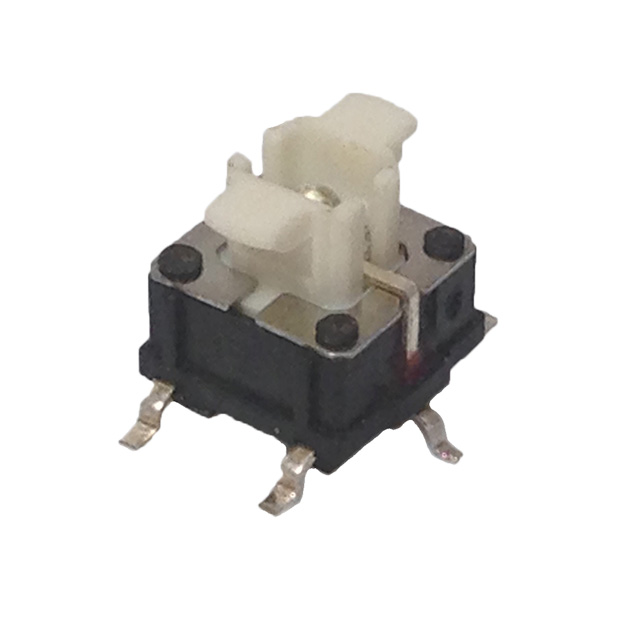

TL3265 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Switch Function	Actuator Height off PCB, Vertical [z]	Mounting Type	Outline [x]	Outline [y]	Actuator Type	Termination Style	Illumination Type, Color	Contact Rating @ Voltage	Illumination	Circuit	Operating Force	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Shape	Size [diameter]	Size [z]	For Use With/Related Products	Switch Type	Color	Actuator Height off PCB, Vertical

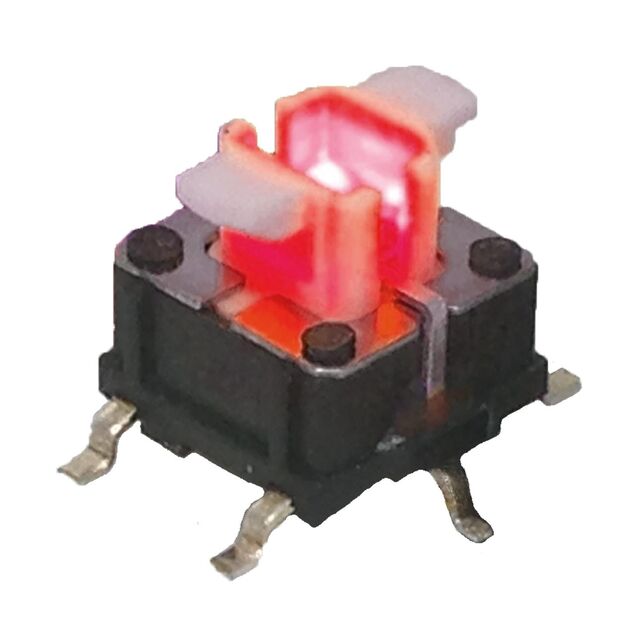

E-Switch TL3265RQNN	0.2 mm	500000 Cycles	Off-Mom	7.2 mm	Surface Mount	7 mm	6.8 mm	Plunger for Cap	Gull Wing	LED Red	0.05 A 12 VDC	Illuminated	SPST-NO	160 gf	Top Actuated	85 °C	-40 C

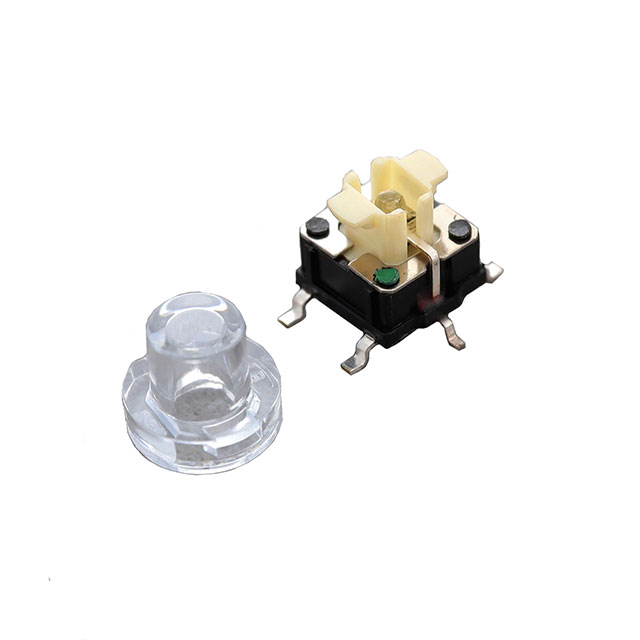

E-Switch TL3265GQTCLR	0.2 mm	500000 Cycles	Off-Mom	12.7 mm	Surface Mount	7 mm	6.8 mm	Round Button	Gull Wing	Green LED	0.05 A 12 VDC	Illuminated	SPST-NO	160 gf	Top Actuated	85 °C	-40 C

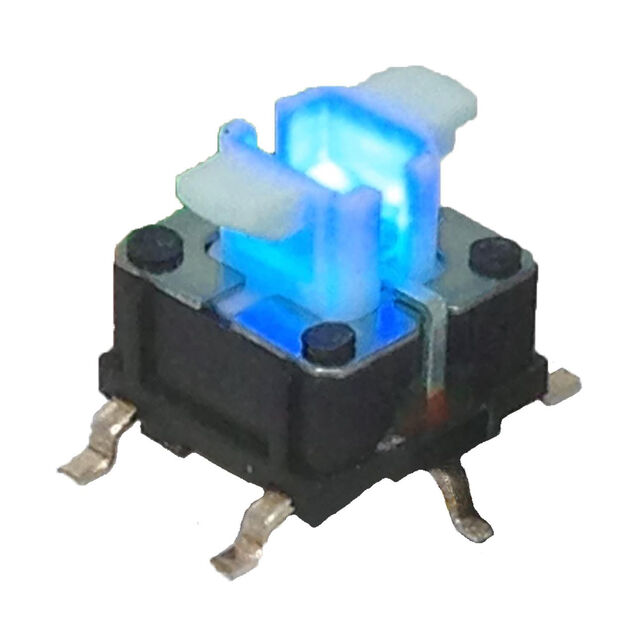

E-Switch TL3265BQNN	0.2 mm	500000 Cycles	Off-Mom	7.2 mm	Surface Mount	7 mm	6.8 mm	Plunger for Cap	Gull Wing	Blue LED	0.05 A 12 VDC	Illuminated	SPST-NO	160 gf	Top Actuated	85 °C	-40 C
E-Switch TL3265BQSCLR	0.2 mm	500000 Cycles	Off-Mom	12 mm	Surface Mount	7 mm	6.8 mm	Round Button	Gull Wing	Blue LED	0.05 A 12 VDC	Illuminated	SPST-NO	160 gf	Top Actuated	85 °C	-40 C

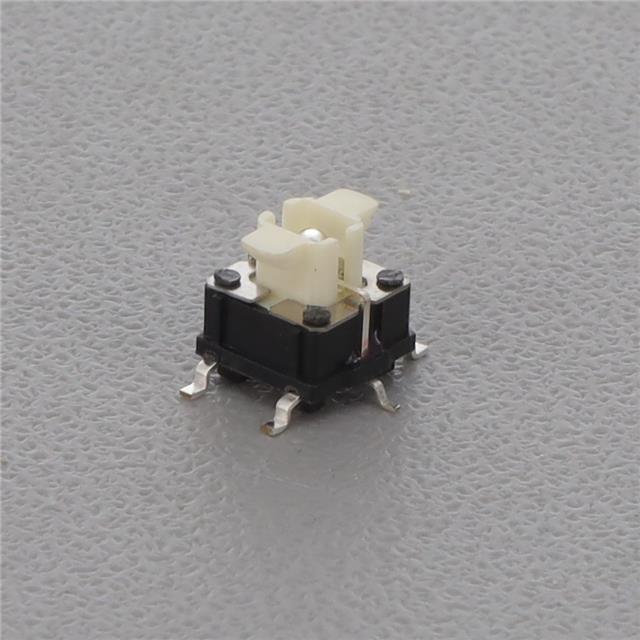

E-Switch TL3265GQSCLR	0.2 mm	500000 Cycles	Off-Mom	12 mm	Surface Mount	7 mm	6.8 mm	Round Button	Gull Wing	Green LED	0.05 A 12 VDC	Illuminated	SPST-NO	160 gf	Top Actuated	85 °C	-40 C
E-Switch TL3265RGQTCLR	0.2 mm	500000 Cycles	Off-Mom	12.35 mm	Surface Mount	7 mm	6.8 mm	Round Button	Gull Wing	Green/Red LED	0.05 A 12 VDC	Illuminated	SPST-NO	160 gf	Top Actuated	85 °C	-40 C	1.95 VDC 2.1 VDC

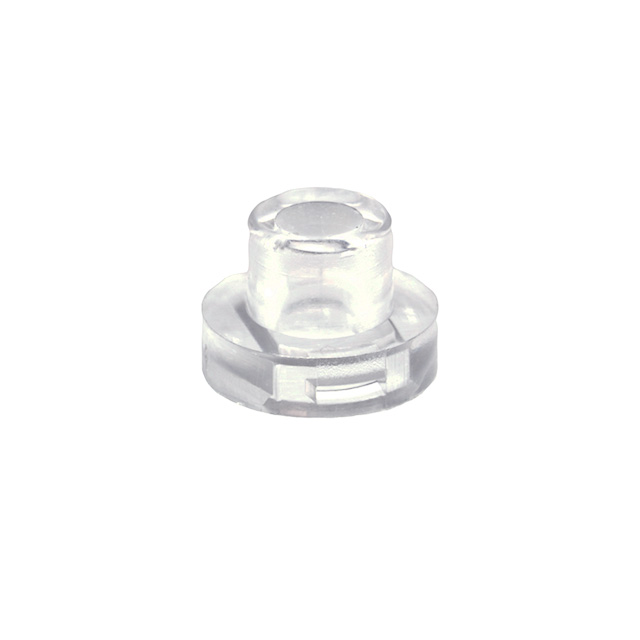

E-Switch TL3265TBTNCLR					Snap Fit							Illuminated							Round	4.7 mm	6.5 mm	TL3265 Series	Tactile	Clear

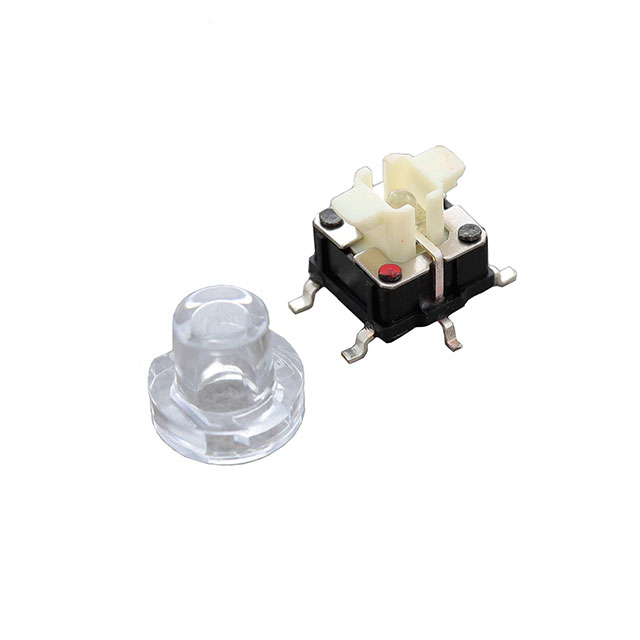

E-Switch TL3265RQSCLR	0.2 mm	500000 Cycles	Off-Mom	12 mm	Surface Mount	7 mm	6.8 mm	Round Button	Gull Wing	LED Red	0.05 A 12 VDC	Illuminated	SPST-NO	160 gf	Top Actuated	85 °C	-40 C
E-Switch TL3265YQSCLR	0.2 mm	500000 Cycles	Off-Mom		Surface Mount	7 mm	6.8 mm	Round Button	Gull Wing	LED Yellow	0.05 A 12 VDC	Illuminated	SPST-NO	160 gf	Top Actuated	85 °C	-40 C	2 VDC							11.65 mm
