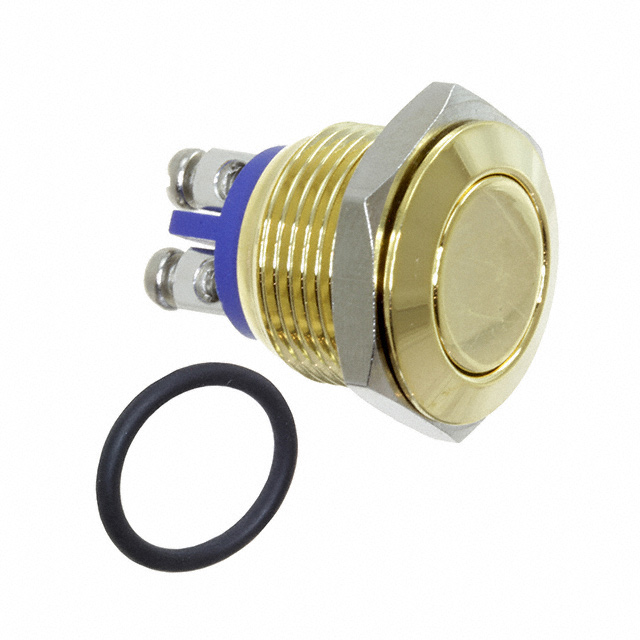

PV2 Series

Manufacturer: E-Switch

Catalog

SWITCH PB SPST-NO 2A 48V

Part	Electrical Life	Mechanical Life	Switch Function	Type	Color - Actuator/Cap	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Ingress Protection	Termination Style	Actuator Type	Circuit	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking
E-Switch PV2H24011M25	200000 Cycles	1000000 Cycles	Off-Mom	Anti-Vandal	Black	48 V	16 mm	IP65 - Dust Tight Water Resistant	Solder Lug	Button Round	SPST-NO	Panel Mount Front	2 A	55 °C	-20 ░C

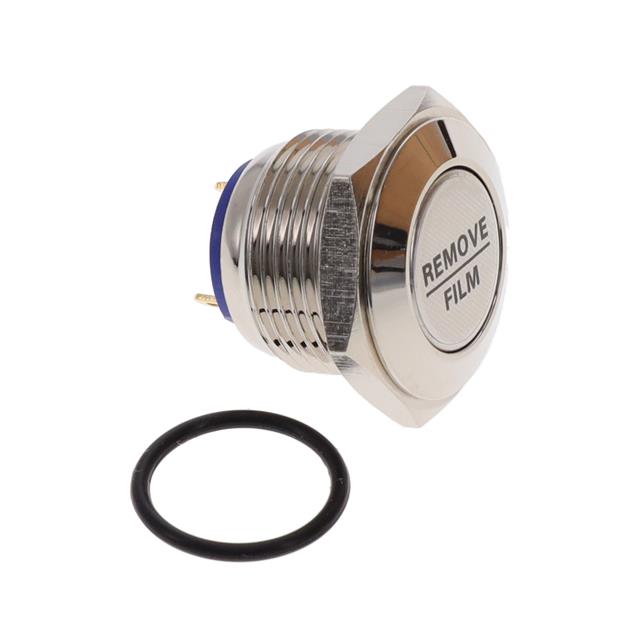

E-Switch PV2F240NN	200000 Cycles	1000000 Cycles	Off-Mom	Anti-Vandal	Silver	48 V	16 mm	IP65 - Dust Tight Water Resistant	Solder Lug	Button Flush Round	SPST-NO	Panel Mount Front	2 A	55 °C	-20 ░C	No Marking
E-Switch PV2F240SS-M01			Off-Mom	Anti-Vandal	Silver	48 V	16 mm	IP65 - Dust Tight Water Resistant	Solder Lug	Button Flush Round	SPST-NO	Panel Mount Front	2 A	55 °C	-20 ░C
E-Switch PV2S640GG	200000 Cycles	1000000 Cycles	Off-Mom	Anti-Vandal	Gold	48 V	16 mm	IP65 - Dust Tight Water Resistant	Screw Terminal	Button Domed Round	SPST-NO	Panel Mount Front	2 A	55 °C	-20 ░C	No Marking
E-Switch PV2H24011-R2			Off-Mom	Anti-Vandal	Black	48 V	16 mm	IP65 - Dust Tight Water Resistant	Solder Quick Connect - 0.079" (2.0mm)	Button Round	SPST-NO	Panel Mount Front	2 A	55 °C	-20 ░C
E-Switch PV2F240BB			Off-Mom	Anti-Vandal	Silver	48 V	16 mm	IP65 - Dust Tight Water Resistant	Solder Lug	Button Flush Round	SPST-NO	Panel Mount Front	2 A	55 °C	-20 ░C
E-Switch PV2F64011			Off-Mom	Anti-Vandal	Black	48 V	16 mm	IP65 - Dust Tight Water Resistant	Screw Terminal	Button Flush Round	SPST-NO	Panel Mount Front	2 A	55 °C	-20 ░C	No Marking
E-Switch PV2H240BBG	200000 Cycles	1000000 Cycles	Off-Mom	Anti-Vandal	Silver	48 V	16 mm	IP65 - Dust Tight Water Resistant	Solder Lug	Button Round	SPST-NO	Panel Mount Front	2 A	55 °C	-20 ░C

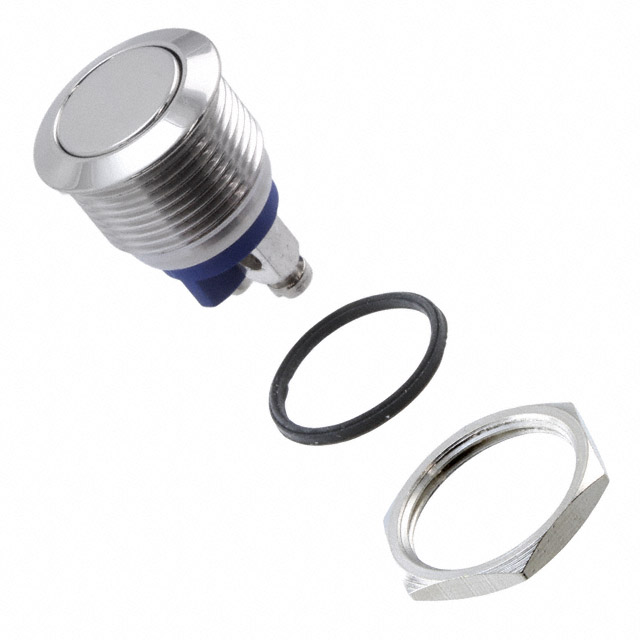

E-Switch PV2F640SS	200000 Cycles	1000000 Cycles	Off-Mom	Anti-Vandal	Silver	48 V	16 mm	IP65 - Dust Tight Water Resistant	Screw Terminal	Button Flush Round	SPST-NO	Panel Mount Front	2 A	55 °C	-20 ░C	No Marking
E-Switch PV2F240SS-M05			Off-Mom	Anti-Vandal	Silver	48 V	16 mm	IP65 - Dust Tight Water Resistant	Solder Lug	Button Flush Round	SPST-NO	Panel Mount Front	2 A	55 °C	-20 ░C
