PBC30 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 60POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Material	Mounting Type	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions Loaded	Shrouding	Overall Contact Length	Overall Contact Length	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Post	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions	Termination	Contact Type	Style	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Rows	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]

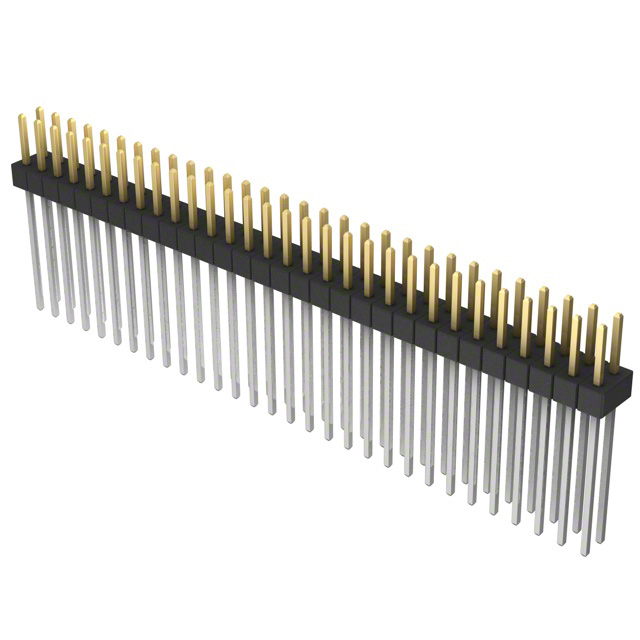

Sullins Connector Solutions PBC30DAFN	2.54 µm	100 µin	Phosphor Bronze	Square	15.75 mm	0.62 "	Polybutylene Terephthalate (PBT)	Through Hole	0.23 in	5.84 mm	0.1 in	2.54 mm	2	-65 ░C	125 °C	Header Breakaway	All	Unshrouded	0.95 in	24.13 mm	Push-Pull	0.1 "	2.54 mm	Black	0.25 µm	10 µin	3 A	Tin	0.1 in	2.54 mm	Gold	60	Solder	Male Pin	Board to Board Cable	UL94 V-0

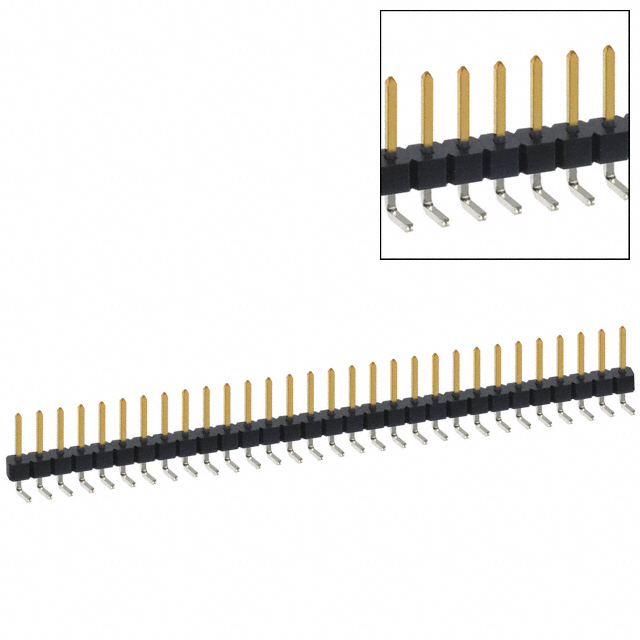

Sullins Connector Solutions PBC30SBAN	2.54 µm	100 µin	Phosphor Bronze	Square			Polybutylene Terephthalate (PBT)	Right Angle Through Hole	0.23 in	5.84 mm				-65 ░C	125 °C	Header Breakaway	All	Unshrouded			Push-Pull	0.1 "	2.54 mm	Black	0.25 µm	10 µin	3 A	Tin	0.14 in	3.56 mm	Gold	30	Solder	Male Pin	Board to Board Cable	UL94 V-0	0.1 in	2.54 mm	1
Sullins Connector Solutions PBC30DBAN	2.54 µm	100 µin	Phosphor Bronze	Square			Polybutylene Terephthalate (PBT)	Right Angle Through Hole	0.23 in	5.84 mm	0.1 in	2.54 mm	2	-65 ░C	125 °C	Header Breakaway	All	Unshrouded			Push-Pull	0.1 "	2.54 mm	Black	0.25 µm	10 µin	3 A	Tin			Gold	60	Solder	Male Pin	Board to Board Cable	UL94 V-0	0.1 in	2.54 mm		6.1 mm	0.24 in
Sullins Connector Solutions PBC30SAGN	2.54 µm	100 µin	Phosphor Bronze	Square			Polybutylene Terephthalate (PBT)	Through Hole	0.23 in	5.84 mm				-65 ░C	125 °C	Header Breakaway	All	Unshrouded	1.05 in	26.67 mm	Push-Pull	0.1 "	2.54 mm	Black	0.25 µm	10 µin	3 A	Tin	0.1 in	2.54 mm	Gold	30	Solder	Male Pin	Board to Board Cable	UL94 V-0	0.72 "	18.29 mm	1

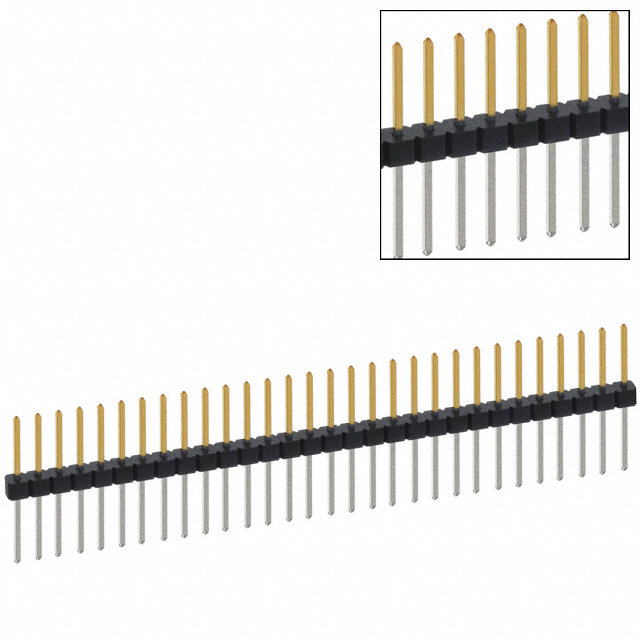

Sullins Connector Solutions PBC30SFBN	2.54 µm	100 µin	Phosphor Bronze	Square			Polybutylene Terephthalate (PBT)	Through Hole	0.318 in	8.08 mm				-65 ░C	125 °C	Header Breakaway	All	Unshrouded	0.638 in	16.21 mm	Push-Pull	0.1 "	2.54 mm	Black	0.25 µm	10 µin	3 A	Tin	0.1 in	2.54 mm	Gold	30	Solder	Male Pin	Board to Board Cable	UL94 V-0	0.22 in	5.58 mm	1
Sullins Connector Solutions PBC30DFBN	2.54 µm	100 µin	Phosphor Bronze	Square			Polybutylene Terephthalate (PBT)	Through Hole	0.318 in	8.08 mm	0.1 in	2.54 mm	2	-65 ░C	125 °C	Header Breakaway	All	Unshrouded	0.638 in	16.21 mm	Push-Pull	0.1 "	2.54 mm	Black	0.25 µm	10 µin	3 A	Tin	0.1 in	2.54 mm	Gold	60	Solder	Male Pin	Board to Board Cable	UL94 V-0	0.22 in	5.58 mm
Sullins Connector Solutions PBC30DBBN	2.54 µm	100 µin	Phosphor Bronze	Square	5.08 mm	0.2 "	Polybutylene Terephthalate (PBT)	Right Angle Through Hole	0.23 in	5.84 mm	0.1 in	2.54 mm	2	-65 ░C	125 °C	Header Breakaway	All	Unshrouded			Push-Pull	0.1 "	2.54 mm	Black	0.25 µm	10 µin	3 A	Tin			Gold	60	Solder	Male Pin	Board to Board Cable	UL94 V-0				6.1 mm	0.24 in
Sullins Connector Solutions PBC30SACN	2.54 µm	100 µin	Phosphor Bronze	Square			Polybutylene Terephthalate (PBT)	Through Hole	0.23 in	5.84 mm				-65 ░C	125 °C	Header Breakaway	All	Unshrouded	0.65 in	16.51 mm	Push-Pull	0.1 "	2.54 mm	Black	0.25 µm	10 µin	3 A	Tin	0.1 in	2.54 mm	Gold	30	Solder	Male Pin	Board to Board Cable	UL94 V-0	0.32 in	8.13 mm	1
Sullins Connector Solutions PBC30SFAN	2.54 µm	100 µin	Phosphor Bronze	Square			Polybutylene Terephthalate (PBT)	Through Hole	0.318 in	8.08 mm				-65 ░C	125 °C	Header Breakaway	All	Unshrouded			Push-Pull	0.1 "	2.54 mm	Black	0.25 µm	10 µin	3 A	Tin	0.1 in	2.54 mm	Gold	30	Solder	Male Pin	Board to Board Cable	UL94 V-0	0.12 in	3.05 mm	1			13.67 mm	0.538 in
Sullins Connector Solutions PBC30DAAN	2.54 µm	100 µin	Phosphor Bronze	Square			Polybutylene Terephthalate (PBT)	Through Hole	0.23 in	5.84 mm	0.1 in	2.54 mm	2	-65 ░C	125 °C	Header Breakaway	All	Unshrouded			Push-Pull	0.1 "	2.54 mm	Black	0.25 µm	10 µin	3 A	Tin	0.1 in	2.54 mm	Gold	60	Solder	Male Pin	Board to Board Cable	UL94 V-0	0.12 in	3.05 mm				11.43 mm	0.45 in
