3417 Series

Catalog

CONN SPADE TERM 10-12AWG #10 YEL

Part	Material - Insulation	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Terminal Type	Features	Width - Outer Edges	Width - Outer Edges	Color	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Length - Ring Center to Termination	Length - Ring Center to Termination	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Stud/Tab Size	Length - Overall [x]	Length - Overall	Mounting Type	Termination	Insulation	Length - Termination	Length - Termination	Length - Overall [x]	Contact Finish	Stud/Tab Size	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]

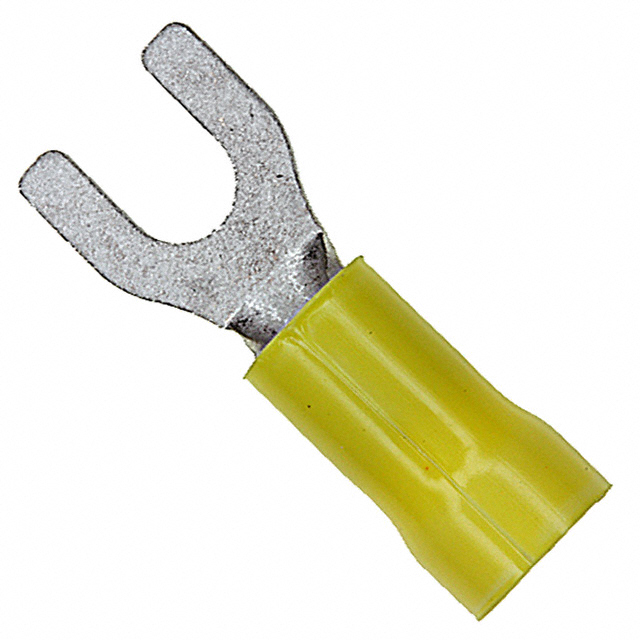

TE Connectivity Raychem Cable Protection 34176	Poly-Vinyl Chloride (PVC)	5 mm	0.197 in	Standard	Serrated Termination	10.31 mm	0.406 in	Yellow	Copper	12 AWG	10 AWG	7.52 mm	0.296 in	0.25 "	3.81 mm	0.15 "	6.35 mm	10 Stud	1.095 in	27.81 mm	Free Hanging (In-Line)	Crimp	Insulated	0.591 in	15.01 mm

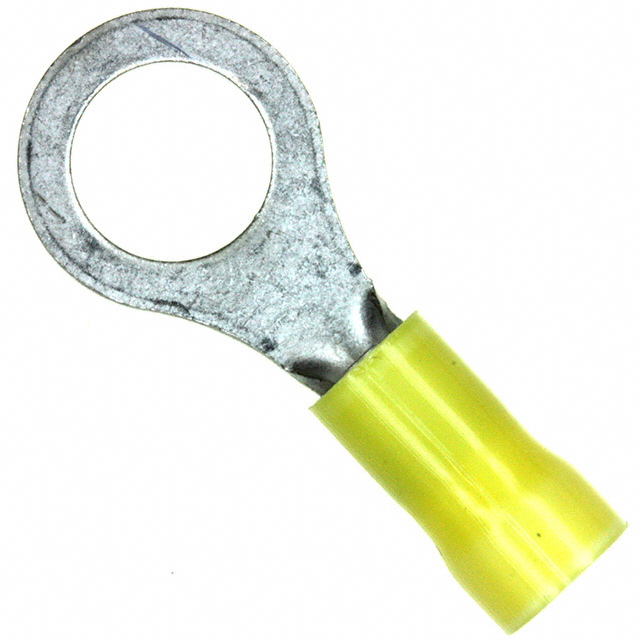

TE Connectivity Raychem Cable Protection 34173	Poly-Vinyl Chloride (PVC)			Circular	Serrated Termination			Yellow	Copper	12 AWG	10 AWG			0.25 "	3.81 mm	0.15 "	6.35 mm		1.421 in		Free Hanging (In-Line)	Crimp	Insulated			36.09 mm	Tin	3/8 Stud	0.04 in	1.02 mm	0.593 in	15.06 mm
