32883 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

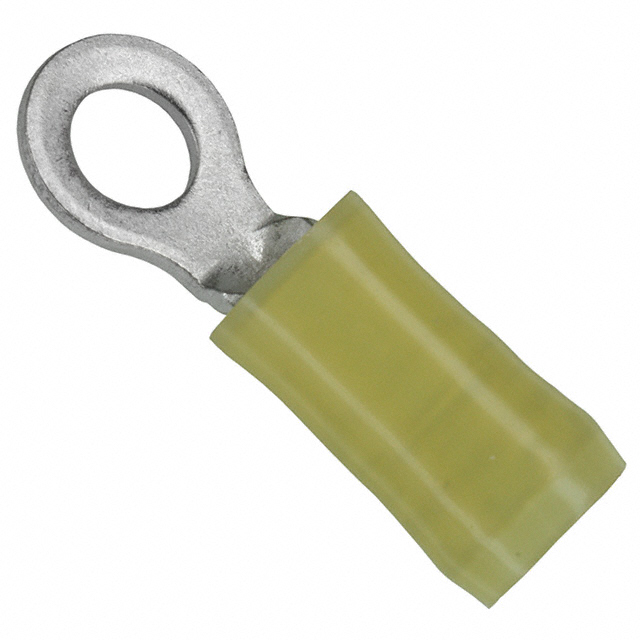

CONN RING CIRC 10-12AWG #10
| Part | Thickness | Thickness | Mounting Type | Material - Insulation | Contact Material | Color | Length - Overall [x] | Length - Overall [x] | Insulation | Stud/Tab Size | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Width - Outer Edges [x] | Width - Outer Edges [x] | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Features | Terminal Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.04 in | 1.02 mm | Free Hanging (In-Line) | Nylon Polyamide (PA) | Copper | Yellow | 26.57 mm | 1.046 in | Insulated | 10 Stud | 0.15 " | 3.81 mm | 0.23 in | 5.84 mm | 0.343 in | 8.71 mm | 12 AWG | 10 AWG | Tin | Serrated Termination | Circular | Crimp |
