001602 Series

Manufacturer: Molex

Catalog

CONN SOCKET 32-36AWG CRIMP GOLD

Part	Pin or Socket	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination

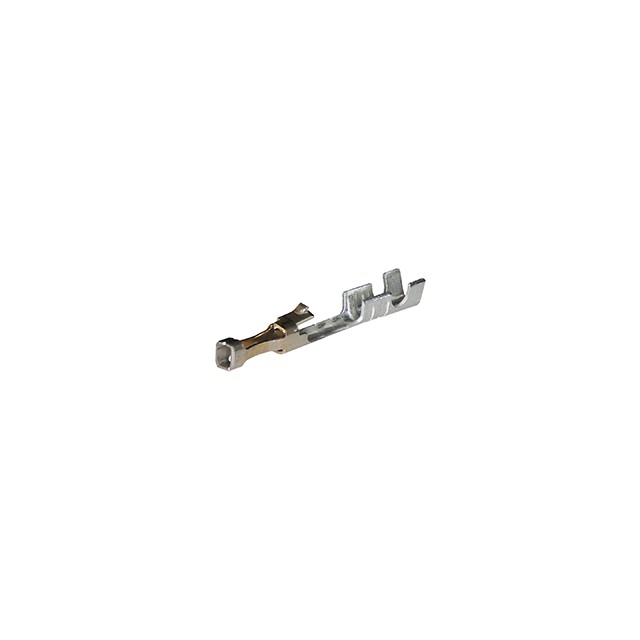

Molex 0016021123	Socket	Gold	30 Áin	0.76 Ám	32 AWG	36 AWG	Crimp
Molex 0016020139	Socket	Gold	50 µin	1.27 µm	24 AWG	30 AWG	Crimp

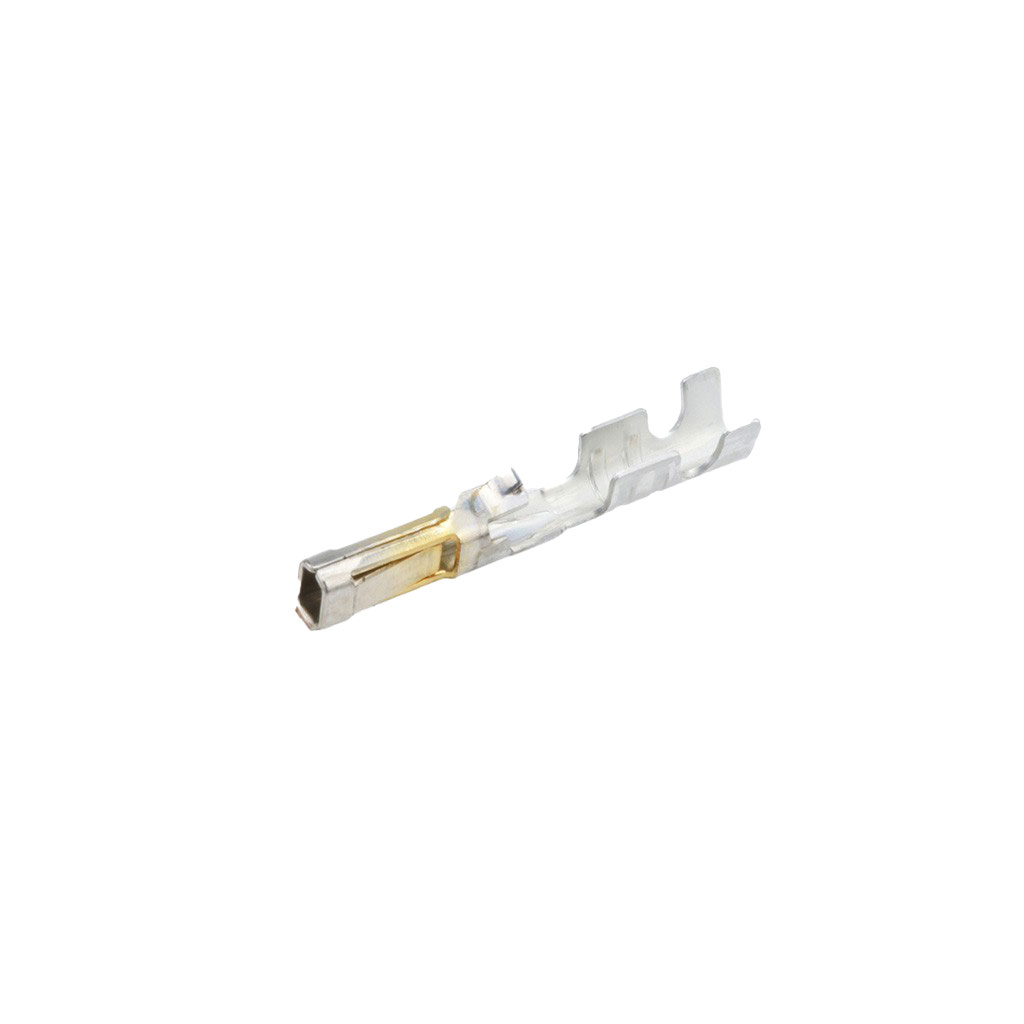

Molex 0016020085	Socket	Gold	30 Áin	0.76 Ám	32 AWG	36 AWG	Crimp

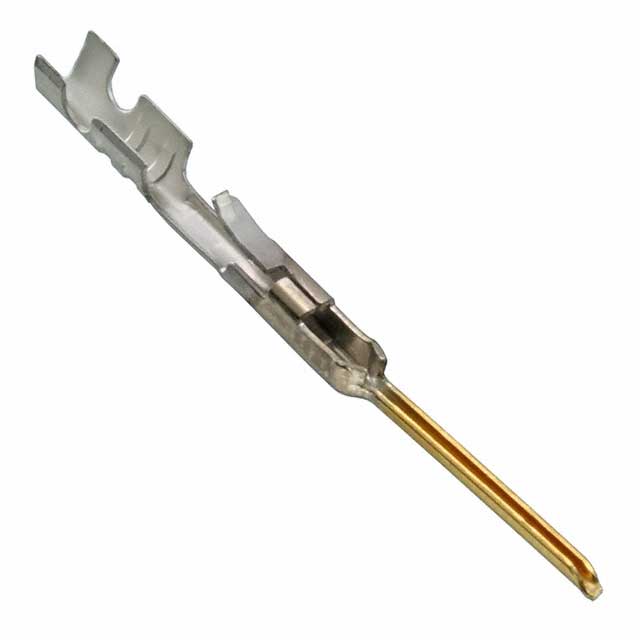

Molex 0016020081	Pin	Gold	15 µin	0.38 µm	22 AWG	24 AWG	Crimp

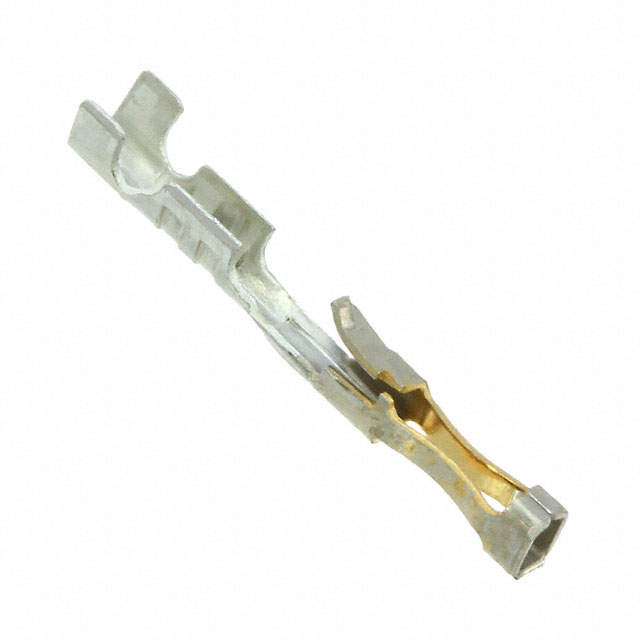

Molex 0016021109	Socket	Gold	15 µin	0.38 µm	24 AWG	30 AWG	Crimp

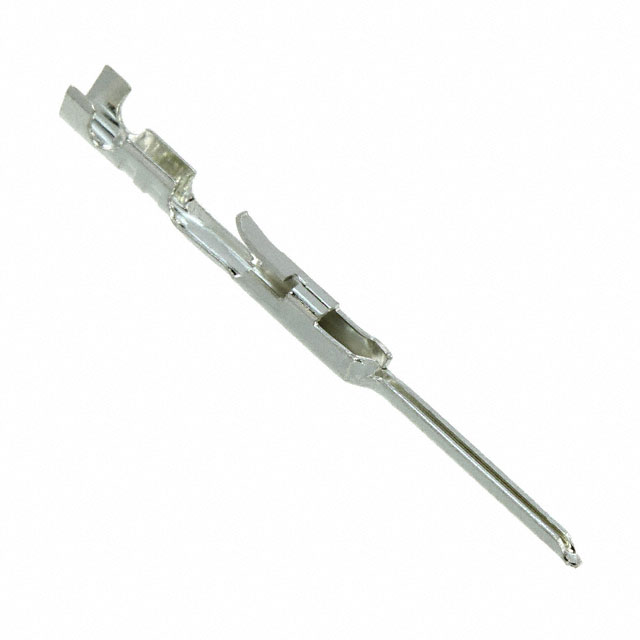

Molex 0016020108	Pin	Tin	150 Áin	3.81 Ám	24 AWG	30 AWG	Crimp

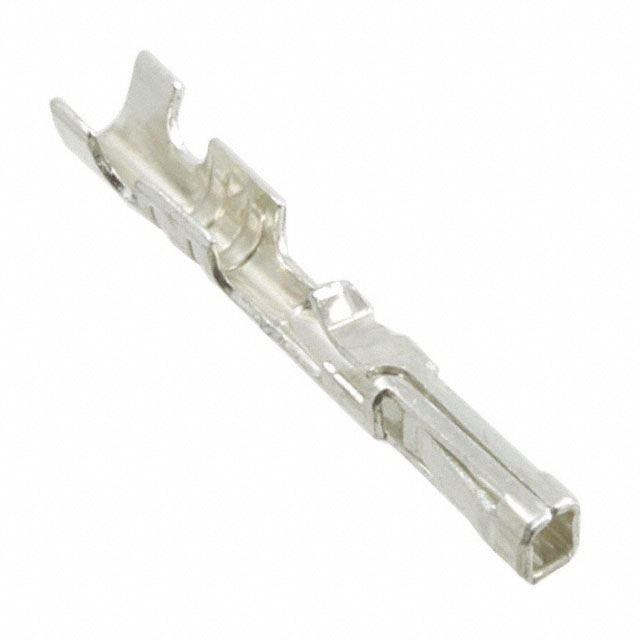

Molex 0016020102	Socket	Tin	150 Áin	3.81 Ám	22 AWG	24 AWG	Crimp

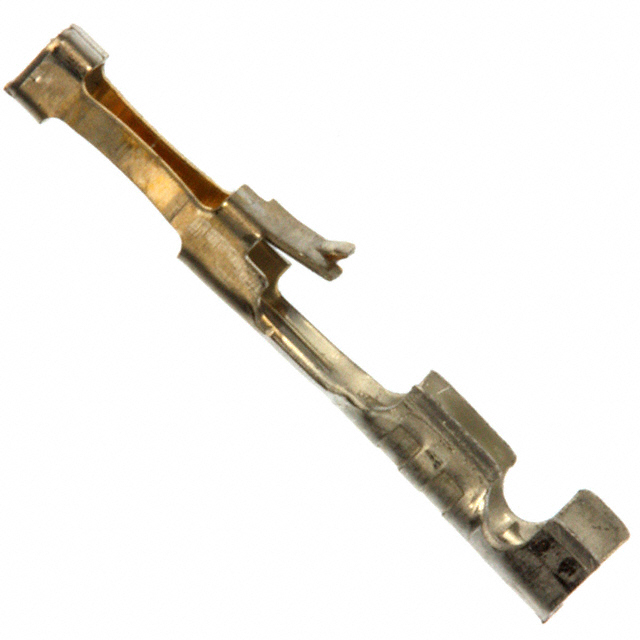

Molex 0016021117	Socket	Gold	30 Áin	0.76 Ám	24 AWG	30 AWG	Crimp
Molex 0016020080	Pin	Gold	30 Áin	0.76 Ám	32 AWG	36 AWG	Crimp

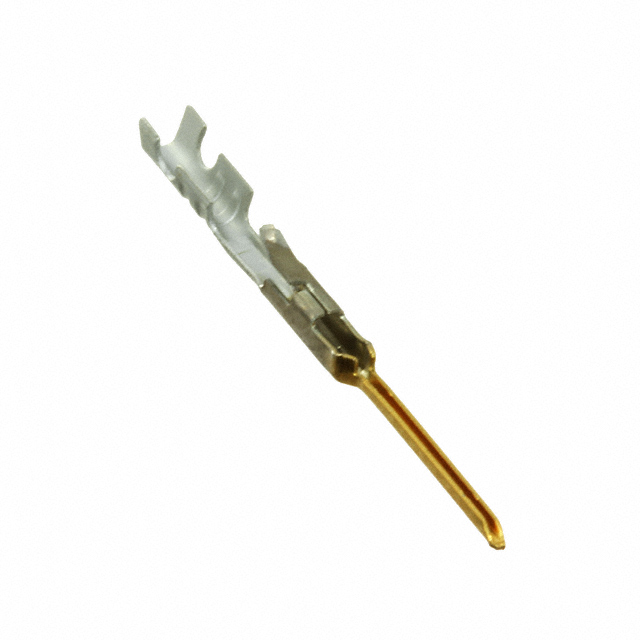

Molex 0016020117	Pin	Gold	30 Áin	0.76 Ám	22 AWG	24 AWG	Crimp
