PC Series

Catalog

PLUGGABLE TERMINAL BLOCKS 9 POS 7.62MM PITCH PLUG 24-8 AWG SCREW

Part	Material Flammability Rating	Insulation Height	Insulation Height	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Wire Strip Length	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Housing Material	Screw Size	Color	Positions Per Level	Mounting Type	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Mating Finish	Current - IEC	Type	Plug Wire Entry	Features	Current - UL	Number of Positions	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Pitch	Pitch	Termination Style	Header Orientation	Voltage - UL	Contact Tail Length	Contact Tail Length	Header Orientation

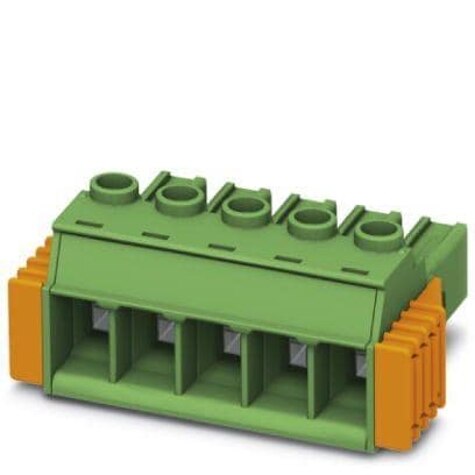

Phoenix Contact 1778133	UL94 V-0	0.776 "	19.7 mm	0.8 Nm	0.5 Nm	7.1 Lb-In	4.4 Lb-In	10 mm	10 mm˛	0.2 mm˛	Polyamide (PA) Nylon	M3	Green	9	Free Hanging (In-Line)	1	24 AWG	8 AWG	Tin	41 A	Plug Female Sockets	180 °	Latch Lock	41 A	9	10 mm²	0.2 mm²	1 kV	0.3 in	7.62 mm	Screw - Rising Cage Clamp
Phoenix Contact 1999026													Green	4	Through Hole	1			Silver	76 A	Header Male Pins Shrouded (4 Side)		Mating and Mounting Flange	66 A	4			1 kV	0.4 in	10.16 mm	Solder	90° Right Angle	300 V

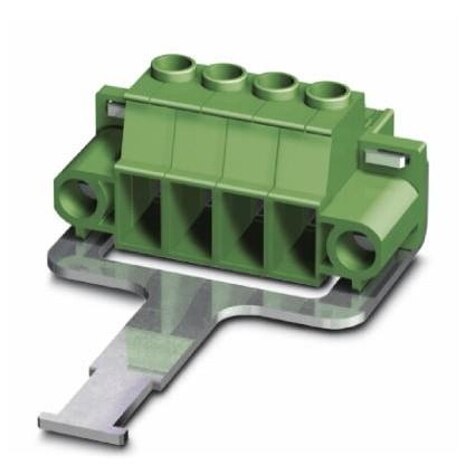

Phoenix Contact 1809474													Black	2	Through Hole	1			Tin	41 A	Header Male Pins Shrouded (4 Side)		Latch Lock		2				0.3 in	7.62 mm	Solder	90° Right Angle
Phoenix Contact 1828333													Green	11	Free Hanging (In-Line)	1	30 AWG	10 AWG	Tin	20 A	Plug Female Sockets	180 °	Mating Flange	5 A	11	4 mm²	0.2 mm²	1 kV	0.3 in	7.62 mm	Screw - Rising Cage Clamp
Phoenix Contact 1729726													Black	8	Through Hole	1			Tin	20 A	Header Male Pins Shrouded (4 Side)				8			400 V	0.3 in	7.62 mm	Solder	90° Right Angle
Phoenix Contact 1783940													Black	4	Free Hanging (In-Line)	1	24 AWG	8 AWG	Tin	41 A	Plug Female Sockets	180 °	Mating Flange Retention Latches (Non-Wire Side)	41 A	4	10 mm²	0.2 mm²	1 kV	0.3 in	7.62 mm	Screw - Rising Cage Clamp
Phoenix Contact 1777833													Green	2	Free Hanging (In-Line)	1	24 AWG	8 AWG	Tin	41 A	Plug Female Sockets	180 °	Mating Flange Retention Latches (Non-Wire Side)	41 A	2	10 mm²	0.2 mm²	1 kV	0.3 in	7.62 mm	Screw - Rising Cage Clamp
Phoenix Contact 1996388	UL94 V-0	0.528 in	13.4 mm								Polyamide (PA) Nylon		Green	9	Through Hole	1			Silver	76 A	Header Male Pins Shrouded (4 Side)		Mating and Mounting Flange	66 A	9			1 kV	0.4 in	10.16 mm	Solder	Right Angle Under Board	300 V	0.157 in	4 mm	90 °
Phoenix Contact 1777817	UL94 V-0	0.776 "	19.7 mm	0.8 Nm	0.5 Nm	7.1 Lb-In	4.4 Lb-In	10 mm			Polyamide (PA) Nylon	M3	Green	11	Free Hanging (In-Line)	1	24 AWG	8 AWG	Tin	41 A	Plug Female Sockets	180 °		41 A	11	10 mm²	0.2 mm²	1 kV	0.3 in	7.62 mm	Screw - Rising Cage Clamp

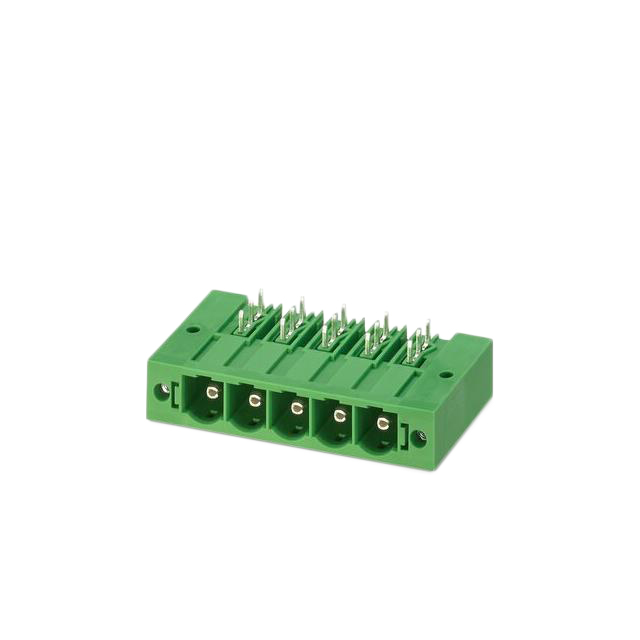

Phoenix Contact 1996333	UL94 V-0	0.528 in	13.4 mm								Polyamide (PA) Nylon		Green	4	Through Hole	1			Silver	76 A	Header Male Pins Shrouded (4 Side)		Mating and Mounting Flange	66 A	4			1 kV	0.4 in	10.16 mm	Solder	Right Angle Under Board	300 V	0.157 in	4 mm	90 °
