JL04V Series
Manufacturer: JAE Electronics
Beta
⌘K
STANDARD CIRCULAR CONNECTOR SOLDER TYPE CABLE CLAMP
| Part | Features | Material | Shielding | Plating | Primary Material | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Cable Exit | Cable Opening | Cable Opening | Thread Size | Thread Size | Type | Color | Ingress Protection | Shell Size - Insert | Applications | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Number of Positions | Orientation | Shell Material | Mounting Feature | Shell Finish | Contact Material | Contact Finish - Mating | Connector Type | Fastening Type | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Bushing Clamp Screws Washers | Aluminum Alloy | Unshielded | Zinc | Metal | 1.657 in | 42.1 mm | 180 ° | 0.709 " | 18 mm | 1 7/16 UNEF-2B | 18 | Cable Clamp | Black | IP67 - Dust Tight Waterproof | 24 28 | |||||||||||||||||

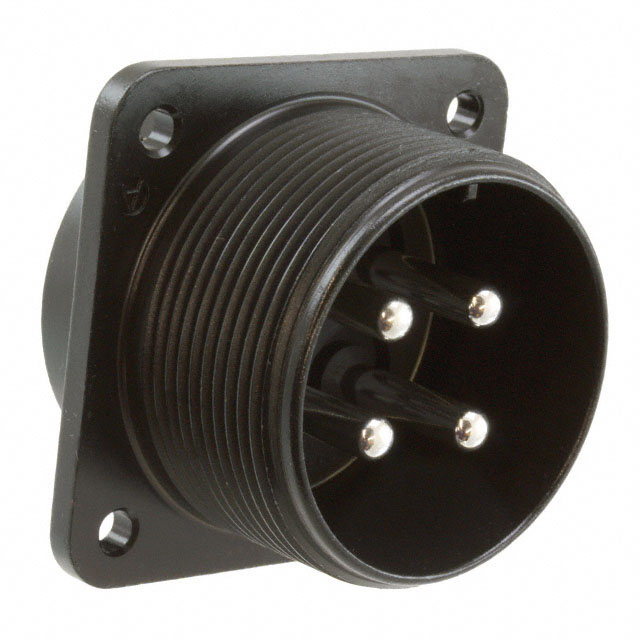

 JAE Electronics | Ground | Metal | 1.299 in | 33 mm | Black | IP67 - Dust Tight Waterproof | Industrial Medical Telecommunications Test Equipment & Measurement | 22 | 22 | -55 C | 125 °C | Silicon Rubber | 4 | N (Normal) | Aluminum Alloy | Flange | Zinc | Copper Alloy | Silver | Receptacle Male Pins | Threaded | 46 A | Panel Mount |
