DAMA Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CONN D-SUB PLG 15P PNL MT CRIMP
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Shell Size, Connector Layout | Current Rating (Amps) | Connector Style | Number of Positions | Number of Rows [custom] | Flange Feature | Connector Type | Contact Type | Contact Finish | Termination | Material Flammability Rating | Mounting Type | Shell Material, Finish | Note | Mating Cycles | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | Polycyclohexylenedimethylene Terephthalate (PCT) | -55 C | 125 °C | White | Copper Alloy | 2 | 7.5 A | D-Sub | 15 | 2 | Housing/Shell (Unthreaded) | Plug Male Pins | Signal | Gold | Crimp | UL94 V-0 | Panel Mount | Brass Yellow Chromate Plated Cadmium | |||||||||
 ITT Cannon, LLC | Thermoplastic | -55 C | 125 °C | D-Sub High Density | 15 | 3 | Housing/Shell (Unthreaded) | Receptacle for Female Contacts | Signal | Free Hanging (In-Line) | Contacts Not Included | 200 | Yellow Chromate Plated Zinc | Steel | (DE E) High Density | 1 | |||||||||||
 ITT Cannon, LLC | Polycyclohexylenedimethylene Terephthalate (PCT) | -55 C | 105 ░C | Black | 2 | D-Sub | 15 | 2 | Cable Side (4-40) | Receptacle for Female Contacts | Signal | Panel Mount | Contacts Not Included | 500 | Yellow Chromate Plated Zinc | Steel | |||||||||||

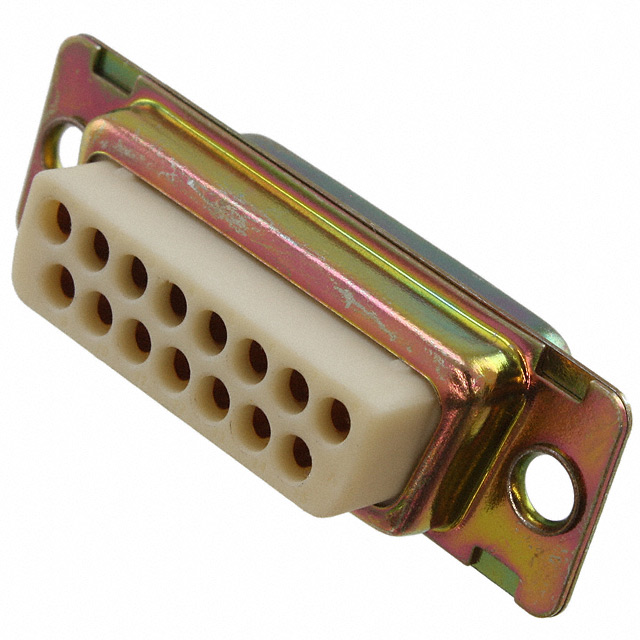

ITT Cannon, LLC | Polycyclohexylenedimethylene Terephthalate (PCT) | -55 C | 150 °C | Black | Copper Alloy | 2 | 7.5 A | D-Sub | 15 | 2 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Signal | Gold | Crimp | UL94 V-0 | Panel Mount | Yellow Chromate Plated Zinc | Steel | ||||||||
ITT Cannon, LLC | Polycyclohexylenedimethylene Terephthalate (PCT) | -55 C | 125 °C | White | Copper Alloy | 2 | 7.5 A | D-Sub | 15 | 2 | Cable Side (4-40) | Plug Male Pins | Signal | Gold | Crimp | UL94 V-0 | Panel Mount | Yellow Chromate Plated Zinc | Steel | ||||||||
ITT Cannon, LLC | Polycyclohexylenedimethylene Terephthalate (PCT) | -55 C | 125 °C | White | Copper Alloy | 2 | 7.5 A | D-Sub | 15 | 2 | Housing/Shell (Unthreaded) | Plug Male Pins | Signal | Gold | Crimp | UL94 V-0 | Panel Mount | Yellow Chromate Plated Zinc | Steel | 50 µin | 1.27 µm | ||||||
ITT Cannon, LLC | Polycyclohexylenedimethylene Terephthalate (PCT) | -55 C | 150 °C | Black | Copper Alloy | 2 | 7.5 A | D-Sub | 15 | 2 | Housing/Shell (Unthreaded) | Plug Male Pins | Signal | Gold | Crimp | UL94 V-0 | Panel Mount | Steel Yellow Chromate Plated Cadmium | 30 Áin | 0.76 Ám | |||||||

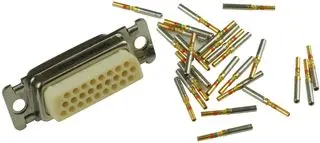

ITT Cannon, LLC | Polycyclohexylenedimethylene Terephthalate (PCT) | -55 C | 150 °C | Black | Copper Alloy | 7.5 A | D-Sub High Density | 26 | 3 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Signal | Gold | Crimp | UL94 V-0 | Panel Mount | Stainless Steel | 2 | 50 µin | 1.27 µm | DA A | ||||||
ITT Cannon, LLC | Polycyclohexylenedimethylene Terephthalate (PCT) | -55 C | 150 °C | Black | Copper Alloy | 7.5 A | D-Sub High Density | 26 | 3 | Housing/Shell (Unthreaded) | Plug Male Pins | Signal | Gold | Crimp | UL94 V-0 | Panel Mount | Stainless Steel | 2 | 30 Áin | 0.76 Ám | DA A | ||||||
ITT Cannon, LLC | Polycyclohexylenedimethylene Terephthalate (PCT) | -55 C | 150 °C | Black | Copper Alloy | 7.5 A | D-Sub High Density | 26 | 3 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Signal | Gold | Crimp | UL94 V-0 | Panel Mount | Steel Tin-Nickel Plated | 2 | 50 µin | 1.27 µm | DA A |
