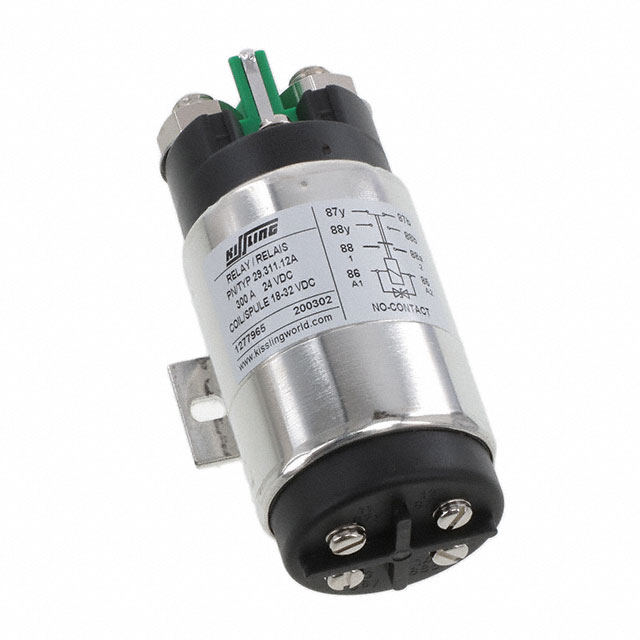

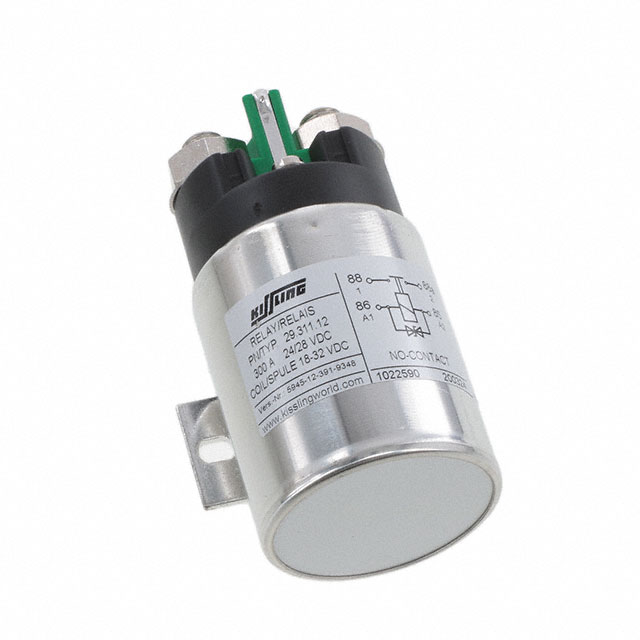

29-311 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
RELAY GEN PURPOSE SPST 300A 28V
| Part | Coil Resistance | Coil Current | Coil Voltage | Relay Type | Coil Type | Operate Time | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Features | Release Time | Contact Material | Must Release Voltage | Load - Max Switching | Mounting Type | Must Operate Voltage | Contact Rating (Current) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 62 Ohms | 451.6 mA | 28 VDC | General Purpose | Non Latching | 40 ms | SPST-NO (DM) (1 Form X) | 85 °C | -40 °C | Diode | 20 ms | Silver Tin Oxide (AgSnO) | 4 VDC | 10 W | Chassis Mount | 18 VDC | 300 A | Screw Terminal |
 TE Connectivity Raychem Cable Protection | 62 Ohms | 451.6 mA | 28 VDC | General Purpose | Non Latching | 40 ms | SPST-NO (DM) (1 Form X) | 85 °C | -40 °C | Diode | 20 ms | Silver Tin Oxide (AgSnO) | 4 VDC | 10 W | Chassis Mount | 18 VDC | 300 A | Screw Terminal |
