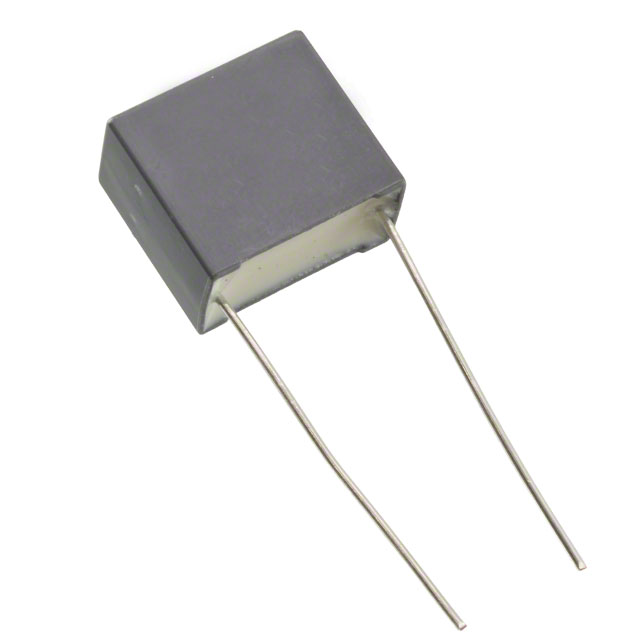

R75LI Series

Manufacturer: KEMET

Catalog

CAP FILM 0.15UF 10% 560VDC RAD

Part	Mounting Type	Package / Case	Tolerance	Applications	Voltage Rating - AC	Termination	Dielectric Material	Capacitance	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
KEMET R75LI31504000K	Through Hole	Radial	10 %	DC Filtering DC Link	250 V	PC Pins	Polypropylene (PP) Metallized	0.15 ÁF	15 mm	0.591 in	0.295 in	0.709 in	18 mm	7.5 mm	560 V	-55 C	105 ░C
KEMET R75LI33304000K	Through Hole	Radial	10 %	DC Filtering DC Link	250 V	PC Pins	Polypropylene (PP) Metallized	0.33 µF	15 mm	0.591 in	0.394 in	0.709 in	18 mm	10 mm	560 V	-55 C	105 ░C	16.1 mm	0.634 "
KEMET R75LI32204000K	Through Hole	Radial	10 %	DC Filtering DC Link	250 V	PC Pins	Polypropylene (PP) Metallized	0.22 µF	15 mm	0.591 in	0.335 in	0.709 in	18 mm	8.5 mm	560 V	-55 C	105 ░C		0.575 in	14.6 mm
