Schaffner FN9266 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

AC POWER ENTRY MODULES 1A 40MH 250VAC W/MNT FLANGES

Part	Connector Style	Mounting Type	Current Rating - Filter	Filter Type	Termination	Termination	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Ingress Protection	Switch Features	Connector Type	Material Flammability Rating	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Features

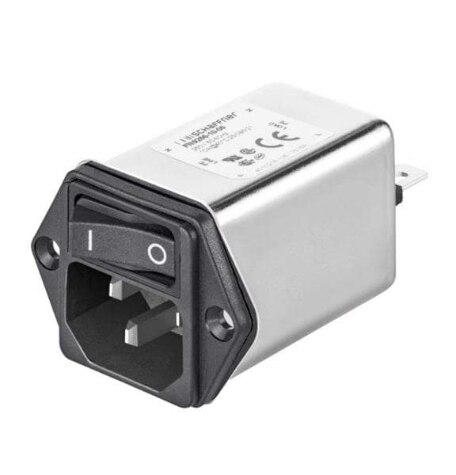

TE Connectivity AMP Connectors FN9266-1-06	IEC 320-C14	Flange Panel Mount	1 A	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	33 mm	29 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Receptacle Male Blades - Module	UL94 V-0

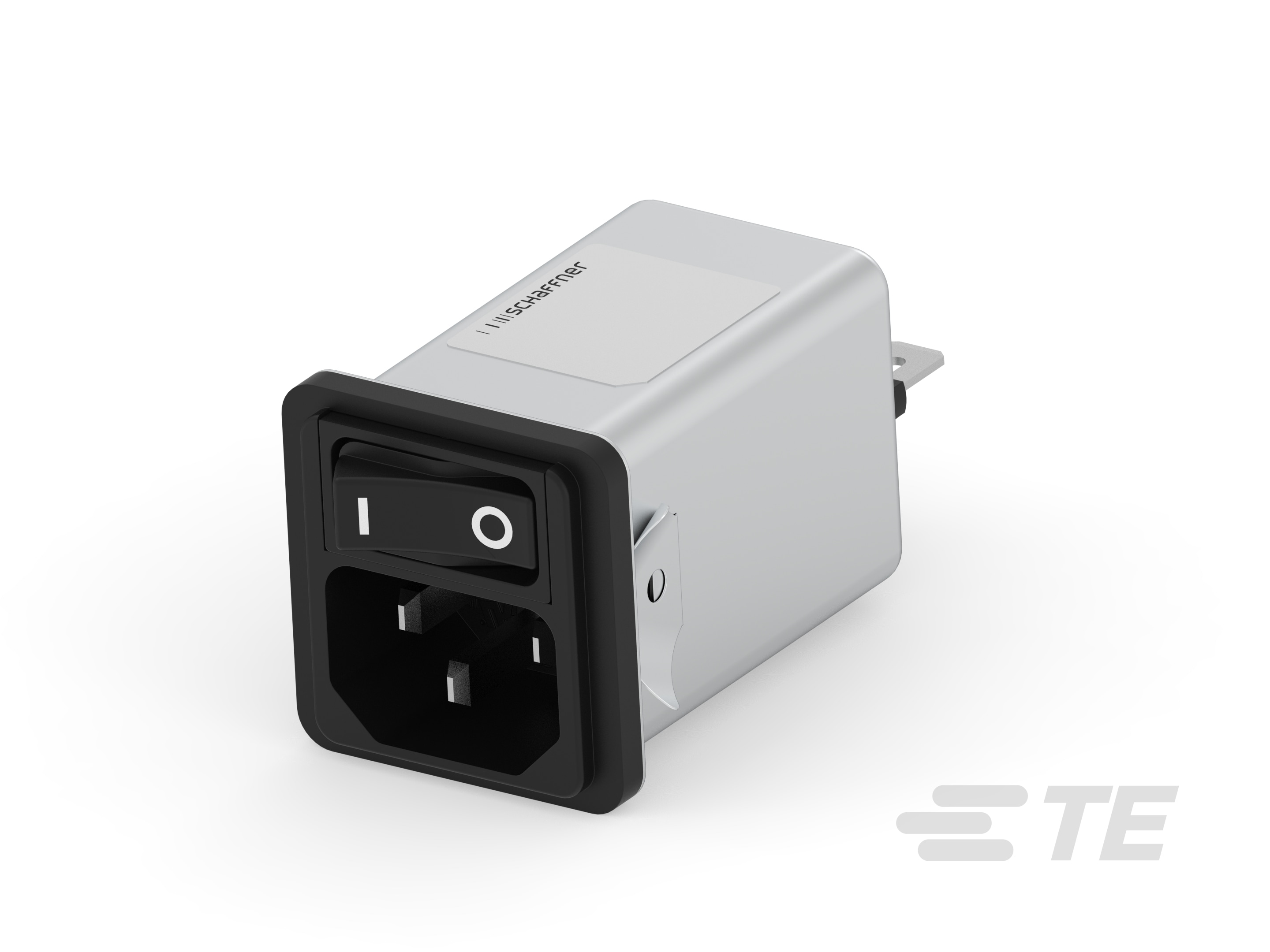

TE Connectivity AMP Connectors FN9266SA-10-06	IEC 320-C14	Panel Mount Snap-In	10 A	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	33 mm	29.5 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Receptacle Male Blades - Module	UL94 V-0	1.5 mm	0.6 mm	0.059 in	0.024 in	Safety Version

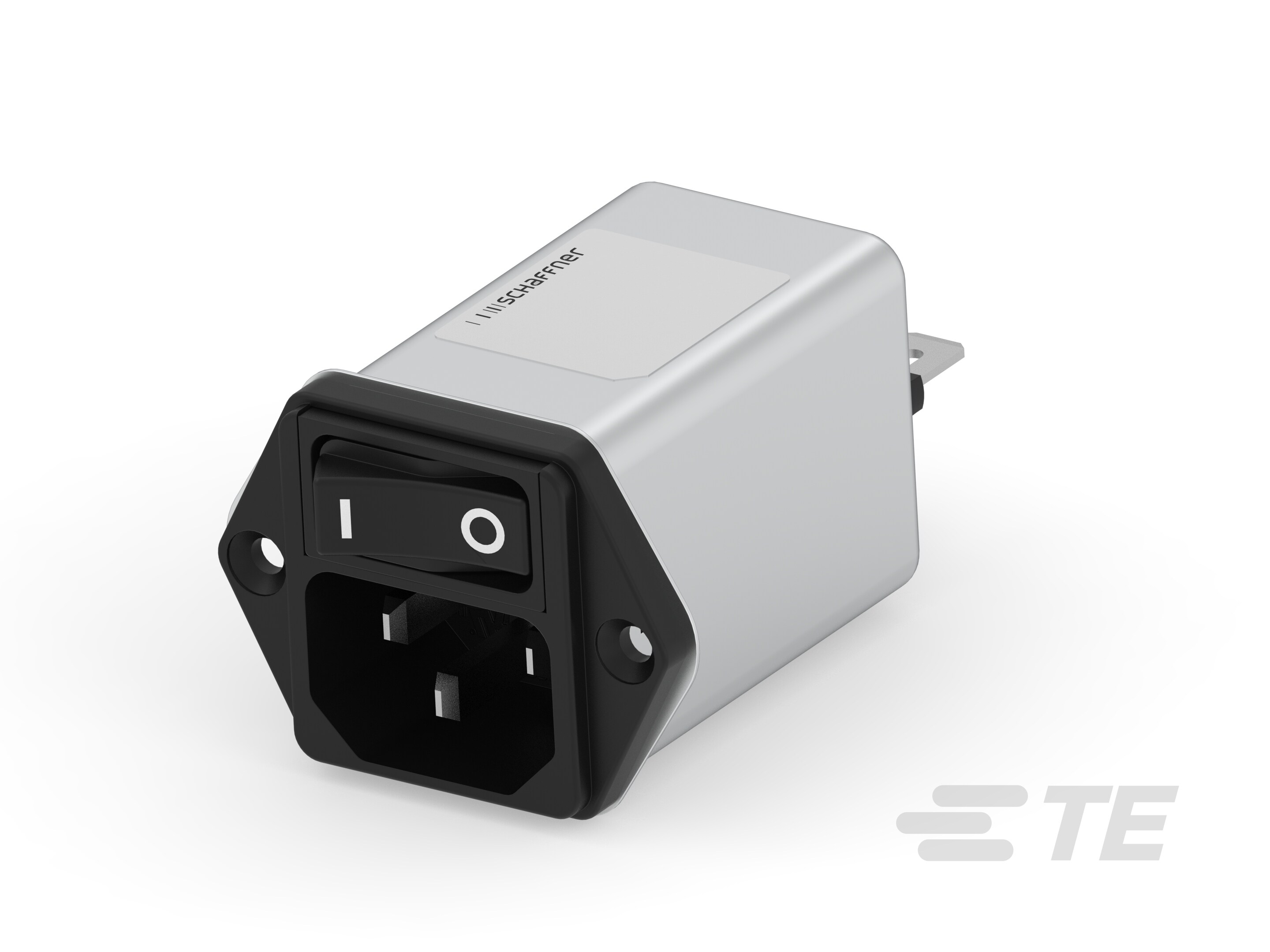

TE Connectivity AMP Connectors FN9266A-1-06	IEC 320-C14	Flange Panel Mount	1 A	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	33 mm	29 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Receptacle Male Blades - Module	UL94 V-0					Safety Version

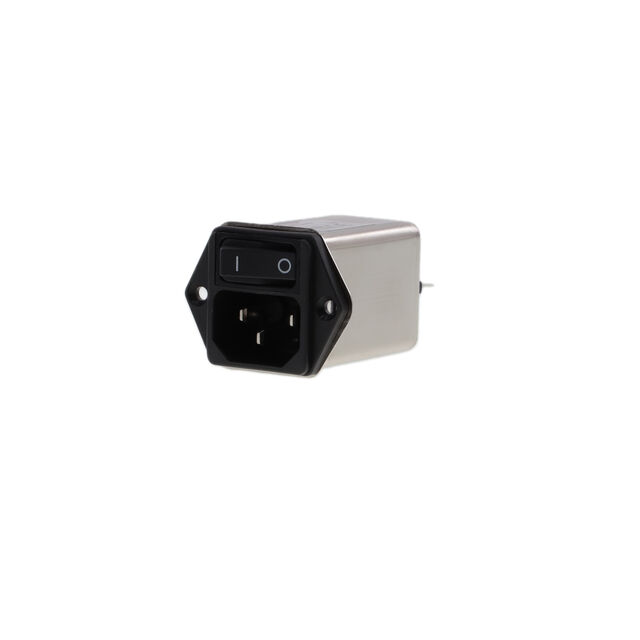

TE Connectivity AMP Connectors FN9266A-10-06	IEC 320-C14	Flange Panel Mount	10 A	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	33 mm	29 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Receptacle Male Blades - Module	UL94 V-0					Safety Version
TE Connectivity AMP Connectors FN9266B-10-06	IEC 320-C14	Flange Panel Mount	10 A	Filtered (EMI RFI) - Commercial Medical	6.3 mm	Quick Connect	0.25 "	33 mm	29 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Receptacle Male Blades - Module	UL94 V-0
TE Connectivity AMP Connectors FN9266SA-6-06	IEC 320-C14	Panel Mount Snap-In	6 A	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	33 mm	29.5 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Receptacle Male Blades - Module	UL94 V-0	1.5 mm	0.6 mm	0.059 in	0.024 in	Safety Version
TE Connectivity AMP Connectors FN9266B-10-06	IEC 320-C14	Flange Panel Mount	10 A	Filtered (EMI RFI) - Commercial Medical	6.3 mm	Quick Connect	0.25 "	33 mm	29 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Receptacle Male Blades - Module	UL94 V-0

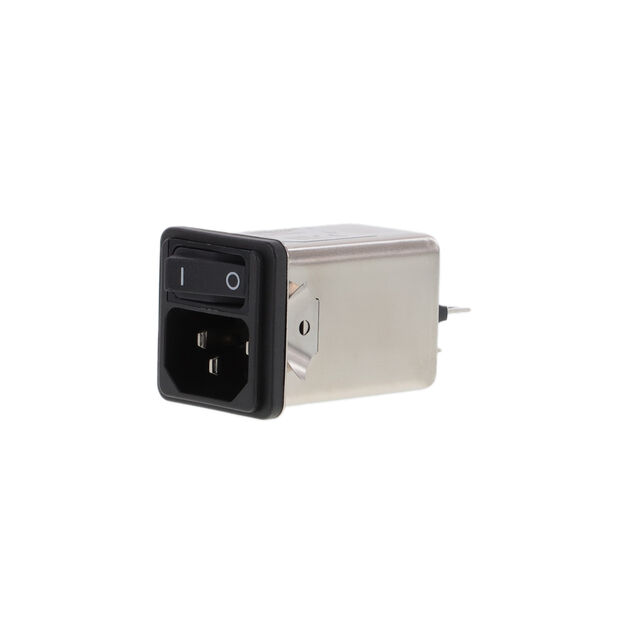

TE Connectivity AMP Connectors FN9266SA-1-06	IEC 320-C14	Panel Mount Snap-In	1 A	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	33 mm	29.5 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Receptacle Male Blades - Module	UL94 V-0	1.5 mm	0.6 mm	0.059 in	0.024 in	Safety Version
TE Connectivity AMP Connectors FN9266SA-1-06	IEC 320-C14	Panel Mount Snap-In	1 A	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	33 mm	29.5 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Receptacle Male Blades - Module	UL94 V-0	1.5 mm	0.6 mm	0.059 in	0.024 in	Safety Version
TE Connectivity AMP Connectors FN9266A-10-06	IEC 320-C14	Flange Panel Mount	10 A	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	33 mm	29 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Receptacle Male Blades - Module	UL94 V-0					Safety Version
