MAX14775 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
IC TRANSCEIVER HALF 1/1 8TDFN
| Part | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Duplex | Receiver Hysteresis | Protocol | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Mounting Type | Type | Data Rate | Package / Case [y] | Package / Case [x] | Function | Contents | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 8-WDFN Exposed Pad | 5.5 V | 3 V | Half | 250 mV | RS422 RS485 | 125 °C | -40 °C | 8-TDFN (3x3) | Surface Mount | Transceiver | 20 Mbps | ||||||
 Analog Devices Inc./Maxim Integrated | 8-SOIC | 5.5 V | 3 V | Half | 250 mV | RS422 RS485 | 125 °C | -40 °C | 8-SOIC | Surface Mount | Transceiver | 20 Mbps | 3.9 mm | 0.154 in | ||||

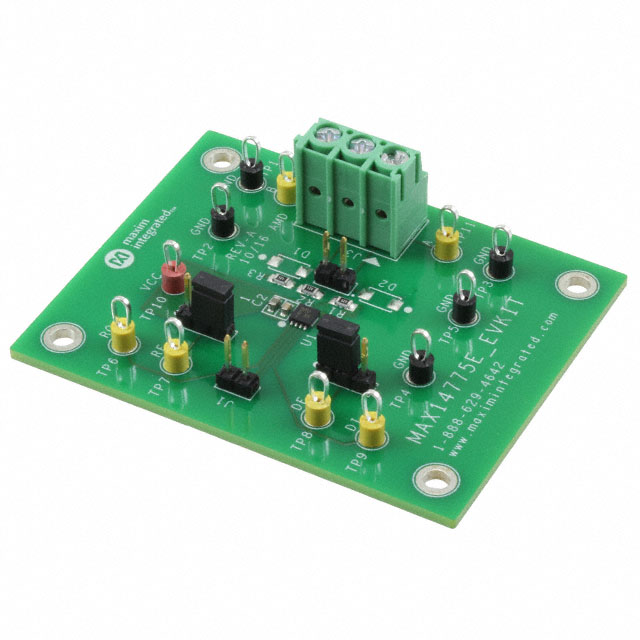

 Analog Devices Inc./Maxim Integrated | Interface | RS-422 RS-485 Transceiver | Board(s) | Board(s) | MAX14775E MAX14776E | |||||||||||||
 Analog Devices Inc./Maxim Integrated | 8-WDFN Exposed Pad | 5.5 V | 3 V | Half | 250 mV | RS422 RS485 | 125 °C | -40 °C | 8-TDFN (3x3) | Surface Mount | Transceiver | 20 Mbps |
