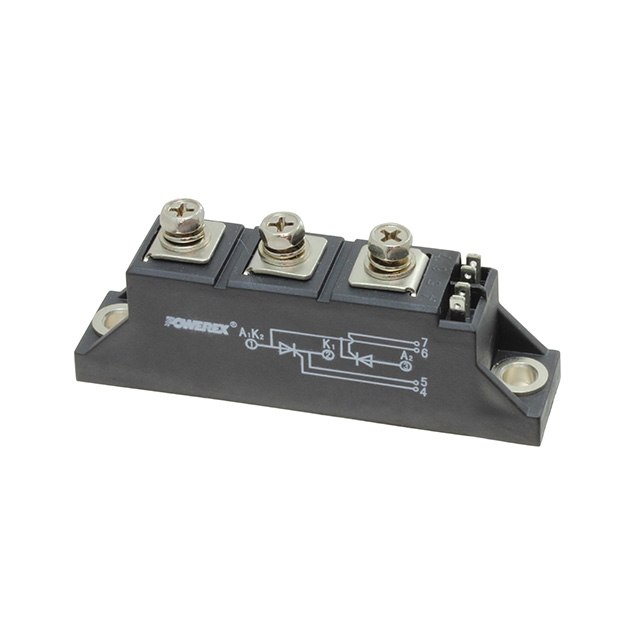

CD431899 Series
Manufacturer: Powerex Inc.
Beta
⌘K
SCR MODULE DUAL
| Part | Structure | Current - On State (It (AV)) (Max) [Max] | Mounting Type | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - On State (It (RMS)) (Max) [Max] | Package / Case | Number of SCRs, Diodes | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] | Current - Hold (Ih) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Powerex Inc. | Series Connection - All SCRs | 110 A | Chassis Mount | 2400 A | 173 A | POW-R-BLOK™ Module | 2 SCRs | 1.8 kV | 2.5 V | 100 mA | 150 mA | -40 C | 125 °C |
