SN74LVC11A Series

Three-channel three-input 1.1V-to-3.6V AND gates with 24mA drive strength

Catalog

Three-channel three-input 1.1V-to-3.6V AND gates with 24mA drive strength

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Current - Quiescent (Max) [Max]	Input Logic Level - High [Max] [custom]	Input Logic Level - High [Min] [custom]	Number of Circuits	Max Propagation Delay @ V, Max CL	Current - Output High, Low	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Number of Inputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Logic Type	Package / Case [custom]	Package / Case [custom]

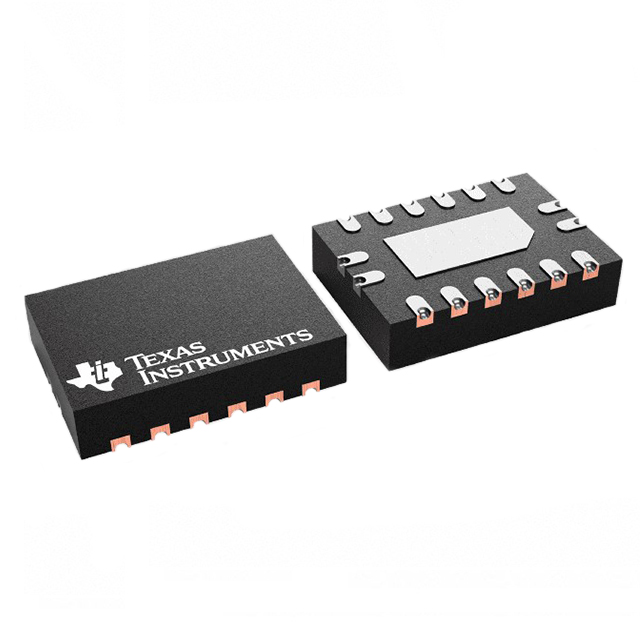

Texas Instruments SN74LVC11ABQAR	1.2 V	3.6 V	14-WFQFN Exposed Pad	40 µA	2 V	0.78 V	3	4.1 ns	24 mA	0.42 V	0.8 V	3	Surface Mount	125 °C	-40 °C	14-WQFN (3x2.5)	AND Gate
Texas Instruments SN74LVC11APWR	1.2 V	3.6 V	14-TSSOP	40 µA	2 V	0.78 V	3	4.1 ns	24 mA	0.42 V	0.8 V	3	Surface Mount	125 °C	-40 °C	14-TSSOP	AND Gate	0.173 "	4.4 mm

Catalog

Three-channel three-input 1.1V-to-3.6V AND gates with 24mA drive strength

Key Features

• Operating range from 1.1V to 3.6V5.5V tolerant input pinsSupports standard pinoutsLatch-up performance exceeds 250mAper JESD 17ESD protection exceeds JESD 222000V Human-Body Model (A114-A)1000V Charged-Device Model (C101)Operating range from 1.1V to 3.6V5.5V tolerant input pinsSupports standard pinoutsLatch-up performance exceeds 250mAper JESD 17ESD protection exceeds JESD 222000V Human-Body Model (A114-A)1000V Charged-Device Model (C101)

Description

This device contains three independent 3-input AND gates. Each gate performs the Boolean function Y = A × B × C in positive logic. This device contains three independent 3-input AND gates. Each gate performs the Boolean function Y = A × B × C in positive logic.
