2823351 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

14P,2MM,SHRD HDR,DRRT,2.8,SN,TB

Part	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Type	Current Rating (Amps)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Shape	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Connector Type	Insulation Color	Insulation Height	Insulation Height	Insulation Material	Voltage Rating	Contact Finish Thickness - Mating
TE Connectivity Raychem Cable Protection 1-2823351-4	Through Hole Right Angle	0.079 in	2 mm	Solder	0.11 in	2.8 mm	Shrouded - 2 Wall	0.079 in	2 mm	14	Male Pin	2 A	Phosphor Bronze	-40 °C	105 ░C	All	Square	2	0.3 µm	12 µin	Board to Board Cable	Latch Holder	118.1 µin	3 µm	UL94 V-0	Tin	4 mm	0.157 in	Header	Black	0.303 in	7.7 mm	Thermoplastic	125 VAC

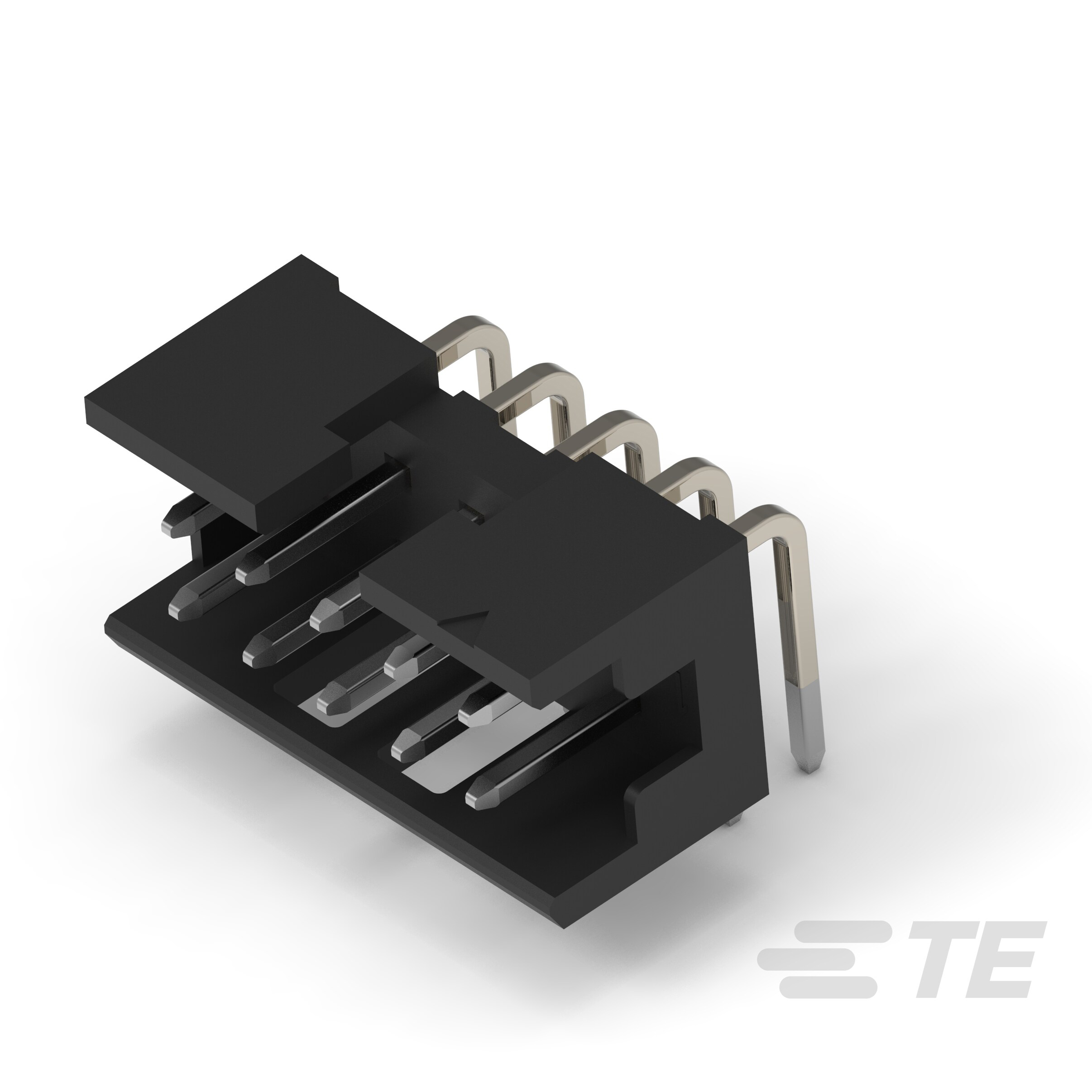

TE Connectivity Raychem Cable Protection 1-2823351-0	Through Hole Right Angle	0.079 in	2 mm	Solder	0.11 in	2.8 mm	Shrouded - 2 Wall	0.079 in	2 mm	10	Male Pin	2 A	Phosphor Bronze	-40 °C	105 ░C	All	Square	2	0.3 µm	12 µin		Detent Lock	3 Ám		UL94 V-0	Tin	4 mm	0.157 in	Header	Black	0.244 in	6.2 mm	Thermoplastic	125 VAC	118.1 Áin
TE Connectivity Raychem Cable Protection 2823351-6	Through Hole Right Angle	0.079 in	2 mm	Solder	0.11 in	2.8 mm	Shrouded - 2 Wall	0.079 in	2 mm	6	Male Pin	2 A	Phosphor Bronze	-40 °C	105 ░C	All	Square	2	0.3 µm	12 µin		Detent Lock	118.1 µin	3 µm	UL94 V-0	Tin	4 mm	0.157 in	Header	Black	0.244 in	6.2 mm	Thermoplastic	125 VAC
TE Connectivity Raychem Cable Protection 4-2823351-0	Through Hole Right Angle	0.079 in	2 mm	Solder	0.11 in	2.8 mm	Shrouded - 2 Wall	0.079 in	2 mm	40	Male Pin	2 A	Phosphor Bronze	-40 °C	105 ░C	All	Square	2	0.3 µm	12 µin		Detent Lock	118.1 µin	3 µm	UL94 V-0	Tin	4 mm	0.157 in	Header	Black	0.244 in	6.2 mm	Thermoplastic	125 VAC
TE Connectivity Raychem Cable Protection 5-2823351-0	Through Hole Right Angle	0.079 in	2 mm	Solder	0.11 in	2.8 mm	Shrouded - 2 Wall	0.079 in	2 mm	50	Male Pin	2 A	Phosphor Bronze	-40 °C	105 ░C	All	Square	2	0.3 µm	12 µin		Detent Lock	118.1 µin	3 µm	UL94 V-0	Tin	4 mm	0.157 in	Header	Black	0.244 in	6.2 mm	Thermoplastic	125 VAC

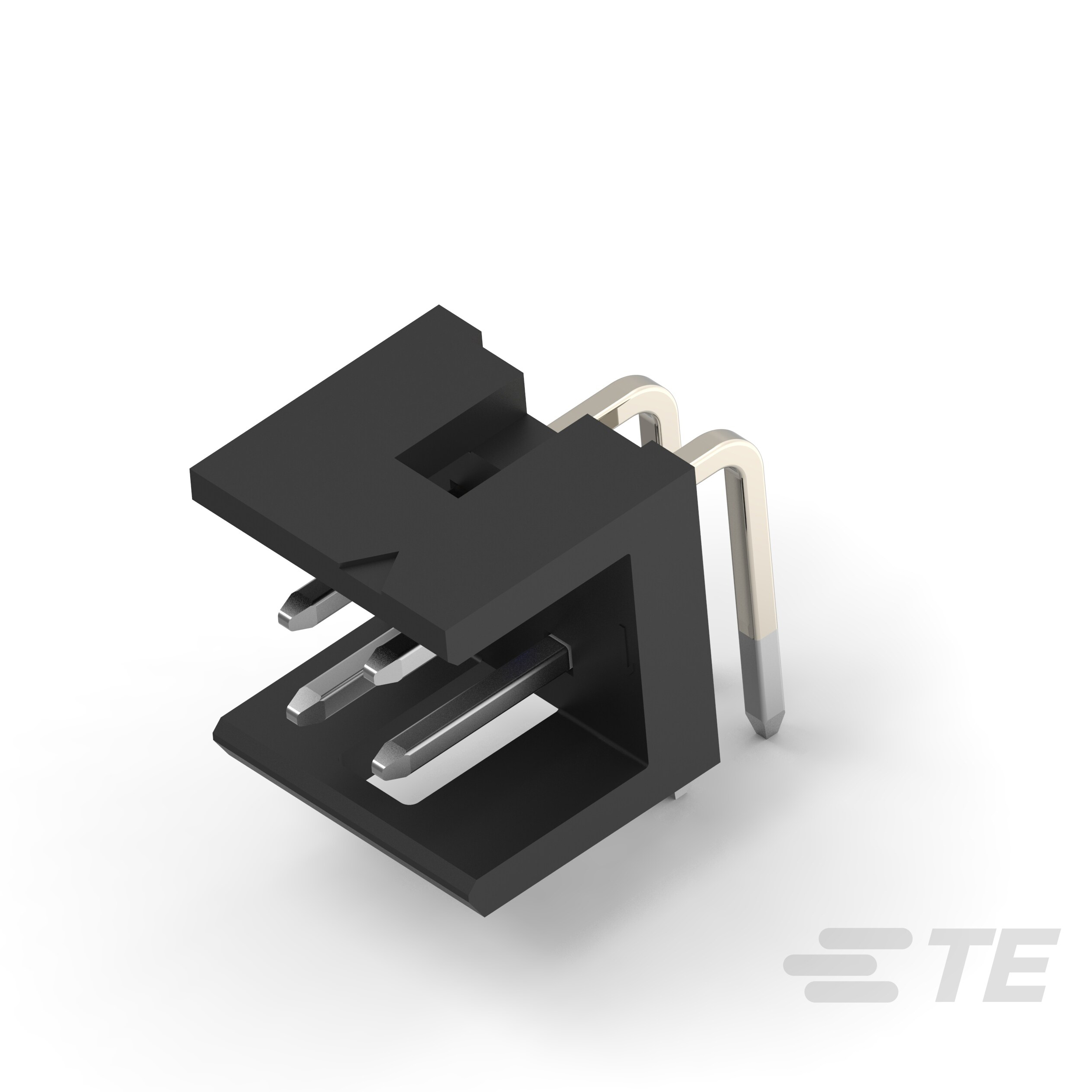

TE Connectivity Raychem Cable Protection 2823351-4	Through Hole Right Angle	0.079 in	2 mm	Solder	0.11 in	2.8 mm	Shrouded - 2 Wall	0.079 in	2 mm	4	Male Pin	2 A	Phosphor Bronze	-40 °C	105 ░C	All	Square	2	0.3 µm	12 µin		Detent Lock	118.1 µin	3 µm	UL94 V-0	Tin	4 mm	0.157 in	Header	Black	0.244 in	6.2 mm	Thermoplastic	125 VAC

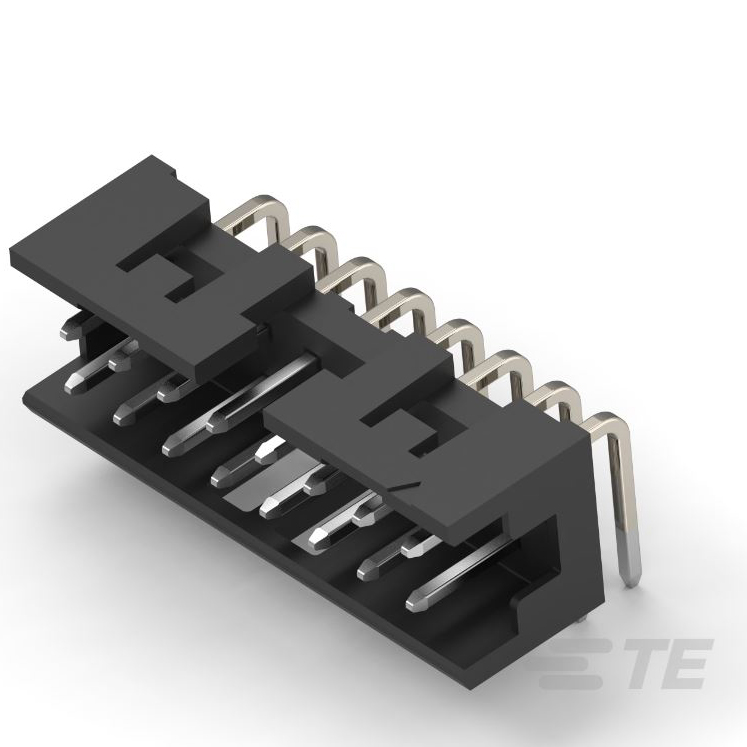

TE Connectivity Raychem Cable Protection 2-2823351-0	Through Hole Right Angle	0.079 in	2 mm	Solder	0.11 in	2.8 mm	Shrouded - 2 Wall	0.079 in	2 mm	20	Male Pin	2 A	Phosphor Bronze	-40 °C	105 ░C	All	Square	2	0.3 µm	12 µin		Detent Lock	118.1 µin	3 µm	UL94 V-0	Tin	4 mm	0.157 in	Header	Black	0.244 in	6.2 mm	Thermoplastic	125 VAC
TE Connectivity Raychem Cable Protection 2-2823351-4	Through Hole Right Angle	0.079 in	2 mm	Solder	0.11 in	2.8 mm	Shrouded - 2 Wall	0.079 in	2 mm	24	Male Pin	2 A	Phosphor Bronze	-40 °C	105 ░C	All	Square	2	0.3 µm	12 µin		Detent Lock	118.1 µin	3 µm	UL94 V-0	Tin	4 mm	0.157 in	Header	Black	0.244 in	6.2 mm	Thermoplastic	125 VAC
TE Connectivity Raychem Cable Protection 1-2823351-8	Through Hole Right Angle	0.079 in	2 mm	Solder	0.11 in	2.8 mm	Shrouded - 2 Wall	0.079 in	2 mm	18	Male Pin	2 A	Phosphor Bronze	-40 °C	105 ░C	All	Square	2	0.3 µm	12 µin		Detent Lock	118.1 µin	3 µm	UL94 V-0	Tin	4 mm	0.157 in	Header	Black	0.244 in	6.2 mm	Thermoplastic	125 VAC
TE Connectivity Raychem Cable Protection 3-2823351-0	Through Hole Right Angle	0.079 in	2 mm	Solder	0.11 in	2.8 mm	Shrouded - 2 Wall	0.079 in	2 mm	30	Male Pin	2 A	Phosphor Bronze	-40 °C	105 ░C	All	Square	2	0.3 µm	12 µin		Detent Lock	118.1 µin	3 µm	UL94 V-0	Tin	4 mm	0.157 in	Header	Black	0.244 in	6.2 mm	Thermoplastic	125 VAC
