2301826 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

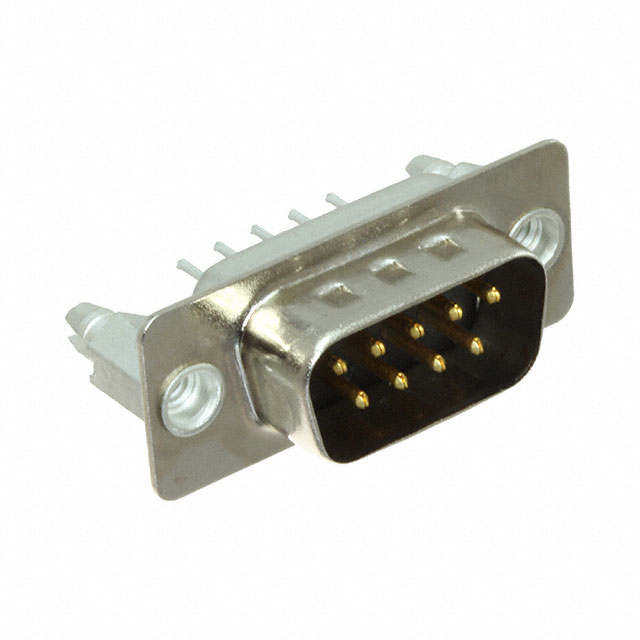

CONN D-SUB PLUG 9POS VERT SLDR
| Part | Connector Style | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Features | Connector Type | Number of Rows | Mounting Type | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Contact Finish | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Color | Current Rating (Amps) | Contact Material | Flange Feature | Dielectric Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | D-Sub | 250 VDC | 105 ░C | -55 °C | Solder | Board Lock Grounding Indents | Male Pins Plug | 2 | Through Hole | 9 | DE E | 1 | Signal | Gold | Steel Tin-Nickel Plated | 15 µin | 0.38 µm | Black | 1.5 A | Brass | 4-40 Board Side | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 |
