V7-2B2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
V BASIC SWITCH : ROHS COMPLIANT: YES
| Part | Current Rating (Amps) | Operating Force | Mechanical Life | Release Force | Actuator Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Circuit | Voltage Rating - AC | Voltage Rating - DC | Pretravel | Pretravel | Overtravel [custom] | Overtravel [custom] | Electrical Life | Differential Travel [x] | Differential Travel [x] | Operating Position | Operating Position | Mounting Type | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 11 A 500 mA | 75 gf | 10000000 Cycles | 10 gf | Round (Pin Plunger) | Quick Connect | 85 °C | -40 C | Off-Mom | SPST-NO | 125 V | 125 VDC | 1.2 mm | 0.047 in | 1.27 mm | 0.05 " | 100000 Cycles | 0.01 in | 0.25 mm | 14.7 mm | 0.579 in | Chassis Mount | ||
 Honeywell Sensing and Productivity Solutions | 11 A 500 mA | 75 gf | 10000000 Cycles | Round (Pin Plunger) | Quick Connect | 85 °C | -40 C | Off-Mom | SPST-NO | 125 V | 125 VDC | 1.2 mm | 0.047 in | 1.27 mm | 0.05 " | 0.01 in | 0.25 mm | 14.7 mm | 0.579 in | Chassis Mount | ||||
 Honeywell Sensing and Productivity Solutions | 11 A 500 mA | 75 gf | 10000000 Cycles | 10 gf | Round (Pin Plunger) | Quick Connect - 0.250" (6.3mm) | 85 °C | -40 C | Off-Mom | SPST-NO | 125 V | 125 VDC | 1.2 mm | 0.047 in | 1.27 mm | 0.05 " | 100000 Cycles | 0.01 in | 0.25 mm | 14.7 mm | 0.579 in | Chassis Mount | ||
 Honeywell Sensing and Productivity Solutions | 11 A 500 mA | 75 gf | 10000000 Cycles | Round (Pin Plunger) | Quick Connect - 0.250" (6.3mm) | 85 °C | -40 C | Off-Mom | SPST-NO | 125 V | 125 VDC | 1.2 mm | 0.047 in | 1.27 mm | 0.05 " | 0.01 in | 0.25 mm | 14.7 mm | 0.579 in | Chassis Mount | ||||

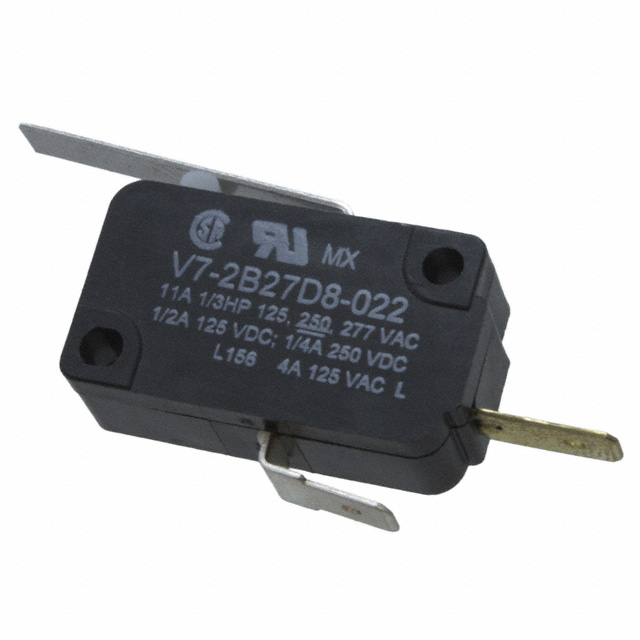

 Honeywell Sensing and Productivity Solutions | 11 A 500 mA | 41 gf | 10000000 Cycles | 3 gf | Lever Straight | Quick Connect | 85 °C | -40 C | Off-Mom | SPST-NO | 125 V | 125 VDC | 3 mm | 0.12 in | 1.73 mm | 0.068 " | 100000 Cycles | 15.2 mm | 0.6 in | Chassis Mount | 0.76 mm | 0.03 in |
