503960 Series
Manufacturer: Molex
Beta
⌘K

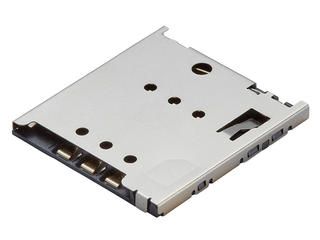

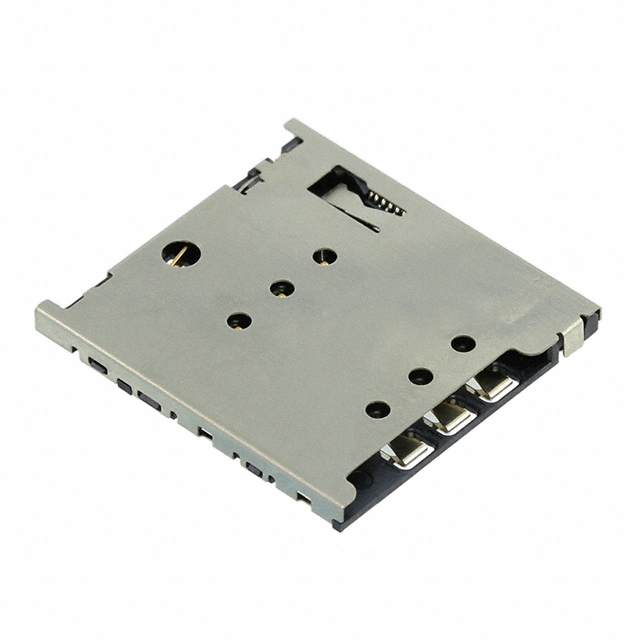

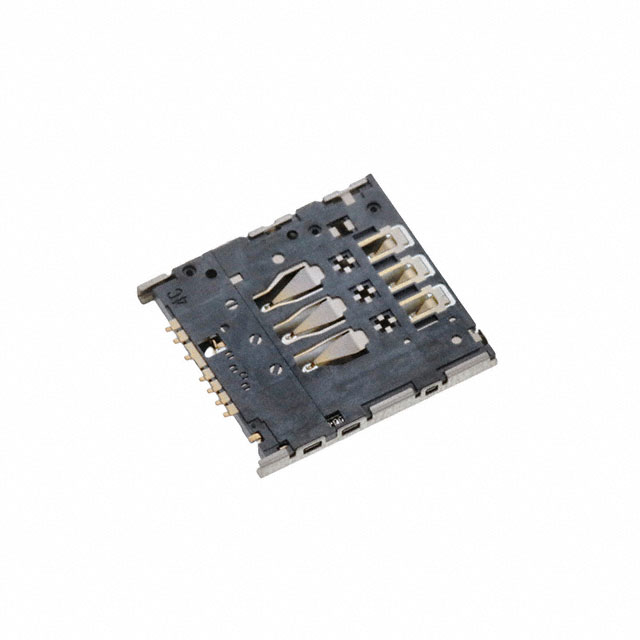

1.42MM HEIGHT MICRO-SIM CARD CONNECTOR, 1.00MM PITCH, PUSH-PUSH, SURFACE MOUNT, NORMAL MOUNT, WITH DETECT SWITCH, STAINLESS STEEL SHELL, 6 CIRCUITS
| Part | Height Above Board [z] | Height Above Board [z] | Contact Finish | Features | Mounting Type | Insertion, Removal Method | Number of Positions | Mounting Feature | Contact Finish Thickness | Contact Finish Thickness | Card Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.056 in | 1.42 mm | Gold | Switch | Surface Mount Right Angle | Push In Push Out | 8 (6 + 2) | Normal Standard - Top | 0.51 µm | 20 µin | Micro SIM | Connector and Ejector |
 Molex | 0.056 in | 1.42 mm | Gold | Switch | Surface Mount Right Angle | Push In Push Out | 8 (6 + 2) | Normal Standard - Top | 0.51 µm | 20 µin | Micro SIM | Connector and Ejector |
