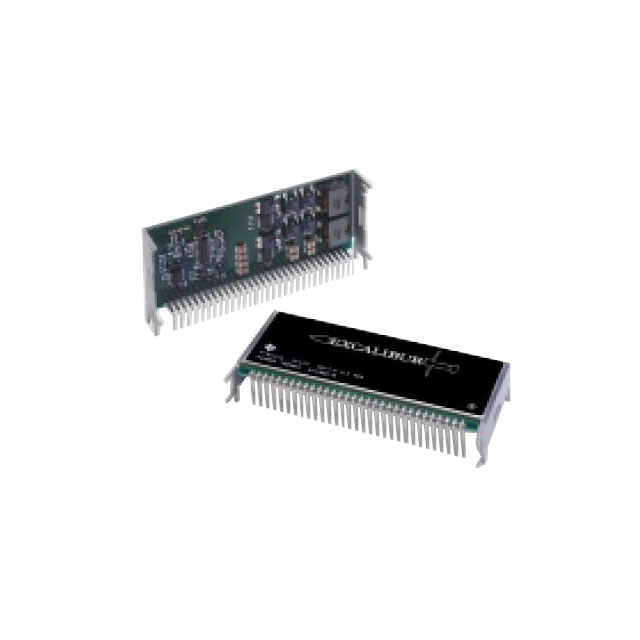

PT81 Series

Catalog

DC DC CONVERTER 1.7-4V 30A

Part	Current - Output (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications	Voltage - Input (Max) [Max]	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Type

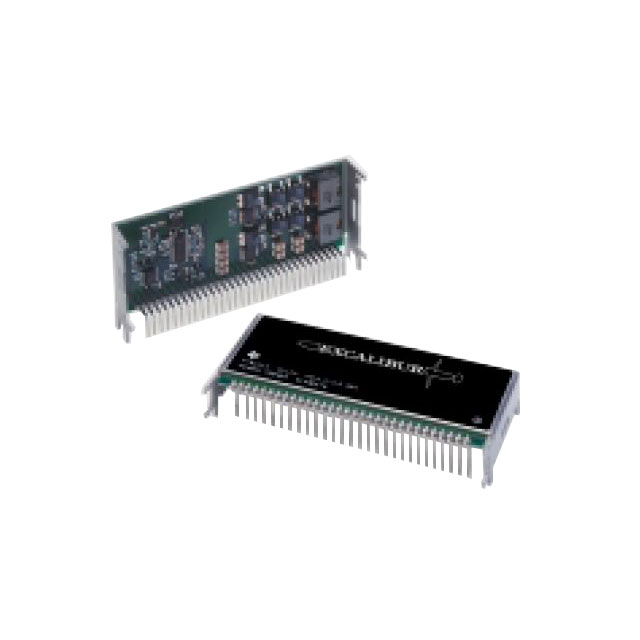

Texas Instruments PT8139C	30 A	31-SMD Module	85 °C	-40 °C	91 %	ITE (Commercial)	13.2 V	1	Surface Mount	10.8 V	1.7 V	4 V	Non-Isolated PoL Module
Texas Instruments PT8139A	30 A	31-SIP Module	85 °C	-40 °C	91 %	ITE (Commercial)	13.2 V	1	Through Hole Right Angle	10.8 V	1.7 V	4 V	Non-Isolated PoL Module

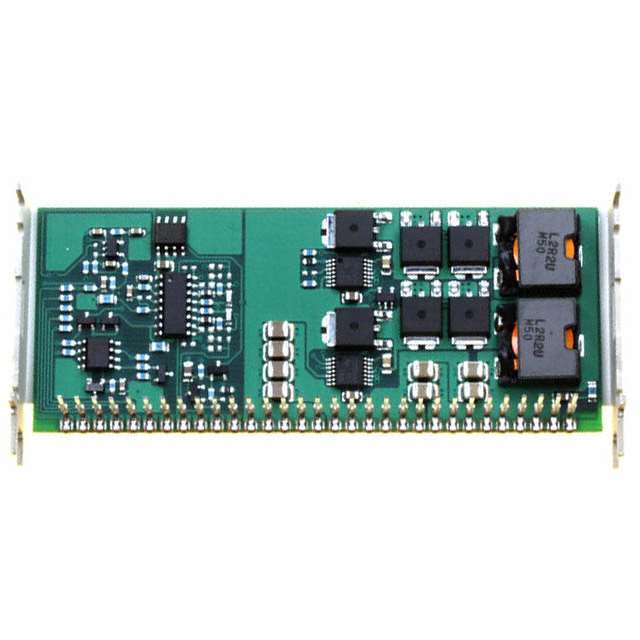

Texas Instruments PT8122A	30 A	31-SIP Module	85 °C	-40 °C	84 %	ITE (Commercial)	13.2 V	1	Through Hole Right Angle	10.8 V	1.075 V	1.85 V	Non-Isolated PoL Module
Texas Instruments PT8123A	30 A	31-SIP Module	85 °C	-40 °C		ITE (Commercial)	13.2 V	1	Through Hole Right Angle	10.8 V	0.8 V	1.575 V	Non-Isolated PoL Module
Texas Instruments PT8103C	40 A	31-SMD Module	85 °C	-40 °C	86 %	ITE (Commercial)	3.6 V	1	Surface Mount	3.1 V	1.075 V	1.85 V	Non-Isolated PoL Module
Texas Instruments PT8125N	28 A	31-SIP Module	85 °C	-40 °C	93 %	ITE (Commercial)	13.2 V	1	Through Hole	10.8 V	4.5 V	7.6 V	Non-Isolated PoL Module
Texas Instruments PT8123C	30 A	31-SMD Module	85 °C	-40 °C		ITE (Commercial)	13.2 V	1	Surface Mount	10.8 V	0.8 V	1.575 V	Non-Isolated PoL Module
Texas Instruments PT8125C	28 A	31-SMD Module	85 °C	-40 °C	93 %	ITE (Commercial)	13.2 V	1	Surface Mount	10.8 V	4.5 V	7.6 V	Non-Isolated PoL Module
Texas Instruments PT8102N	40 A	31-SIP Module	85 °C	-40 °C	85 %	ITE (Commercial)	5.5 V	1	Through Hole	4.5 V	1.075 V	1.85 V	Non-Isolated PoL Module
Texas Instruments PT8121A	30 A	31-SIP Module	85 °C	-40 °C	91 %	ITE (Commercial)	13.2 V	1	Through Hole Right Angle	10.8 V	1.3 V	3.5 V	Non-Isolated PoL Module
