858-X08 Series
Manufacturer: NorComp Inc.
Beta
⌘K

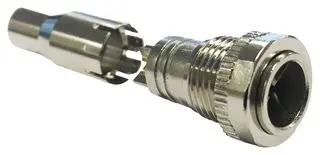

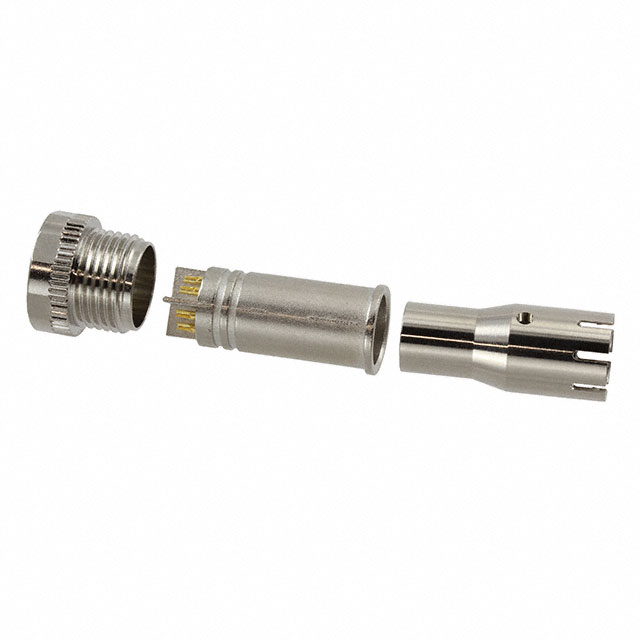

SENSOR CONNECTOR, VULCON SERIES, M12, MALE, 8 POSITIONS, SOLDER PIN, STRAIGHT CABLE MOUNT
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Backshell Material, Plating | Contact Material | Insert Material | Number of Positions | Shielding | Color | Features | Orientation [x] | Connector Type | Mounting Type | Fastening Type | Shell Size - Insert | Voltage Rating | Material Flammability Rating | Primary Material | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Cable Opening | Cable Opening | Shell Material | Ingress Protection | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 0.25 µm | 10 µin | Industrial Medical | Brass Nickel | Brass | Polybutylene Terephthalate (PBT) | 8 | Shielded | Silver | Backshell | X | Receptacle Male Pins | Free Hanging (In-Line) | Threaded | M12-8 | 50 VAC 60 VDC | UL94 V-0 | Metal | 0.5 A | 85 °C | -40 C | Nickel | 9.5 mm | 0.374 in | Zinc Alloy | IP67 - Dust Tight Waterproof | Gold |
